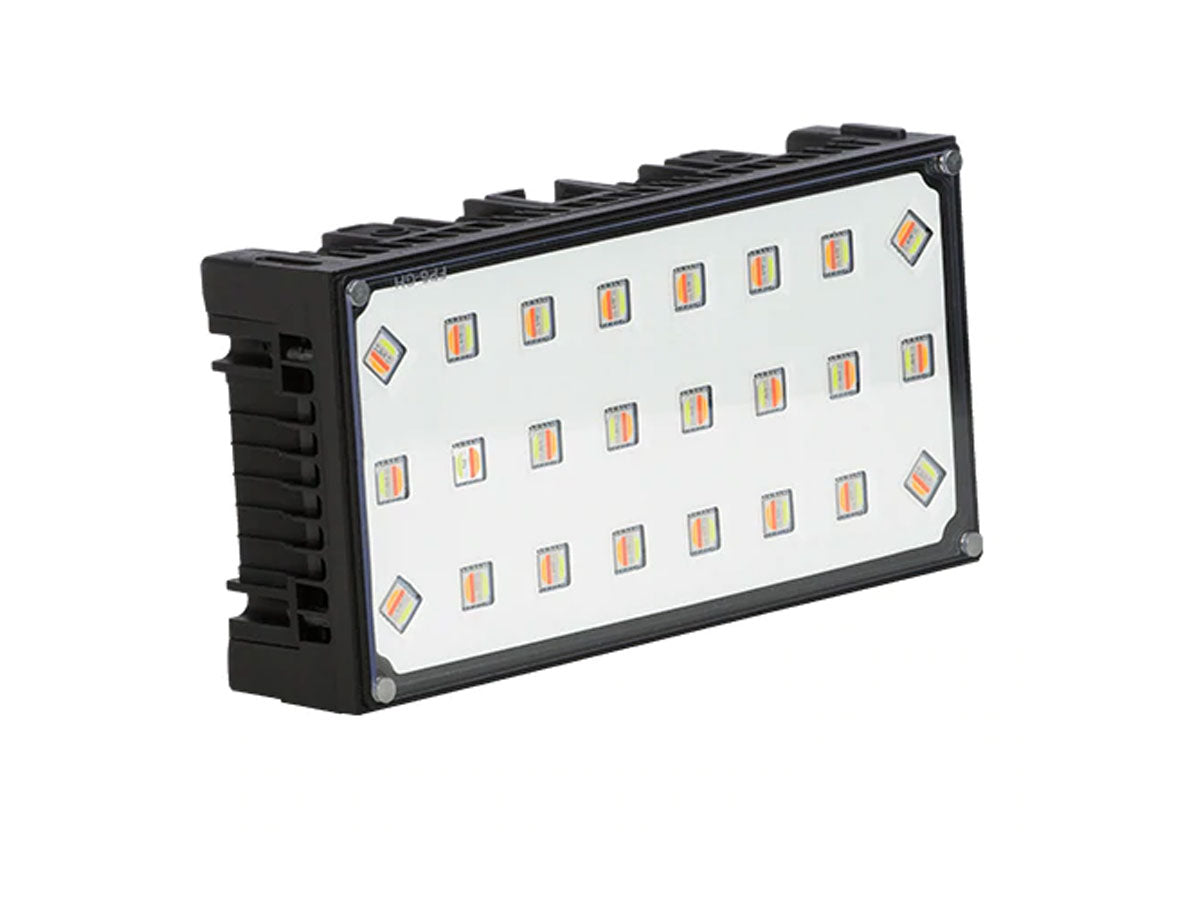

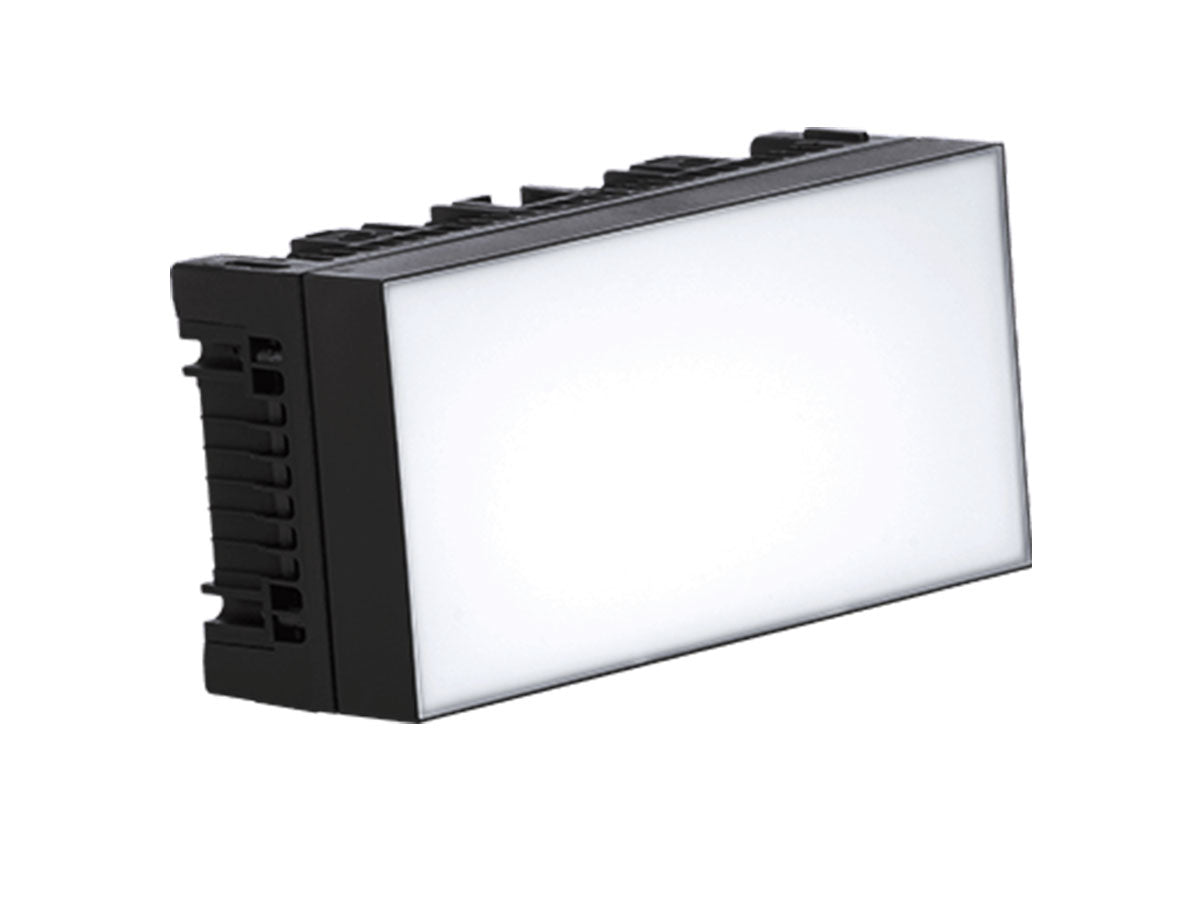

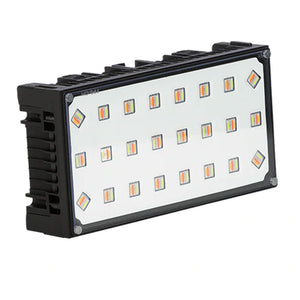

Astera HydraPanel
Astera HydraPanel
SKU:
AST-ASPFP6
Regular price
£333.68 GBP ex VAT
£400.42 GBP inc VAT
£400.42 GBP inc VAT
Regular price
ex VAT
Sale price
£333.68 GBP ex VAT
£400.42 GBP inc VAT
Unit price
per
£400.42 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Beam shaping with six included light modifiers and a large range of mounting options make HydraPanel more flexible than any other product in its class. The full-spectrum Titan LED Engine generates an impressive 1300 Lumen output while running on battery power for 1:45h. All packed into a solid watertight housing of just 600g weight and 166mm length (1.3lb, 6.5″).
Talkback+
Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
Effects
Quickly build programs out of colors and effects, trigger them or make them match a beat.
Quickly build programs out of colors and effects, trigger them or make them match a beat.
Scheduled StandBy
Switch lights into power-saving standby and schedule them to wake up when the production starts.
Anti-Theft
The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
Seamless Runtime
Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
Flicker Free
Scrambled PWM technology to avoid flickering when filming.
Dynamic PowerBoost
This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
DJ Feature
Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
TruColor Calibration
Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
Green/Magenta Correction
Adjust green/magenta during content creation to reduce postproduction work.
Emergency Lights
Switches to white light when AC power is cut to keep your event save
Other Features
The AsteraApp is packed with many additional items and new features are frequently added via software update.
| LED Engine | Titan LED Engine |
|---|---|
| Colors | RGBMintAmber |
| Total LED Power | 25 W |
| LED Power Draw | 17 W |
| Luminous Flux 3200K | 1102 lm |
| Luminous Flux 4000K | 1287 lm |
| Luminous Flux 5500K | 1298 lm |
| Light Output 3200 K @ 1m | 443 lx |
| Light Output 4000 K @ 1m | 512 lx |
| Light Output 5500 K @ 1m | 516 lx |
| CRI (Ra)/ TLCI 3200- 6500 K* | ≥96 |
| Beam Angle | 110° x 100° |
| Field Angle | 150° x 145° |
| Strobe | 0 – 25 Hz |
| Pixels | 6 |
| Battery Runtime | up to 20 hours |
| Battery Runtime Max Brightness | 1h 45min |
| Battery Lifetime | 70 % after 300 cycles |
| Charging Time (nominal) | 3 hours |
| DC Input | 24 VDC – 0.85 A |
| DC Connector | 5.5 mm x 2.1 mm |
| AC Input | No |
| AC Connector | No |
| Wired DMX | Yes (via FP1-PWB/ FP3-DTL/ PWB-2-86) |
| CRMX Receiver | Built-in |
| BluetoothBridge BTB | Built-in |
| Wireless Protocols | CRMX, UHF, Bluetooth, WiFi |
| Wireless Range | CRMX/ UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds |
| Infrared Control | Yes |
| ControlSync | Yes |
| TouchSlider | Yes |
| Housing Material | Polymer & Metal |
| IP Rating unwired | IP65 (only with DC cover or wired) |
| IP Rating wired with PWB-CAB-5 m/-10 m/-15 m/-0.2 m | IP65 |
| Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F |
| Weight | 604 g / 1.3 lbs |
| Dimensions L x W x D | 166 mm x 85 mm x 43.5 mm / 6.53" x 3.34" x 1.71" |
| Mounting Options | 2 x ColdShoe 3 x M5 thread 1 x SafetyWire Eyelet |
- 1 x HydraPanel
- 1 x DiffusorSheet 100
- 1 x GelHolder
- 1 x SoftFrame 100
- 1 x Intensifier 80
- 1 x EggCrate 40
- 1 x EggCrate 6
- 1 x FlexBase
- 1 x ConnectorPlate
- 1 x Babypin
- 2 x DC Socket Covers
