Astera Helios Tube Kit - Set of 8

Astera Helios Tube Kit - Set of 8

SKU: AST-ASPFP2-BTB-SET
Regular price £4,542.81 GBP ex VAT
£5,451.37 GBP inc VAT
Regular price ex VAT Sale price £4,542.81 GBP ex VAT
£5,451.37 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

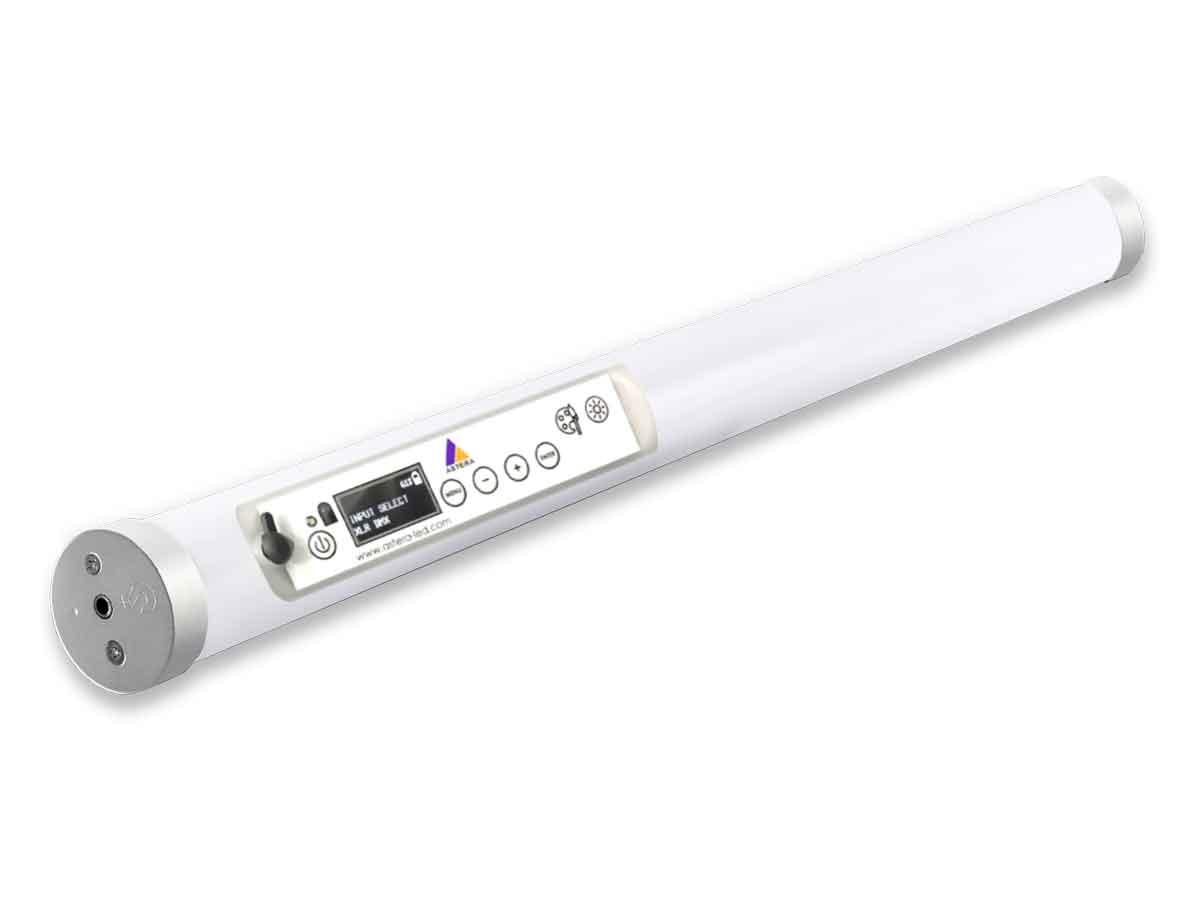

Helios has all the features of the popular Titan Tube while offering a smaller format. This allows it to be mounted in areas where a Titan Tube wouldn’t fit and also increases portability. Helios Tube has 8 pixels and half the brightness of Titan Tube and just over half its length. Colors and brightness are perfectly matched to those of Titan Tube.

  • 8 Pixels: 8 individually controllable pixels
  • Tunable White: with range from 1,750K to 20,000K
  • Ultra High Color Rendering: TLCI ≥96, CRI ≥96, CRI Re≥90 from 3200K to 6500K

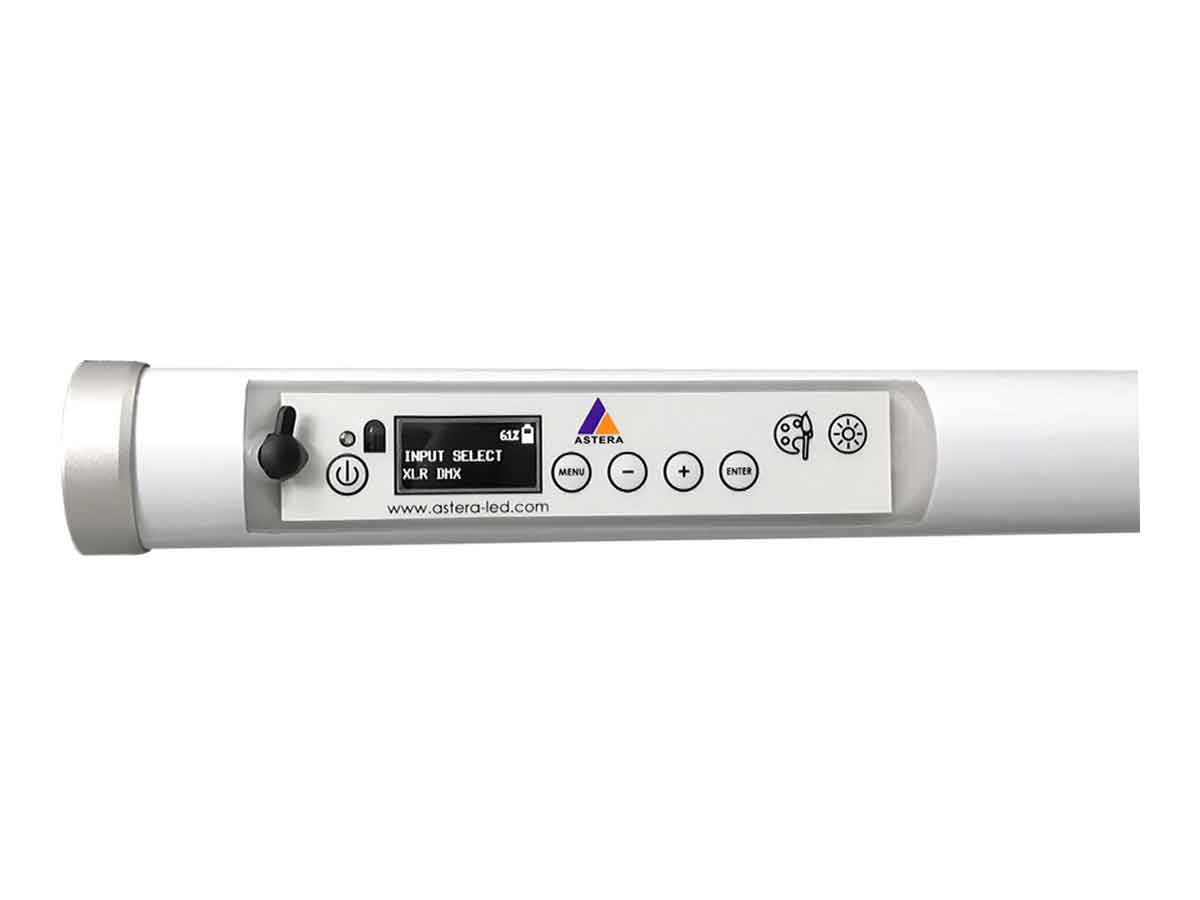

  • Backside Display: Quick access to DMX setup, colors and hue, saturation, intensity control
  • Wired Data Connection (+Wireless): DMX, Art-Net, sACN and power can be distributed via the PowerBox
  • Mounting Accessories: Custom holders, stands etc. allow easy fixation for any production
  • Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Seamless Runtime: Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
  • TruColor Calibration: Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
  • Effects: Quickly build programs out of colors and effects, trigger them or make them match a beat.
  • Flicker Free: Scrambled PWM technology to avoid flickering when filming.
  • Green/Magenta Correction: Adjust green/magenta during content creation to reduce postproduction work.
  • Scheduled StandBy: Switch lights into power-saving standby and schedule them to wake up when the production starts.
  • Dynamic PowerBoost: This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
  • Emergency Lights:Switches to white light when AC power is cut to keep your event save
  • Anti-Theft: The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
  • DJ Feature: Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
  • Other Features: The AsteraApp™ is packed with many additional items and new features are frequently added via software update.

Compatibale Controllers:

  • Astera ARC1
  • AsteraBox
  • CRMX Nova TX
  • W-DMX Transmitter
  • Tunable White - Ranges from 1,750K to 20,000K
  • Ultra High Color Rendering - TLCI >96, CRI >90, from 3200K to 6500K
  • 2h Boost Mode - 2.8 times the brightness in white for almost 2 hours (compared against the AX1)
  • Backside Display - Quick access to DMX setup, colors and hue, saturation, intensity control
  • Wired Data Connection ( + Wireless DMX) - DMX, Art-Net, sACN and power can be distributed via the PowerBox
  • Max Run Time 20 Hours
  • App Controllable
  • Wireless DMX Compatiable
  • IP65 Waterproof Rating
Helios Tube Specs
Order Code
FP2-BTB
LED Engine
Titan LED Engine
Colors
RGBMintAmber
Total LED Power
36 W
LED Power Draw
24 W
Luminous Flux 3200K
1 285 Lumens
Luminous Flux 4000K
1 340 Lumens
Light Output 3200 K @ 1m
360 Lux
Light Output 4000 K @ 1m
393 Lux
CRI (Ra)/ TLCI 3200- 6500 K*
≥96
Beam Angle
135° x 115°
Field Angle
135° x 115°
Strobe
0 – 25 Hertz
Pixels
8
Battery Runtime
up to 20 hours
Battery Lifetime
70 % after 300 cycles
Charging Time (nominal)
3 hours
DC Input
24 VDC – 1.25 A
DC Connector
5.5 mm x 2.1 mm
Wired DMX
Yes (via FP1-PWB / FP3-DTL / PWB-2-86)
CRMX Receiver
Built-in
BluetoothBridge BTB
Yes
Wireless Protocols
CRMX, UHF, Bluetooth, WiFi
Wireless Range
CRMX/UHF Up to 300 m / 330 yds Bluetooth Up to 3 m / 3.3 yds
Infrared Control
Yes
Housing Material
Polycarbonate, metal end caps
IP Rating
IP65 (only with FP1-SP)
Ambient Operating Temperature
0 – 40 °C / 32 – 104 °F
Weight
0.765 kg / 1.68 lbs
Dimensions (L x Ø)
550 mm x Ø 43 mm / 21.7" x Ø 1.7"
Mounting Options
2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread), 1x TubeStand
Kit Specs
Dimensions (L x W x D) 765 mm x 503 mm x 260 mm / 30.11" x 19.80" x 10.24"
Weight (Full) 31 kg / 68.3 lbs

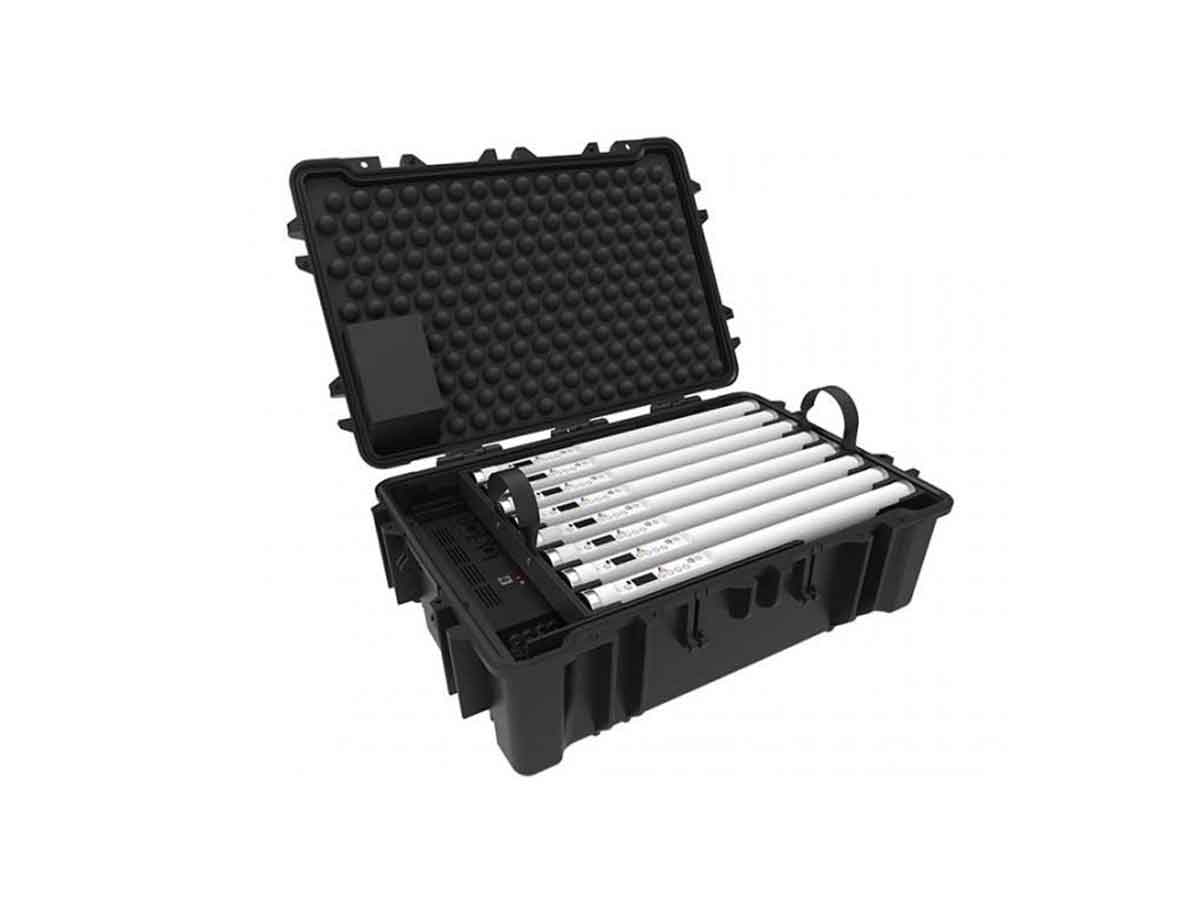

  • 8x FP2 Helios Tube
  • 1x PowerBox
  • 16x EyeBolts
  • 16x Holder
  • 16x BabyPin
  • 8x Stand
  • 1x Charging case for Helios Tube
  • 1x PowerCON TRUE1 cable
  • 8x DC cables
  • 8x Waterproof cover for charging port
