- 1 x Helios Tube
- 2 x TubeHolder
- 1 x TubeStand
- 2 x Eyebolt
- 1 x DC Socket Cover

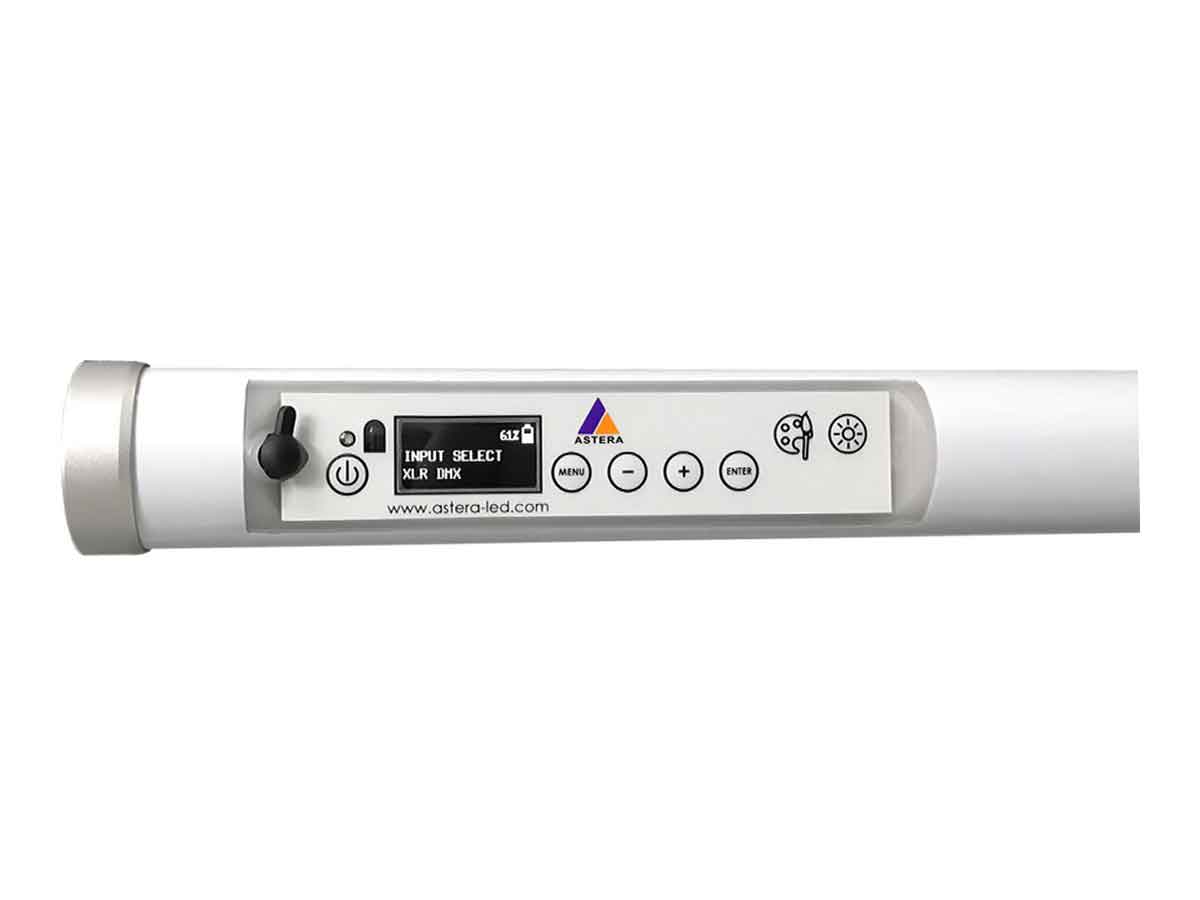

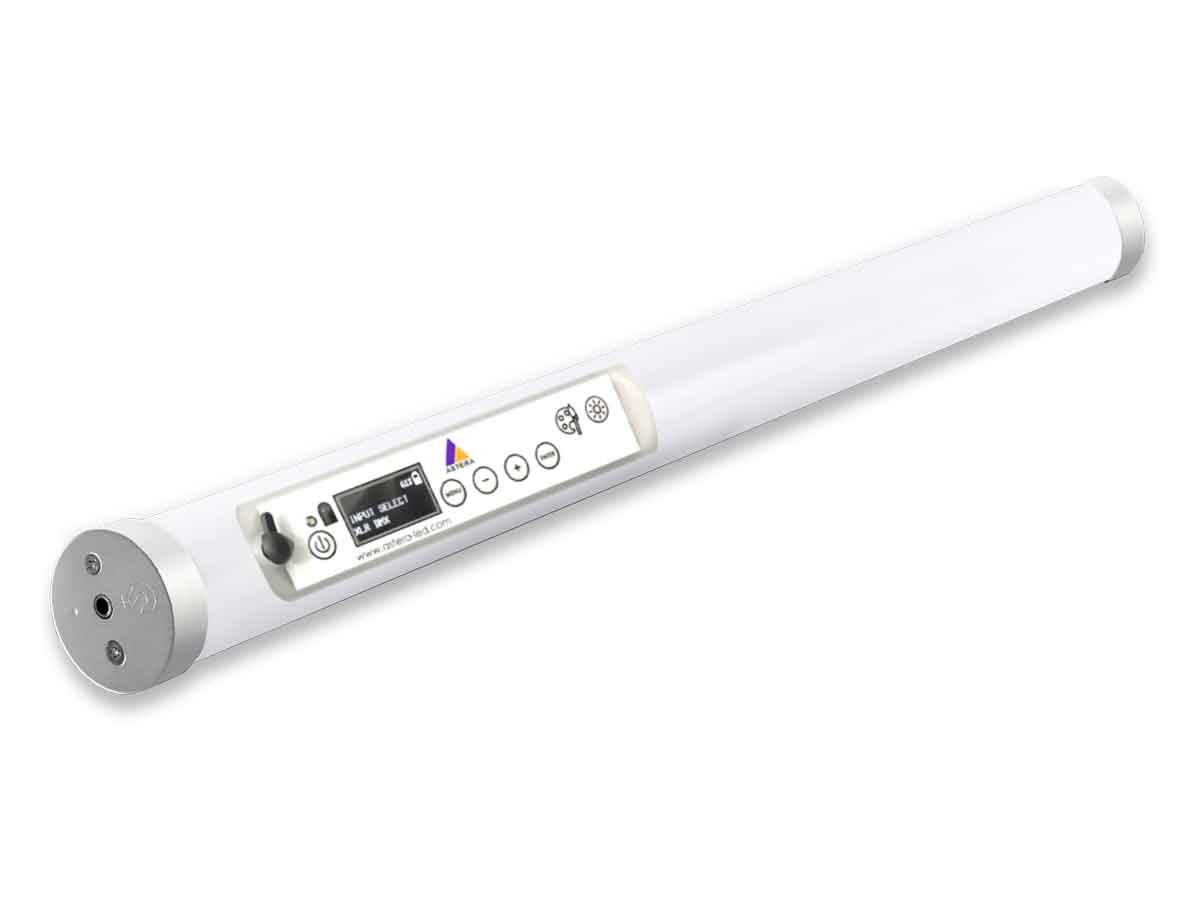

Helios has all the features of the popular Titan Tube while offering a smaller format. This allows it to be mounted in areas where a Titan Tube wouldn’t fit and also increases portability. Helios Tube has 8 pixels and half the brightness of Titan Tube and just over half its length. Colors and brightness are perfectly matched to those of Titan Tube.
Compatibale Controllers:
| Order Code | FP2-BTB | |
|---|---|---|
| LED Engine | Titan LED Engine | |
| Colors | RGBMintAmber | |
| Total LED Power | 36 W | |
| LED Power Draw | 24 W | |
| Luminous Flux 3200K | 1 285 Lumens | |
| Luminous Flux 4000K | 1 340 Lumens | |
| Light Output 3200 K @ 1m | 360 Lux | |
| Light Output 4000 K @ 1m | 393 Lux | |
| CRI (Ra)/ TLCI 3200- 6500 K* | ≥96 | |
| Beam Angle | 135° x 115° | |
| Field Angle | 135° x 115° | |
| Strobe | 0 – 25 Hertz | |
| Pixels | 8 | |
| Battery Runtime | up to 20 hours | |
| Battery Lifetime | 70 % after 300 cycles | |
| Charging Time (nominal) | 3 hours | |
| DC Input | 24 VDC – 1.25 A | |
| DC Connector | 5.5 mm x 2.1 mm | |
| Wired DMX | Yes (via FP1-PWB / FP3-DTL / PWB-2-86) | |
| CRMX Receiver | Built-in | |
| BluetoothBridge BTB | Yes | |
| Wireless Protocols | CRMX, UHF, Bluetooth, WiFi | |
| Wireless Range | CRMX/UHF Up to 300 m / 330 yds Bluetooth Up to 3 m / 3.3 yds | |
| Infrared Control | Yes | |
| Housing Material | Polycarbonate, metal end caps | |
| IP Rating | IP65 (only with FP1-SP) | |
| Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F | |
| Weight | 0.765 kg / 1.68 lbs | |
| Dimensions (L x Ø) | 550 mm x Ø 43 mm / 21.7" x Ø 1.7" | |
| Mounting Options | 2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread), 1x TubeStand | |
