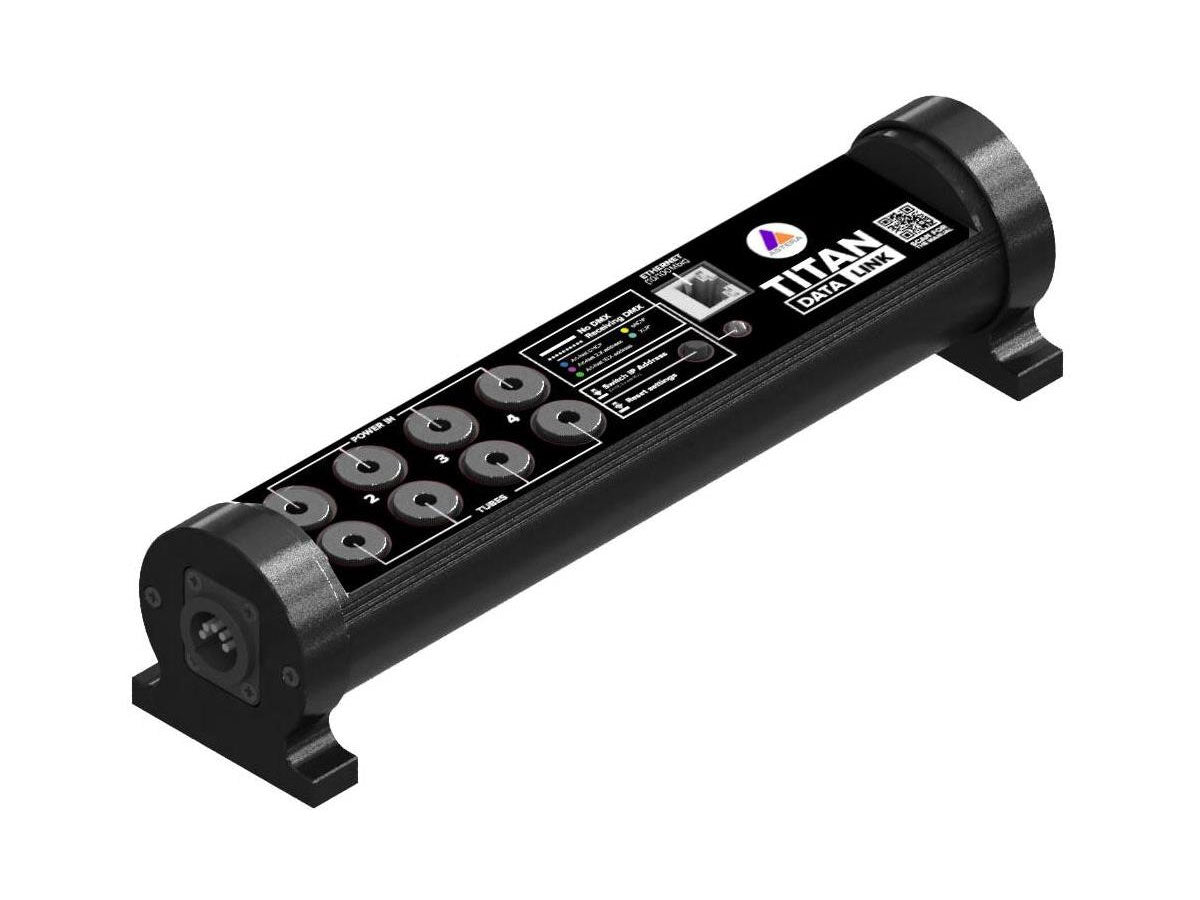

Astera Datalink
Astera Datalink
£192.89 GBP inc VAT
£192.89 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications
- What's Included
A data injector used to establish a wired DMX connection to Hyperion Tubes. It is also useful for Titan Tube and Helios Tube if no Titan PowerBox is available or to work with multiple DMX universes on one PowerBox. Unlike the PowerBox it does not have a built-in power supply but requires one Titan or Hyperion PSU per tube.
| Input | 4 x 24 VDC, Max 4 A |
|---|---|
| Output | 4 x 24 VDC Power pass through to the four outputs |
| Connectors | 8 x DC, 5-pin XLR in+out, RJ45 |
| Data Input | XLR-DMX; ART-Net (1 Universe); sACN (1 Universe) IP Address can be selected between 2.x, 10.x and DHCP. Universe ID can be set by web-interface or pushbutton (by button only 1-16). |
| Data Output | DMX via DC sockets |
| IP Rating | IP20 |
| Dimensions (L x W x D) | 267 mm x 69 mm x 64 mm / 10.5" x 2.7" x 2.5" |
| Weight | 0.5 kg / 1.1 lbs |
| Material | Aluminium |
- 1x Astera Datalink
