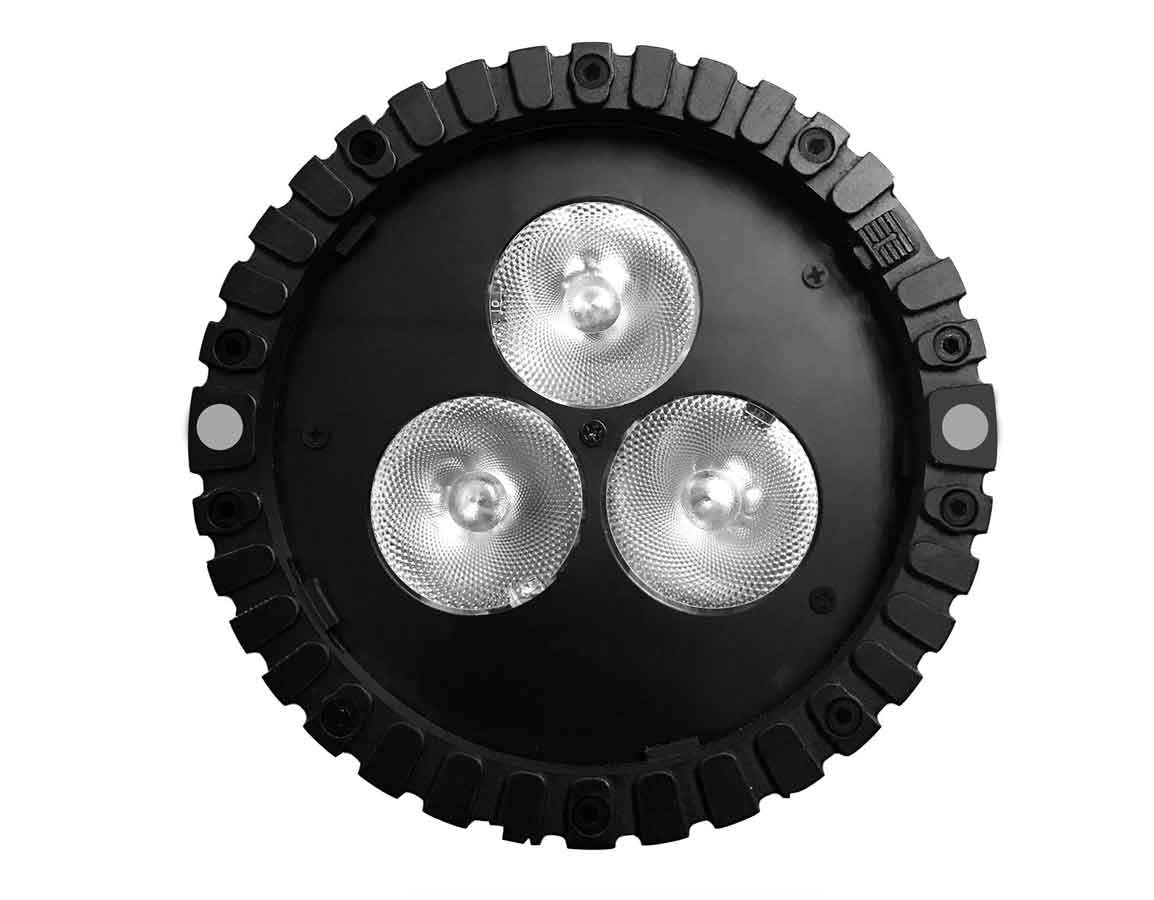

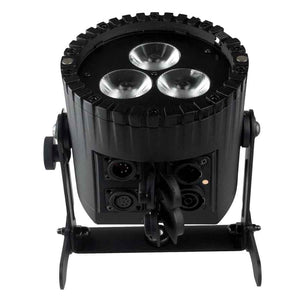

Astera AX5 TriplePar with flood and wallwash filter (BTB)

Astera AX5 TriplePar with flood and wallwash filter (BTB)

SKU: AST-ASPAX5-BTB
£665.10 GBP ex VAT
£798.12 GBP inc VAT
ex VAT £665.10 GBP ex VAT
£798.12 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Optimized for a fast return of investment, this stage lighting fixture replaces your wireless and wired PARs as well as battery uplight. It's the ultimate tool for entertainment professionals.

  • Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Seamless Runtime: Set the length of your event and be sure that your lights won't run out while still getting the maximum brightness.
  • TruColor Calibration: 100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.
  • Filming Tools: Adjustable PWM frequency to avoid flickering, green/purple balance to minimize post-production work.
  • Anti-Theft: The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
  • DJ Feature: Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
  • Scheduled Stand-by: Switch lights into power-saving standby and schedule them to wake up when the event starts.
  • Dynamic Power-Boost: The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.
  • Emergency Light: Switches automatically to white light and runs of its battery when AC power is cut off.

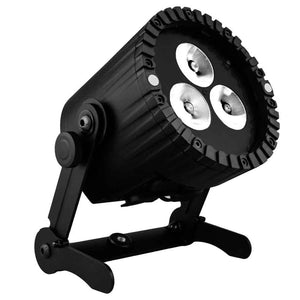

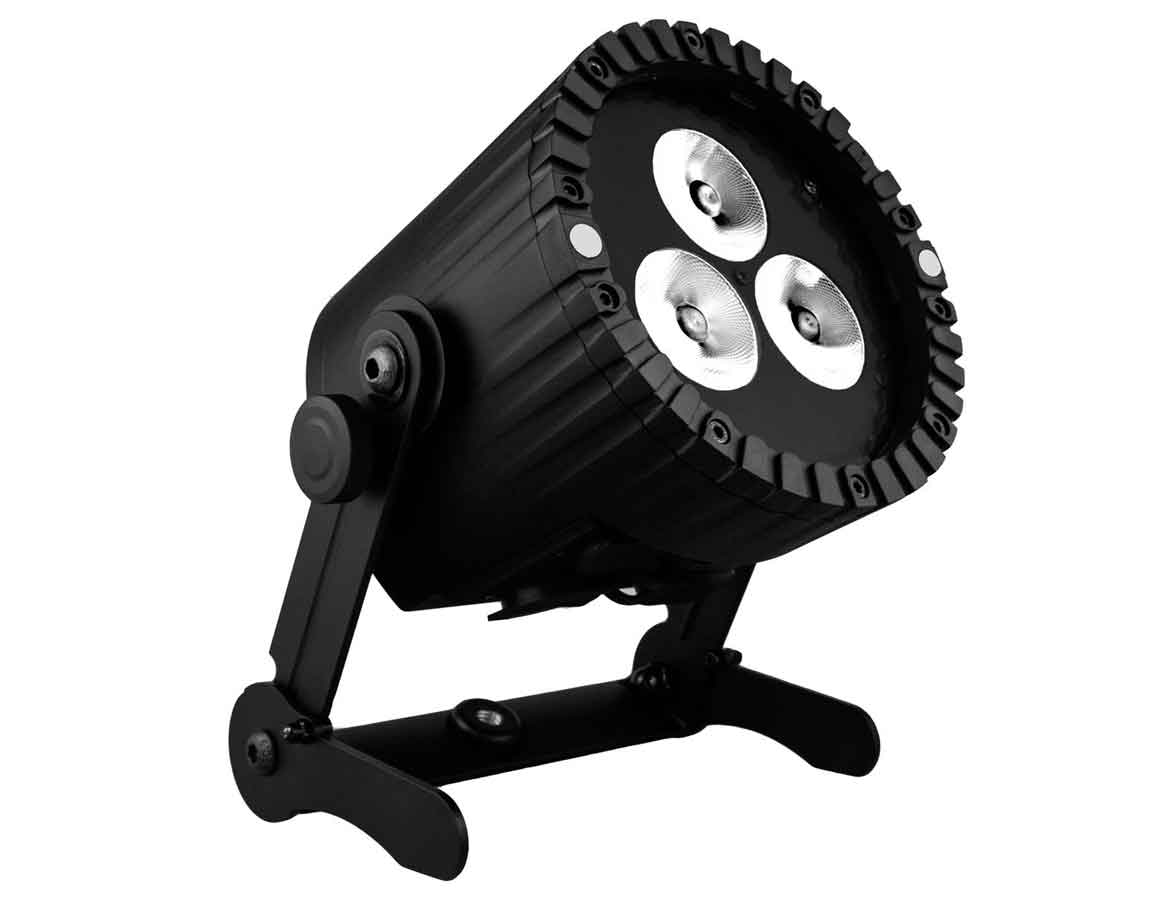

  • Quick release kickstand to adjust angle for fast and efficient wall uplighting

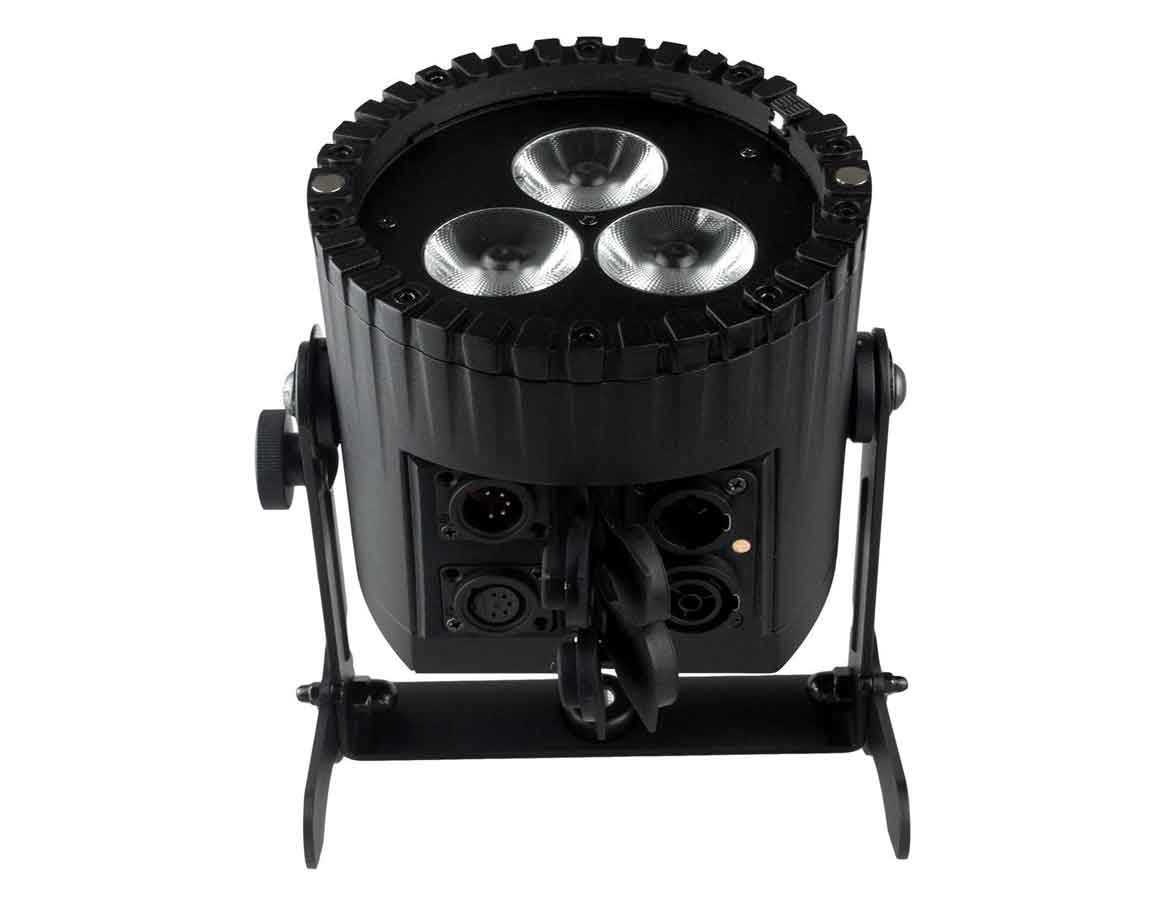

  • Powercon True1 + XLR connectors

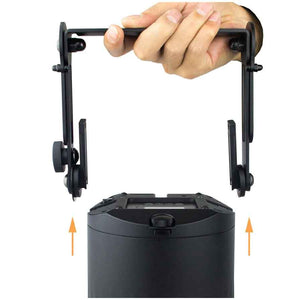

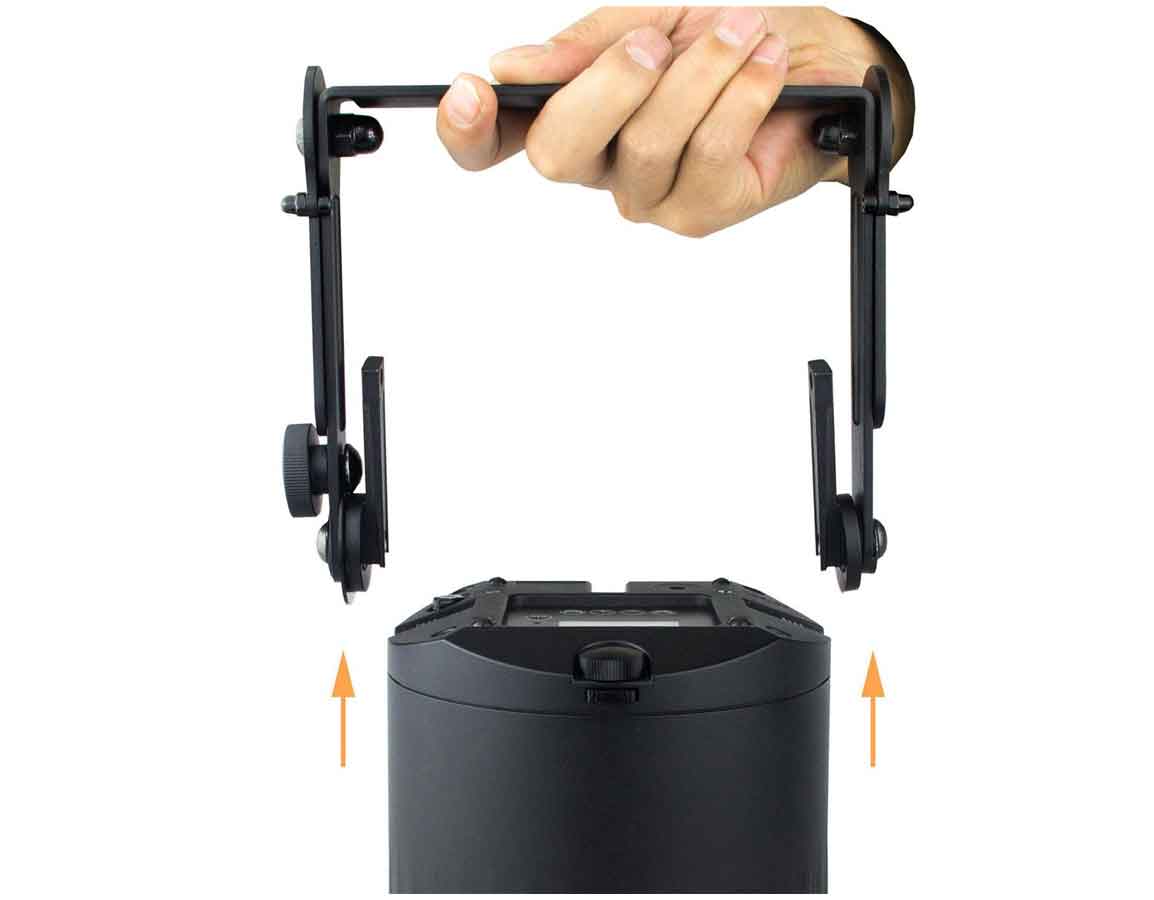

  • Slide-out bracket to transform the AX5 into an uplight within seconds
  • Waterproof connectors
  • Charging contact as well as waterproof
  • Clip-in filters High efficiency flood and wall wash filters clip in safely
  • Elegant covers to change your uplight's colour and make it fit to any occasion

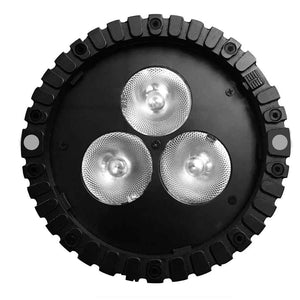

  • 3x 15W RGBAW LEDs with the latest high-precision Gaggione lenses
Order Code
AX5
LED Engine
RGBAW
Colors
RGBAW
Total LED Power
45 W
Luminous Flux 3200K
1 080 Lumens
Luminous Flux 5500K
1 413 Lumens
Light Output 3200 K @ 2m
4 800 Lux
Light Output 5500 K @ 2m
5 151 Lux
CRI (Ra)/ TLCI 3200- 6500 K*
≤92
Beam Angle
13°
Field Angle
26°
Strobe
0 – 25 Hertz
Pixels
1
Battery Runtime
up to 20 hours
Battery Lifetime
70 % after 300 cycles
Charging Time (nominal)
5 hours
AC Input
90-264 VAC, 47/63 Hertz, 1.2 A / 115 VAC, 1.0 A / 230 VAC
AC Connector
PowerCON TRUE1 IN/OUT
Wired DMX
Yes (via 5-pin XLR)
CRMX Receiver
Built-in
BluetoothBridge BTB
No
Wireless Protocols
CRMX, UHF
Wireless Range
CRMX/UHF up to 300 m / 330 yds
Infrared Control
Yes
Housing Material
Aluminium
IP Rating
IP65
Ambient Operating Temperature
0 – 40 °C / 32 – 104 °F
Weight
3.4 kg / 7.5 lbs
Dimensions with bracket (L x W x D)
148.1 mm x 193.6 mm x 213.5 mm / 5.83" x 7.62" x 8.40"
Dimensions without bracket (Ø x H)
Ø 153.2 mm x 140.5 mm / Ø 6.03" x 5.53"
Mounting Options
4x M6 threads, Safety eyelet, Bracket (with 3/8"-16UNC / 1/2" hole)
  • 1 x AX5 TriplePAR
  • 1 x 32° Flood Filter
  • 1 x Wallwash Filter
