Astera AX3 BTB Lightdrop 1 x 15W RGBW

Astera AX3 BTB Lightdrop 1 x 15W RGBW

SKU: AST-ASPAX3-BTB
£315.69 GBP ex VAT
£378.83 GBP inc VAT
ex VAT £315.69 GBP ex VAT
£378.83 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

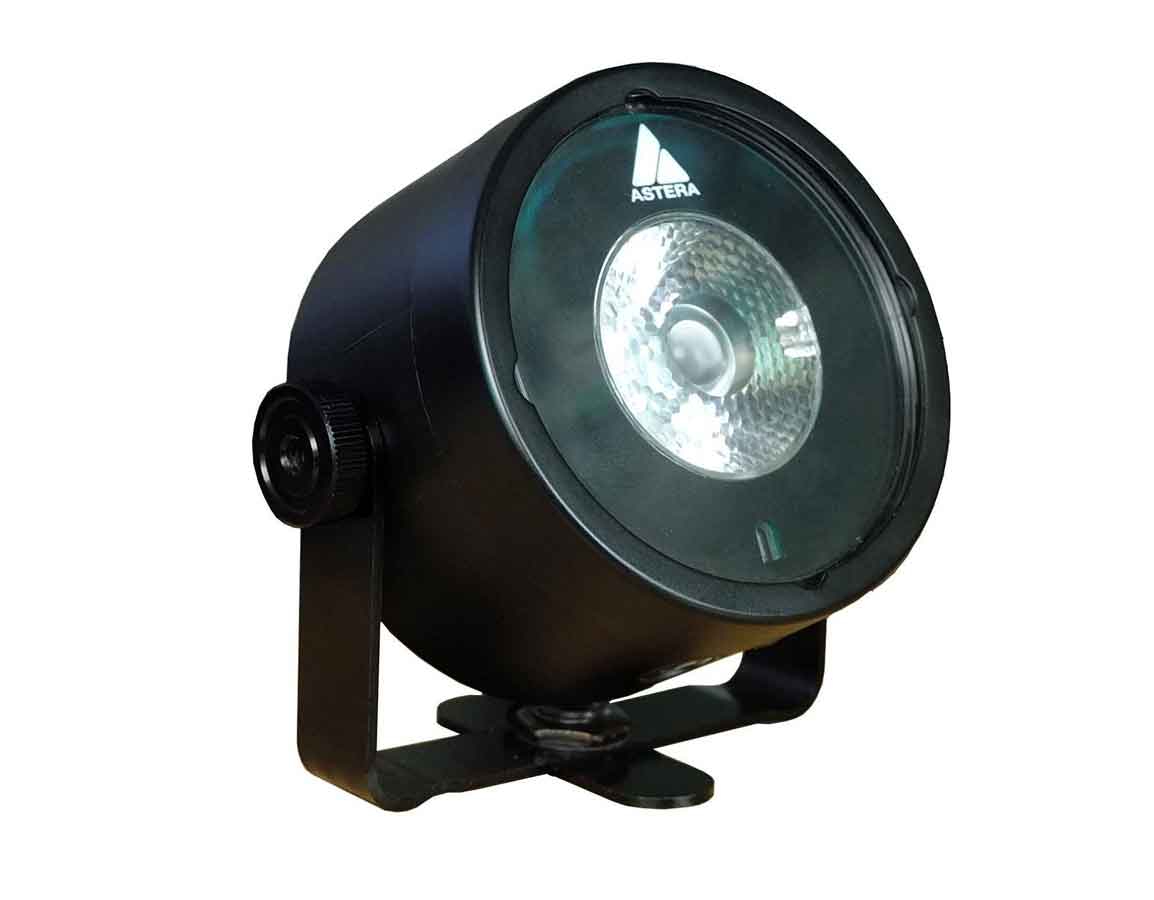

The AX3 is a battery operated, easy to use IP65 RGBW puck aimed at stage lighting and corporate events. It can be used as uplight as well as hanging or standing spotlight and inside translucent objects, truss, etc. It is extremely compact and yet offers a high brightness paired with long battery runtime and range.

  • Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Seamless Runtime: Set the length of your event and be sure that your lights won't run out while still getting the maximum brightness.
  • TruColor Calibration: 100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels
  • Filming Tools: Adjustable PWM frequency to avoid flickering, green/purple balance to minimize post-production work.
  • Anti-Theft: The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
  • DJ Feature: Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
  • Scheduled Stand-by: Switch lights into power-saving standby and schedule them to wake up when the event starts.
  • Dynamic Power-Boost: The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.
  • Emergency Light: Switches automatically to white light and runs of its battery when AC power is cut off.
  • Filters for different beam angles (flood, elliptic, etc) can easily be inserted
  • 15W RGBW Cree LED 13 deg. Beam angle, 430Lm
  • Bracket with 3/8" thread for clamps and bolts
  • Underside with M4 threads and DC socket
  • Light transportation case can charge up to 8 AX3 units at once
  • Magnetic Underside for attaching to truss and metallic objects
LED Engine
RGBW
Colors
RGBW
Total LED Power
15 W
Luminous Flux 3200K
430 lm
Light Output 3200 K @ 2m
1300 lx
CRI (Ra)/ TLCI 3200- 6500 K*
≤88
Beam Angle
13°
Field Angle
22°
Strobe
0 – 25 Hz
Pixels
1
Battery Runtime
up to 20 hours
Battery Lifetime
70 % after 300 cycles
Charging Time (nominal)
7 hours
DC Input
5 VDC – 2.5 A
DC Connector
5,5 mm x 2,5 mm
AC Input
No
AC Connector
No
Wired DMX
No
CRMX Receiver
Built-in
BluetoothBridge BTB
No
Wireless Protocols
CRMX, UHF
Wireless Range
CRMX/UHF up to 300 m / 330 yds
Infrared Control
Yes
Housing Material
Aluminium
IP Rating
IP65 (with Charging Socket Cover (AX3-SP)
Ambient Operating Temperature
0 – 40 °C / 32 – 104 °F
Weight
0.68 kg / 1.4 lbs
Dimensions with bracket (L x W x D)
120 mm x 59 mm x 114 mm / 7.4” X 2.3” X 4.4”
Dimensions without bracket
Ø95 mm x 59 mm / Ø3.7” x 2.3”
Mounting Options
3x M4 threads, Bracket (with 1x 3/8" thread, 2x 1/4" threads)
  • 1x AX3 Light Drop (15W)
  • 1x Charger
  • 3x Hooks
  • 4x Rubber Feet
  • 1x Bracket
  • 1x 30 Degree Diffuser
  • 1x 120 Degree Diffuser
