Astera AX2 PixelBar 50cm Length

Astera AX2 PixelBar 50cm Length

SKU: AST-ASPAX2-50
£853.48 GBP ex VAT
£1,024.18 GBP inc VAT
ex VAT £853.48 GBP ex VAT
£1,024.18 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

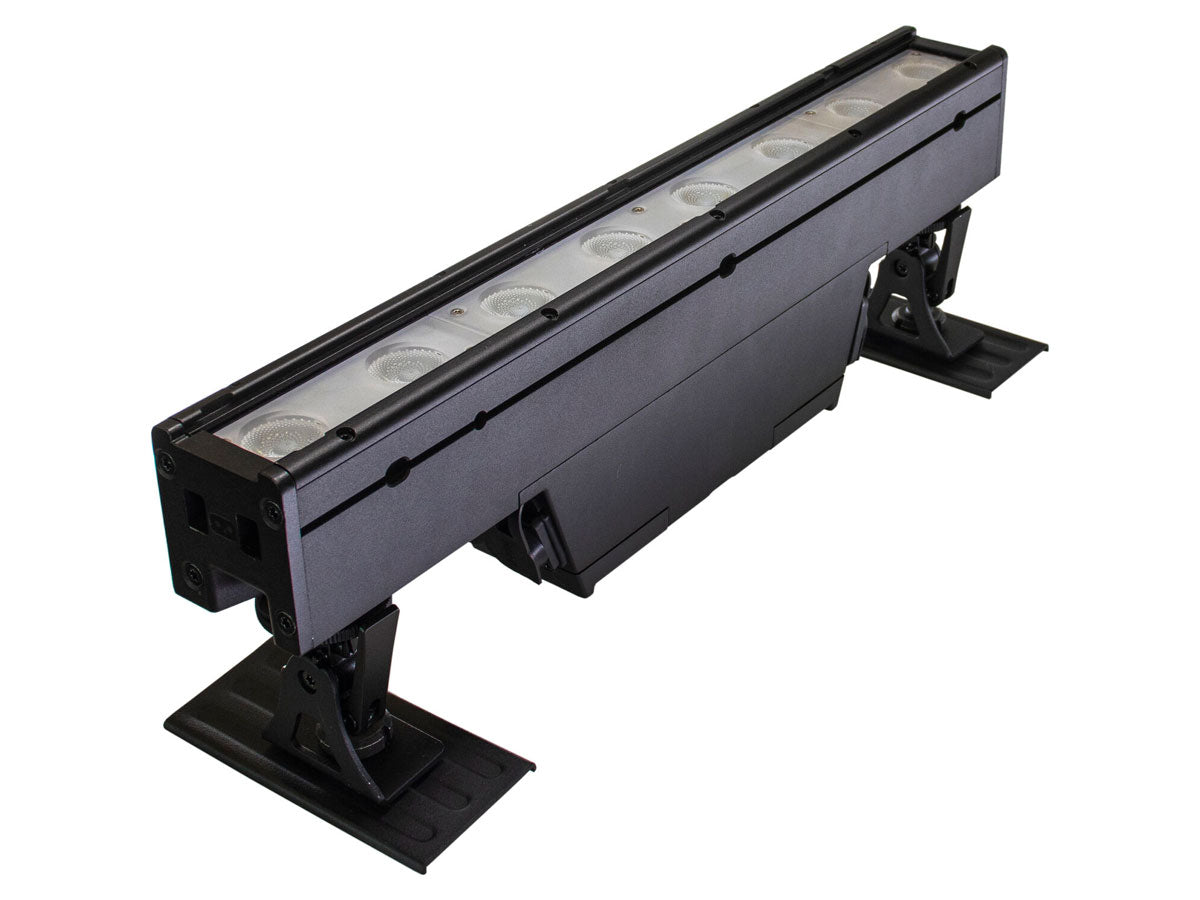

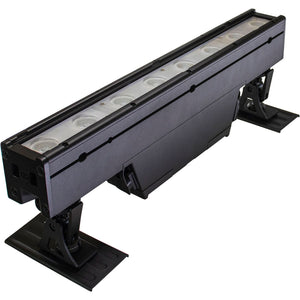

LED Bar with built-in battery for stage, events and film lighting
Astera’s Wireless PixelBar is a linear wash fixture with built-in battery pack. Each of its LEDs can be individually addressed and offers ultra-high color rendering, digital color calibration and a native 21° beam. Thanks to its smart stands, hanging bracket, connectable endcaps and the integrated airline track it can be quickly assembled in numerous ways and is suitable for a wide variety of applications such as concert/touring, corporate events, TV etc.
The PixelBar is available in 1m (16 x 10W LEDs) and 50cm (8 x 10W LEDs).
Perfect Color Mixing
Precision Optics from Gaggione with 21° enable perfect color-mixing from floor to ceiling that starts right above the lenses.
Airline Track
We have included Airline Tracks at bottom and backside of the fixture. This allows to attach mounting accessories such as TrackPin and TrackHanger and is also used to connect the AX2’s feet.

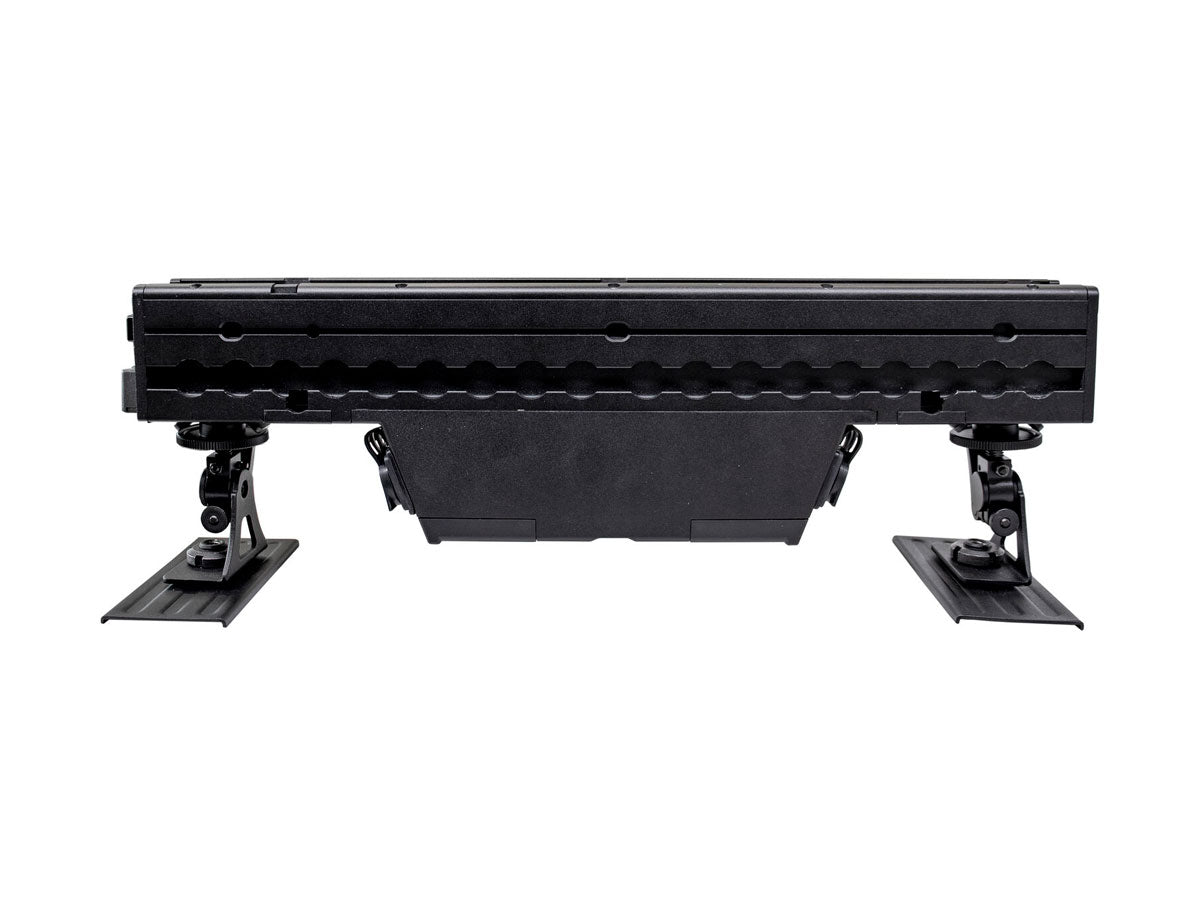

Multi-functional feet
The multi-functional feet allows you to adjust the angle of a AX2 or a whole row of connected AX2 units. Tilting is possible up to 90° by rotating the foot’s base plate. Feet can be attached to backside or bottom via Airline Track.
Many applications
AX2 is designed to be used for a large variety of usages so you can make good use of your equipment. Use it for wallwashing, as side light and foot light. It can be used for shows and stages with its individually controllable pixels or as white light when bouncing light on film sets.
  • Seamless Runtime - To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.
  • Effects - Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.
  • Talkback+ - Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Anti-Theft - When enabled, the integrated theft alarm gives visual and audible alarm if lights are being moved. In addition, the AsteraApp also shows the alarm.
  • Emergency Light - With this innovative feature, the lights can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.
Order Code
AX2-50
AX2-50-BTB
LED Engine
Titan LED Engine
Colors
RGBMintAmber
Total LED Power
80 W
LED Power Draw
40 W
Luminous Flux 2700K
1 800 Lumens
Luminous Flux 3200K
2 230 Lumens
Luminous Flux 5500K
2 265 Lumens
Light Output 2700 K @ 1m
8 995 Lux
Light Output 3200 K @ 1m
11 060 Lux
Light Output 5500 K @ 1m
11 010 Lux
CRI (Ra)/ TLCI 3200- 6500 K*
≥96
Beam Angle
21°
Field Angle
42°
Strobe
0 – 25 Hertz
Pixels
8
Battery Runtime
up to 20 hours
Battery Runtime (max. Brightness)
2 h 50 m
Battery Lifetime
70 % after 300 cycles
Charging Time (nominal)
5 hours
AC Input
96-264 VAC, 50/60 Hertz, 2 A, 49 W
AC Connector
PowerCON TRUE1 IN/OUT
Wired DMX
Yes (via 5-pin XLR)
CRMX Receiver
Built-in
BluetoothBridge BTB
No
Built-in
BarConnect+
Yes
Wireless Protocols
CRMX, UHF
CRMX, UHF, Bluetooth, Wifi
Wireless Range
CRMX/UHF up to 300 m / 330 yds
CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control
Yes
Housing Material
Aluminium
IP Rating
IP65
Ambient Operating Temperature
0 – 40 °C / 32 – 104 °F
Weight
4.5 kg / 9.9 lbs
Dimensions without hook (L x W x D)
500 mm x 165 mm x 65 mm / 19.7" x 6.5" x 2.6"
Dimensions with hook (L x W x D)
520 mm x 165 mm x 65 mm / 20.5" x 6.5" x 2.6"
Mounting Options
Airline Track, 2x AX2 Feet (with 3/8" thread)
  • 1 x AX2 PixelBar 50cm
  • 2 x Feet
  • 2 x TrackHanger
  • 1 x PowerCON TRUE1
