Astera AsteraBox ART7-WIFI

Astera AsteraBox ART7-WIFI

SKU: AST-ASPART7-WIFI
£301.95 GBP ex VAT
£362.34 GBP inc VAT
ex VAT £301.95 GBP ex VAT
£362.34 GBP inc VAT
Sale Sold out
In stock.
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications

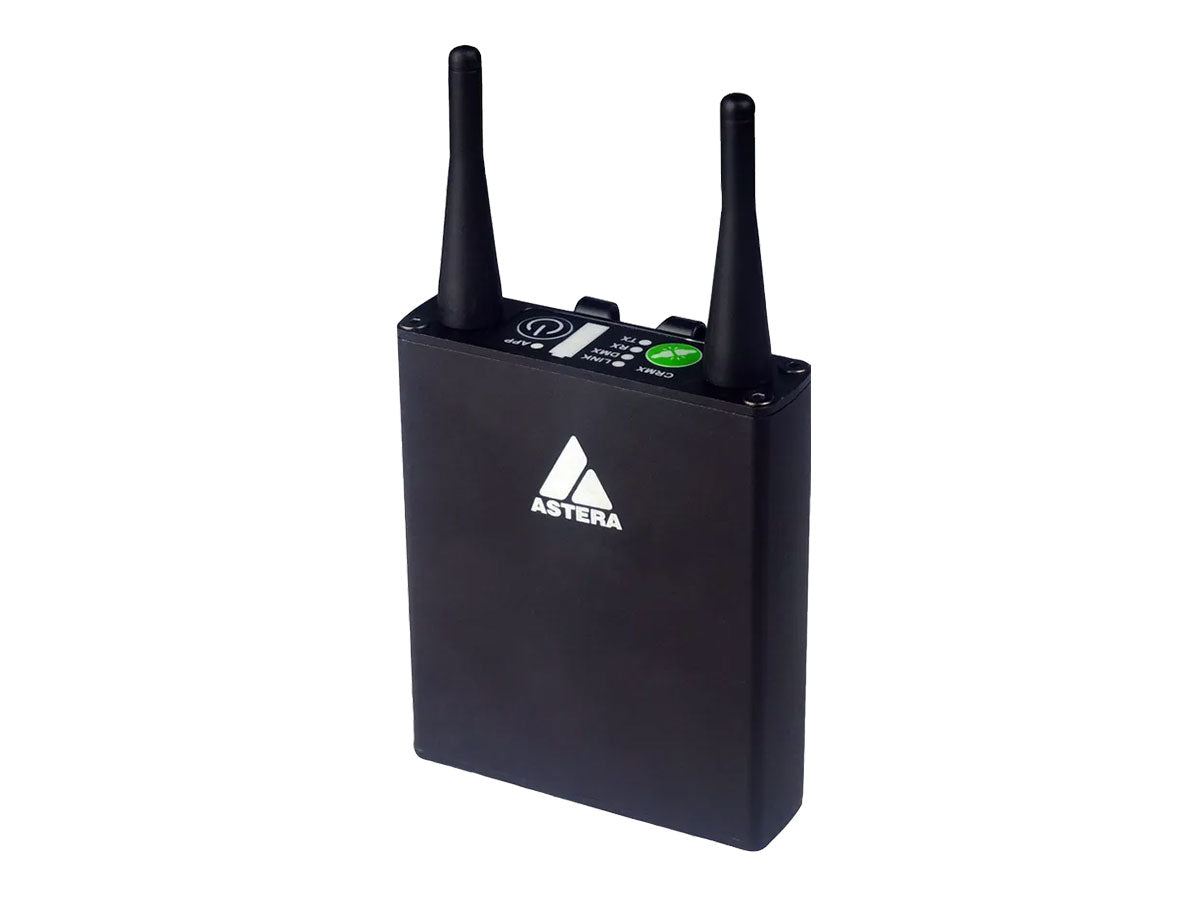

AsteraBox is the interface between lights and controller. It can be used as a wireless DMX transceiver with CRMX technology and also works as interface between the AsteraApp and lights. Its built-in battery enables an easy and time-saving setup, just like with all of Astera’s products.

The Astera System:

  • Set Up Lights - Set up your lights conveniently out of the distance. Adjust DMX settings on one or several lights. After your job, do a master reset.
  • Monitor Lights - Check your lights while operating them. View battery status, settings, targeted lights and get informed if a light is being moved.
  • Control Lights - Send effects and colors to your lights. Choose which lights you want to target. Save programs for quick launch later.
  • Wireless DMX - The AsteraBox works as a wireless DMX transmitter with CRMX technology, just connect it with the included XLR adapter.
  • Compatible - Astera Lights can be controlled together by CRMX and W-DMX (limited compatibility) so you can use them together with other wireless lights.
Order Code: ART7-WIFI
DC Input: 5 VDC - 2 A
Battery Voltage: 3.7 V
Battery Runtime: 60 h (App), 18 h (CRMX)
Charging Time (Nominal): 12 hours

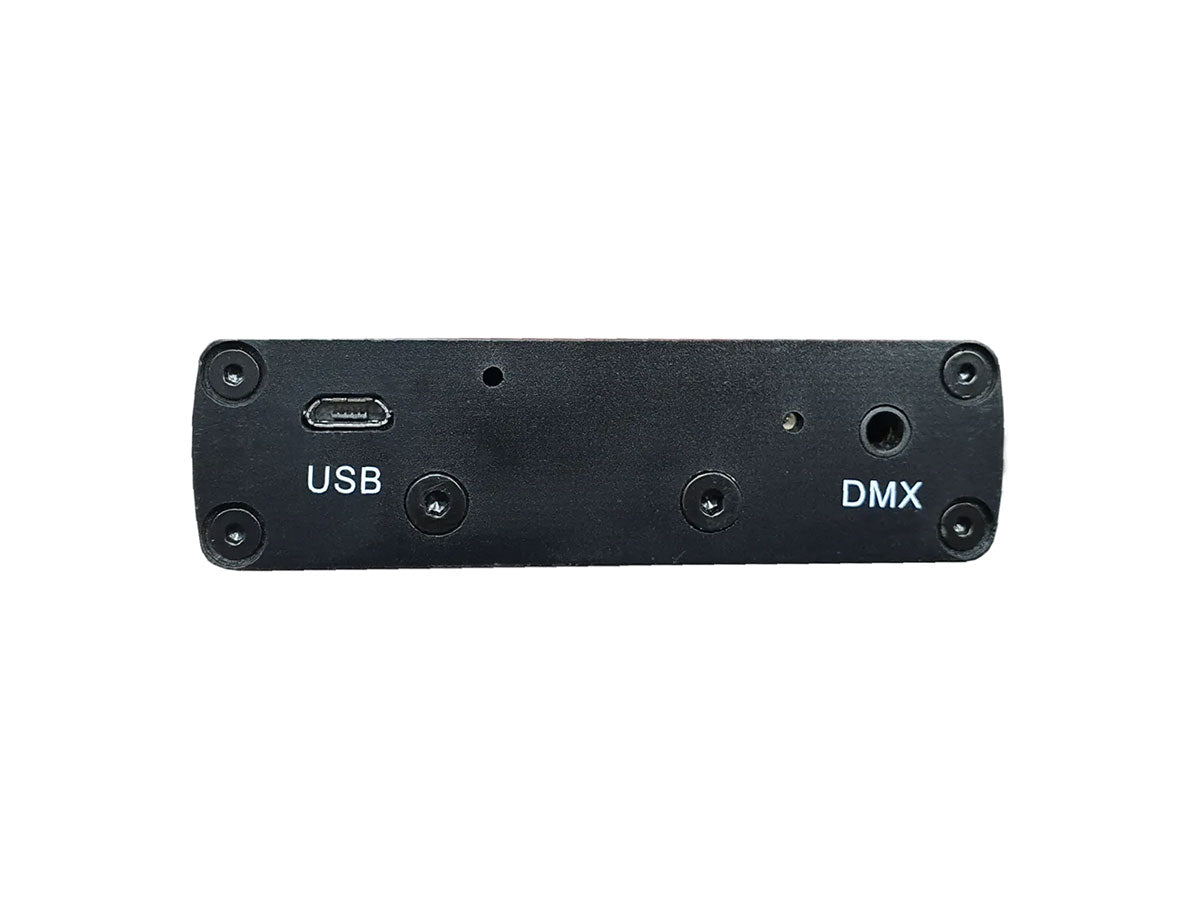

Ports: Micro-USB for charging, 3.5 mm jack for DMX Input
DC Connector: Micro-USB
BluetoothBridge BTB: Built-in
Bluetooth Classic: No
Wireless Protocols: UHF, CRMX, Bluetooth*, Wi-Fi
*Minimum requirement for Astera App device: Bluetooth 4.2
Wireless Range: CRMX: up to 300 m / 328 yds
UHF: up to 300 m / 328 yds
Bluetooth: up to 3 m / 3.3 yds
Microphone: Built-in
Housing Material: Aluminium
IP Rating: IP20
Ambient Operating Temperature: 0 - 40°C / 32 - 104°F
Mounting Options: Belt Clip
Dimensions: 0.23 kg / 0.51 lbs
Weight: 146 mm x 78 mm x 30 mm / 5.7" x 3.1" x 1.2"
