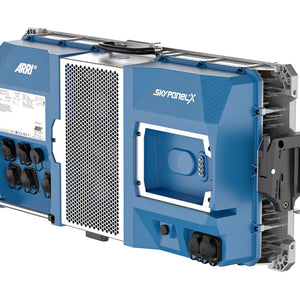

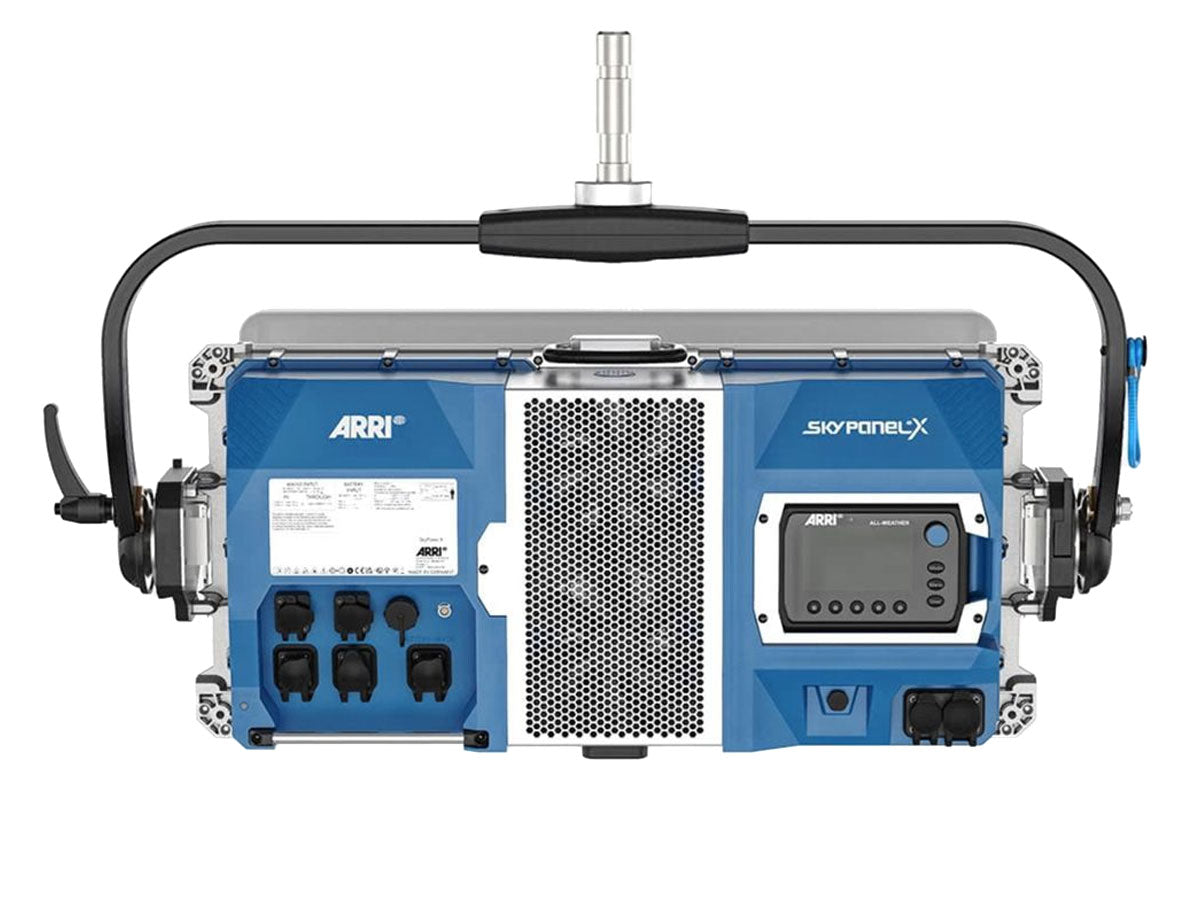

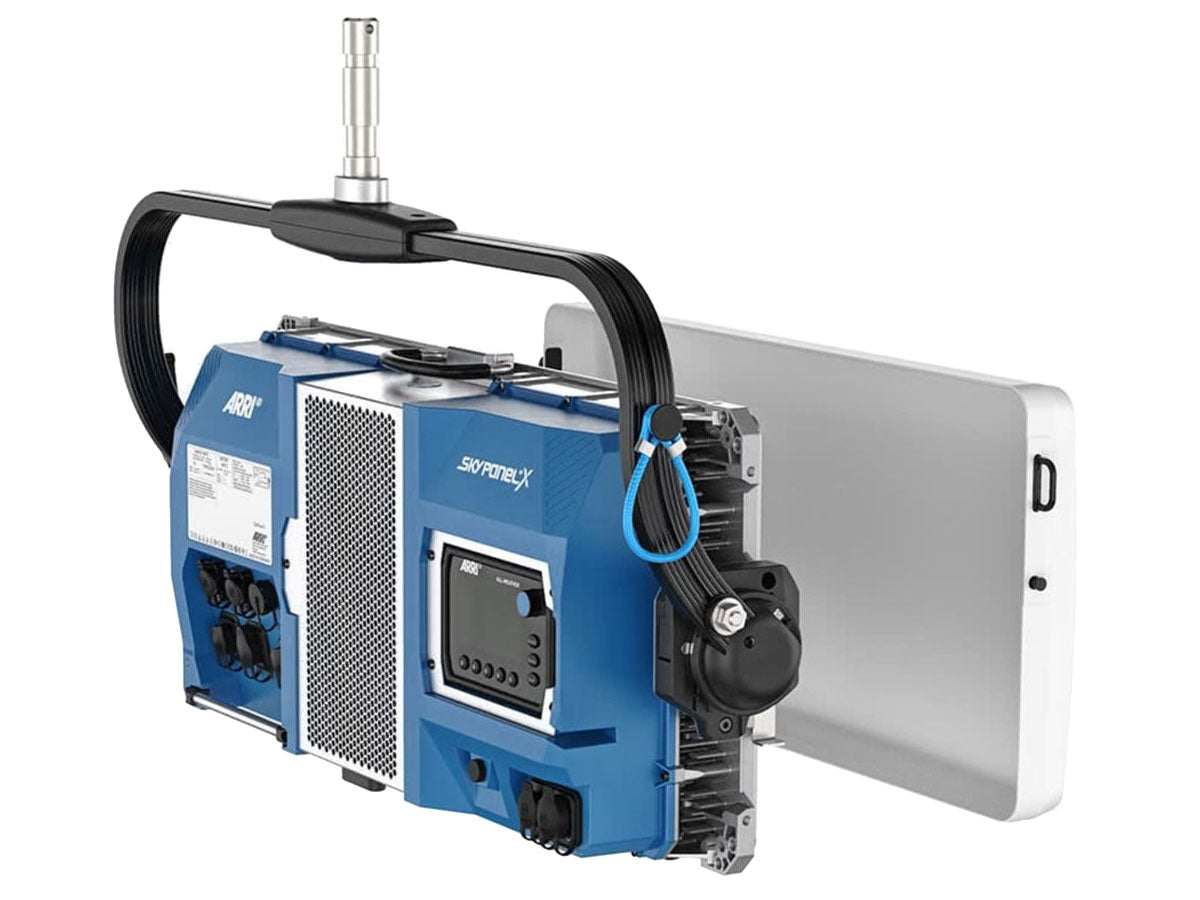

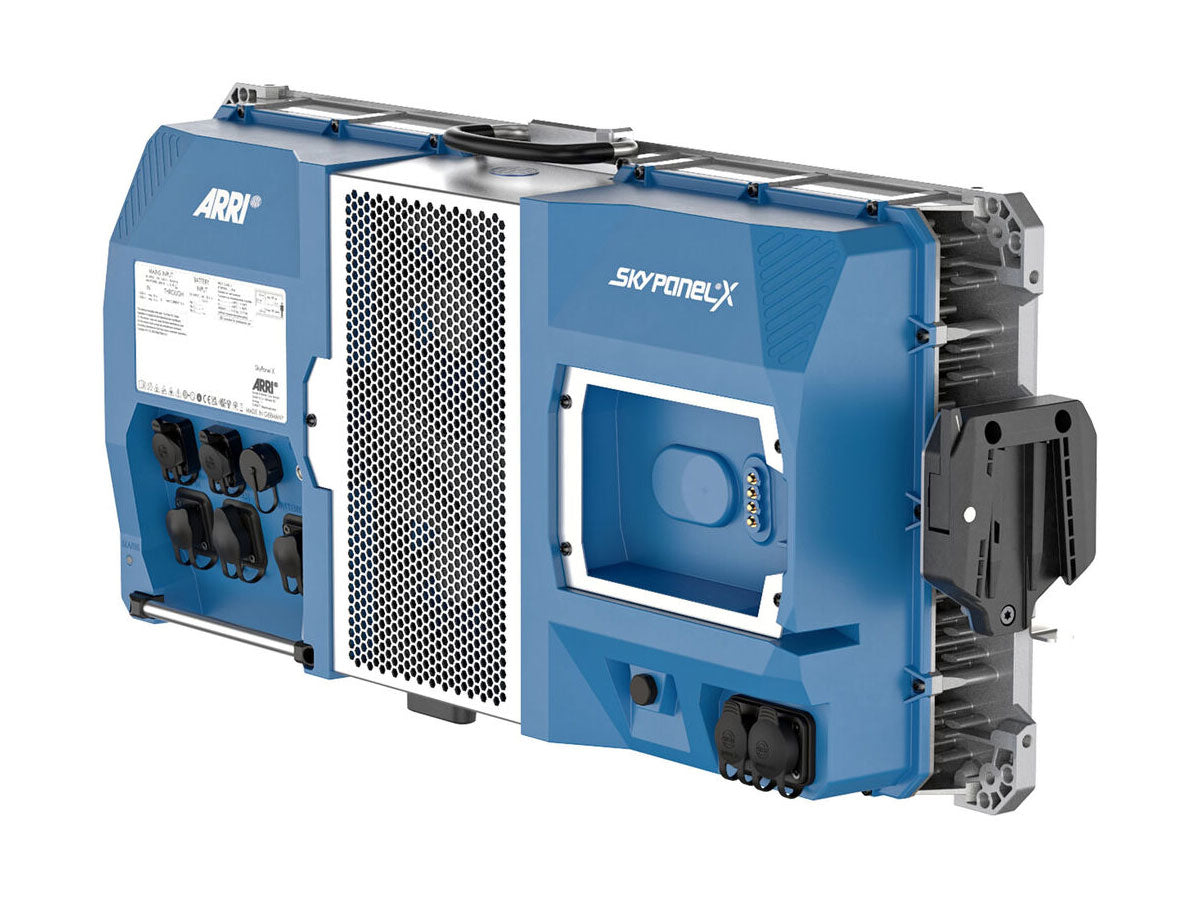

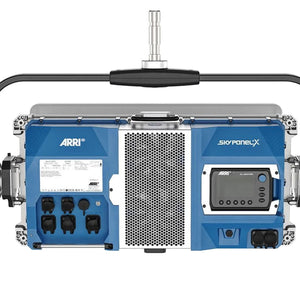

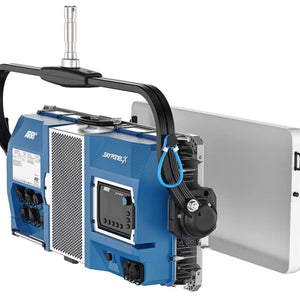

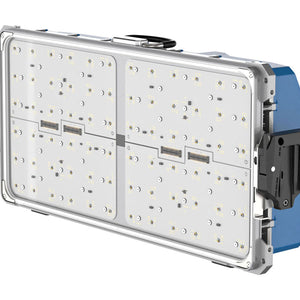

Arri Skypanel X21 - Soft Light Package
Arri Skypanel X21 - Soft Light Package
£5,520.00 GBP inc VAT
£5,520.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications
- What's Included
SkyPanel X - Reach beyond the Sky
Introduced as a modular system and configurable into different sizes (X21, X22, X23), SkyPanel X offers native soft and hard light technology, setting a new bar not only in terms of dimming and colour science but also in lux output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K - 20,000 K; RGBACL full-spectrum colour engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to existing workflows.
The all-weather SkyPanel X
The SkyPanel X is your all-weather lighting solution. Engineered and IP66-certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.
| Power: | 800 W |
| Format Size: | 2:1 (horizontal) |
| Light Engines: | 4 |
| Pixel Zones: | 8 max. |
| Max. Output (Lux): | 4,800 Lux @ 10 m, 5,600 K (native hard) |
| Max Output (Lumen): | 51,809 Lumen (native open-face) |
| AC Voltage: | 100 - 240 V~, 50/60Hz |
| PSU: | Integrated |

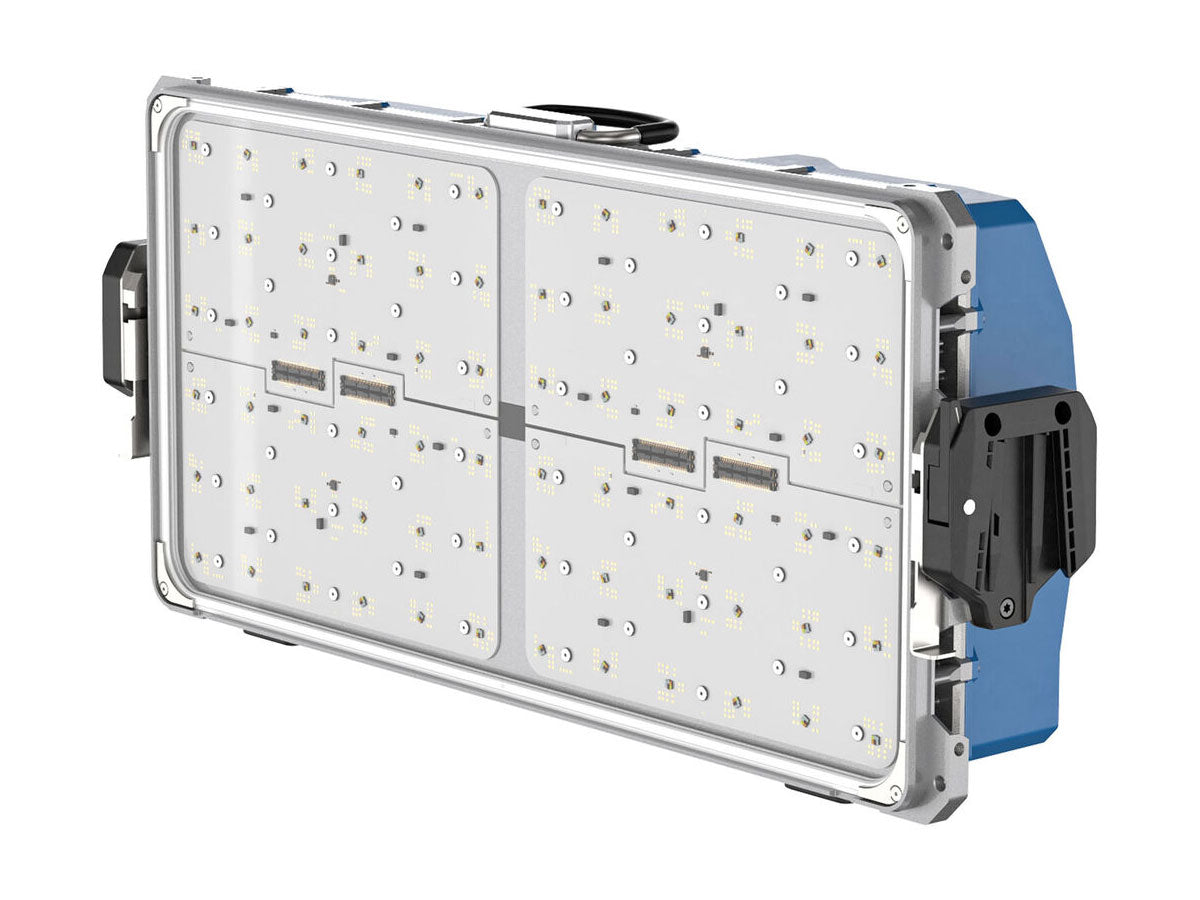

| LED Engine: | Full Spectrum, 6-color RGBACL LED |
| Native Quality: | Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face |
| CCT Range: | 1,500 K - 20,000 K |
| CRI: | 90 min. / 99 max. (High CRI VariFan mode) |
| TLCI: | 93 typical (High CRI VariFan mode) |
| Camera Sensor Matching: | Yes, via ARRI ALEXA Mode |
| Dimming Performance: | Flicker free, High-res low end dimming |
| Native Beam Angle: | 11º (hard), 106º (soft), 120º (open-face) |
| Difffuser Options: | X21 Dome, Beam Enhancer filter, S60-C diffusers |
| Accessory Compatibility: | All SkyPanel S60-C accessories via S60 Adapter |
| Type of Display: | Removable ALL-WEATHER Control Panel with LiOS3 |
| Operational Modes: | Standard (low noise), High Output, VariFan, ARRI ALEXA |
| Colour Modes: | CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching |
| DMX Presets: | Yes, via Control Panel, RDM and DMX-512A |
| Legacy DMX Modes: | Compatible with S60-C mode 2 and 6 |
| Multi-Array Setup: | Yes (up to 3 units in just one single DMX profile) |
| High-Speed Mode: | Yes |
| IP Rating: | IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity) |
| Cooling System: | Passive + Active cooling system with double heat sink |
| Integrated Wired Control: | DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP) |
| Integrated Wireless Control: | CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0 |
| Daisy-Chain Modularity: | Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data) |
| Pre-Programmed Effects: | 15 Pixel Macros, 15 effects |
| Warranty: | 3 years |
| Max. Ambient Temperature: | 40ºC |
| Certifications: | pending: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, PSE, KC, SRRC and more |
| Dimensions (Fixture Only): | 738 x 339 x 154 mm / 29.1 x 13.3 x 6.1 in |
| Weight (Fixture Only): | approx. 15 kg / 33 lb |
| Weight (With Yoke): | approx. 18 kg / 39.7 lb |

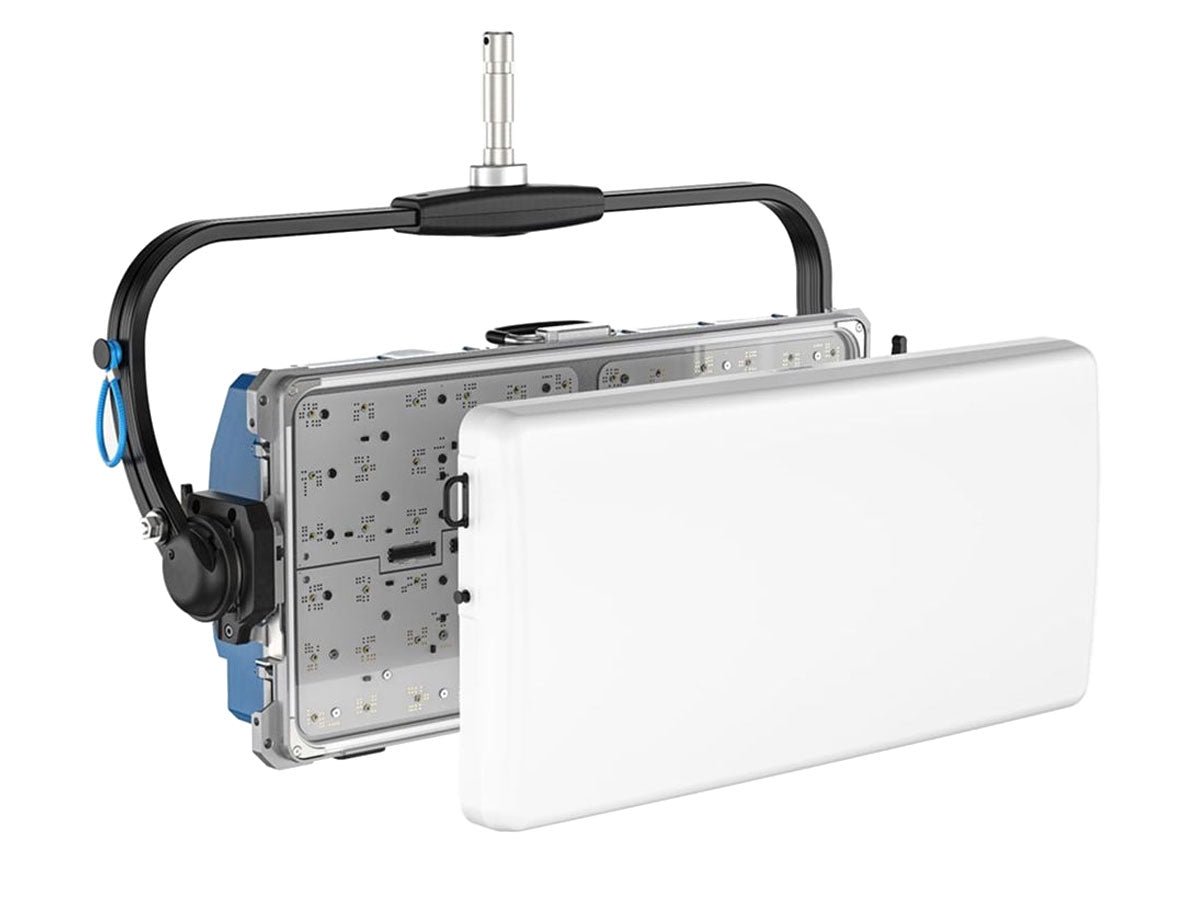

- 1x L1.0048487 SkyPanel X, incl. X21 Dome
- 1x L2.0048844 ALL-WEATHER Control Panel
- 1x L2.0048577 X21 Manual Yoke incl. Spigot
- 1x L2.0007516 Mains cable, 3m, powerCON TRUE1 TOP Schuko
