Arri SkyPanel X21 Including X21 Dome
Arri SkyPanel X21 Including X21 Dome
SKU:
ARR-L1.0048487
Regular price
£4,550.00 GBP ex VAT
£5,460.00 GBP inc VAT
£5,460.00 GBP inc VAT
Regular price
ex VAT
Sale price
£4,550.00 GBP ex VAT
£5,460.00 GBP inc VAT
Unit price
per
£5,460.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
SkyPanel X - Reach beyond the Sky
Introduced as a modular system and configurable into different sizes (X21, X22, X23), SkyPanel X offers native soft and hard light technology, setting a new bar not only in terms of dimming and colour science but also in lux output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K - 20,000 K; RGBACL full-spectrum colour engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to existing workflows.
Introduced as a modular system and configurable into different sizes (X21, X22, X23), SkyPanel X offers native soft and hard light technology, setting a new bar not only in terms of dimming and colour science but also in lux output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K - 20,000 K; RGBACL full-spectrum colour engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to existing workflows.
The all-weather SkyPanel X
The SkyPanel X is your all-weather lighting solution. Engineered and IP66-certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.
The SkyPanel X is your all-weather lighting solution. Engineered and IP66-certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.
Choose your soft light LED panel solution with SkyPanel X
Continue your established SkyPanel practices via the S60 Adapter, or streamline with the simplified X21 Dome workflow.
Continue your established SkyPanel practices via the S60 Adapter, or streamline with the simplified X21 Dome workflow.
Maximize brightness with enhanced output, meeting all shadow quality and beam spread requirements
Ensure unparalleled colour precision within a 1,500 K - 20,000 K CCT range
Benefit from flicker-free high resolution for superior low-end dimming, plus the benefits of High Output Mode
Configure SkyPanel X as a 2:1, 2:2, or 2:3 panel ratio for wide-aperture soft lighting
Take advantage of 8 individually controllable pixel zones per single unit for diverse texturized effects
Use existing SkyPanel S60-C accessories on SkyPanel X with the optional S60 Adapter
Ensure unparalleled colour precision within a 1,500 K - 20,000 K CCT range
Benefit from flicker-free high resolution for superior low-end dimming, plus the benefits of High Output Mode
Configure SkyPanel X as a 2:1, 2:2, or 2:3 panel ratio for wide-aperture soft lighting
Take advantage of 8 individually controllable pixel zones per single unit for diverse texturized effects
Use existing SkyPanel S60-C accessories on SkyPanel X with the optional S60 Adapter
Fast, beautiful, native soft light

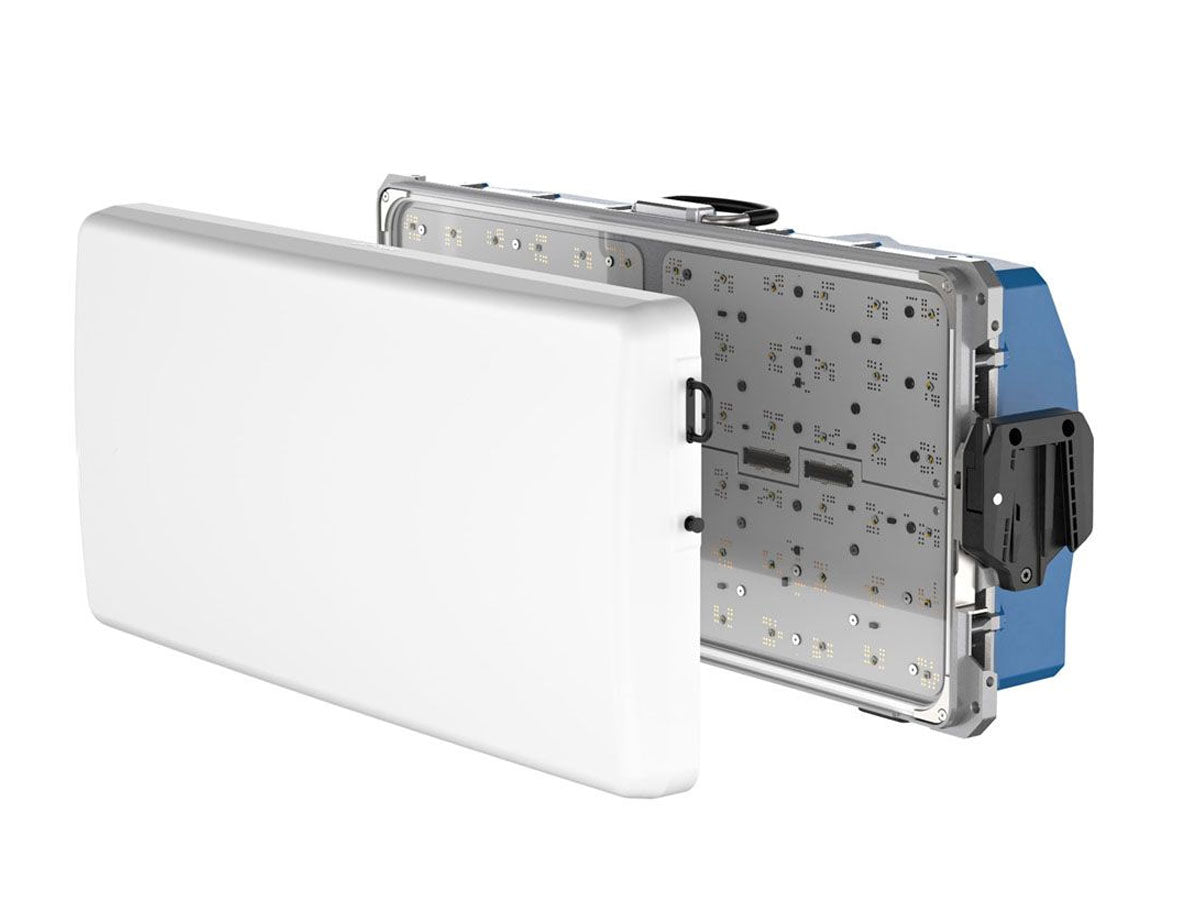

The X21 Dome is a hot-swappable diffuser specifically optimized for SkyPanel X. It is included with every lamphead. Two units are needed for its use with X22; three for X23. The X21 Dome offers the easiest workflow for transforming the SkyPanel X into a powerful native softlight, since its installation takes no more than 2 seconds and is fully compatible with all DoPchoice and Chimera accessories designed for SkyPanel X.
The X21 Dome is a hot-swappable diffuser specifically optimized for SkyPanel X. It is included with every lamphead. Two units are needed for its use with X22; three for X23. The X21 Dome offers the easiest workflow for transforming the SkyPanel X into a powerful native softlight, since its installation takes no more than 2 seconds and is fully compatible with all DoPchoice and Chimera accessories designed for SkyPanel X.
FEATURES
- Fits perfectly the front of the SkyPanel X
- Durable plastic material
- Includes eyelets for safety wires
| Power: | 800 W |
| Format Size: | 2:1 (horizontal) |
| Light Engines: | 4 |
| Pixel Zones: | 8 max. |
| Max. Output (Lux): | 4,800 Lux @ 10 m, 5,600 K (native hard) |
| Max Output (Lumen): | 51,809 Lumen (native open-face) |
| AC Voltage: | 100 - 240 V~, 50/60Hz |
| PSU: | Integrated |
| LED Engine: | Full Spectrum, 6-color RGBACL LED |
| Native Quality: | Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face |
| CCT Range: | 1,500 K - 20,000 K |
| CRI: | 90 min. / 99 max. (High CRI VariFan mode) |
| TLCI: | 93 typical (High CRI VariFan mode) |
| Camera Sensor Matching: | Yes, via ARRI ALEXA Mode |
| Dimming Performance: | Flicker free, High-res low end dimming |
| Native Beam Angle: | 11º (hard), 106º (soft), 120º (open-face) |
| Difffuser Options: | X21 Dome, Beam Enhancer filter, S60-C diffusers |
| Accessory Compatibility: | All SkyPanel S60-C accessories via S60 Adapter |
| Type of Display: | Removable ALL-WEATHER Control Panel with LiOS3 |
| Operational Modes: | Standard (low noise), High Output, VariFan, ARRI ALEXA |
| Colour Modes: | CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching |
| DMX Presets: | Yes, via Control Panel, RDM and DMX-512A |
| Legacy DMX Modes: | Compatible with S60-C mode 2 and 6 |
| Multi-Array Setup: | Yes (up to 3 units in just one single DMX profile) |
| High-Speed Mode: | Yes |
| IP Rating: | IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity) |
| Cooling System: | Passive + Active cooling system with double heat sink |
| Integrated Wired Control: | DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP) |
| Integrated Wireless Control: | CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0 |
| Daisy-Chain Modularity: | Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data) |
| Pre-Programmed Effects: | 15 Pixel Macros, 15 effects |
| Warranty: | 3 years |
| Max. Ambient Temperature: | 40ºC |
| Certifications: | pending: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, PSE, KC, SRRC and more |
| Dimensions (Fixture Only): | 738 x 339 x 154 mm / 29.1 x 13.3 x 6.1 in |
| Weight (Fixture Only): | approx. 15 kg / 33 lb |
| Weight (With Yoke): | approx. 18 kg / 39.7 lb |
