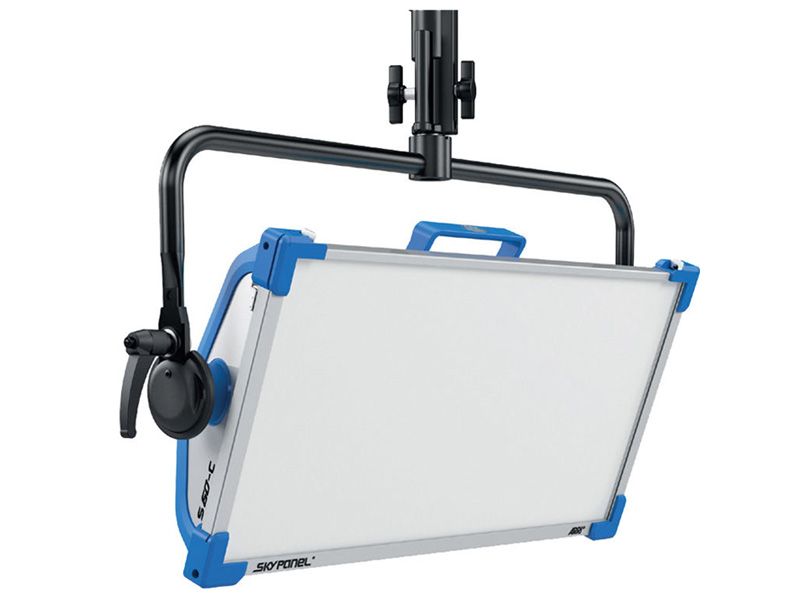

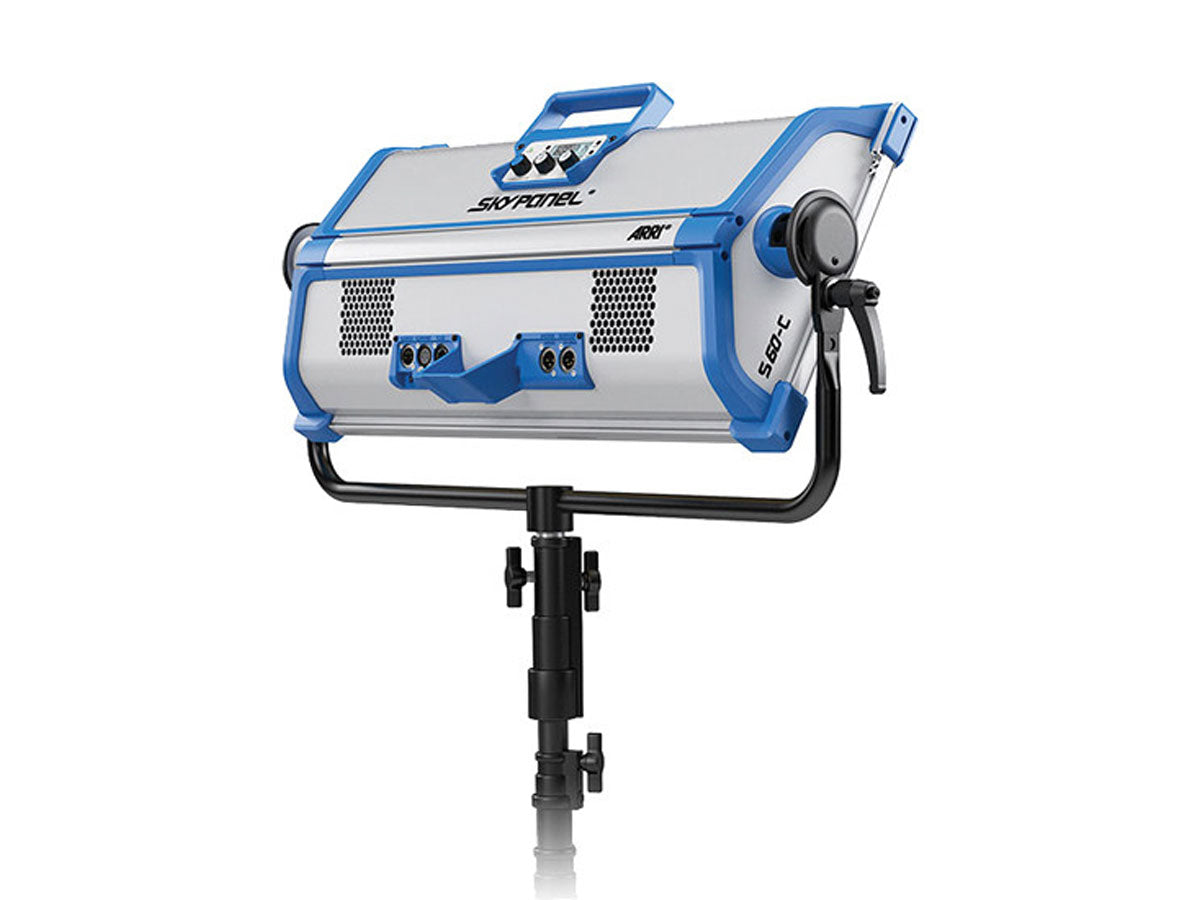

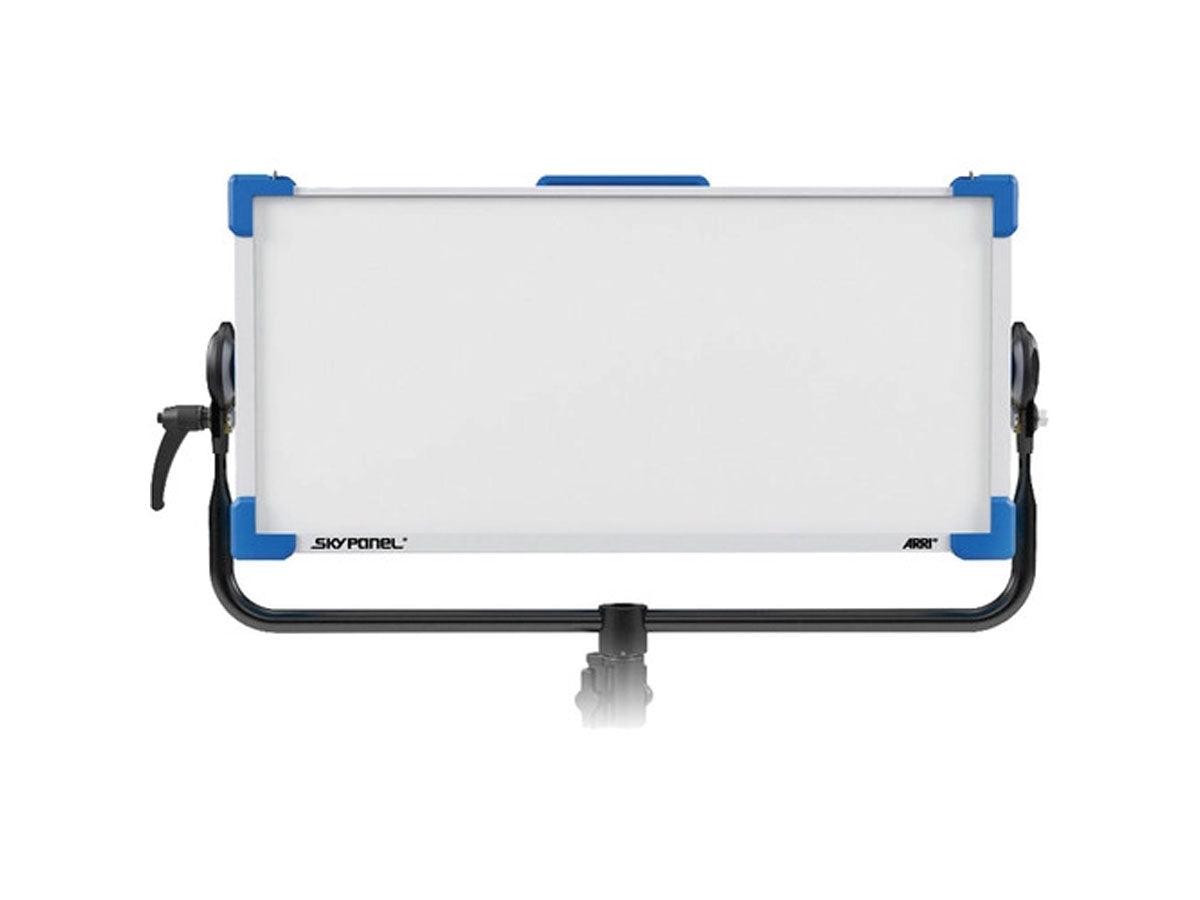

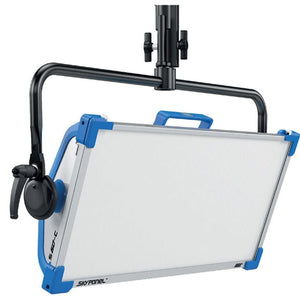

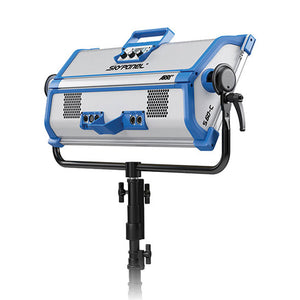

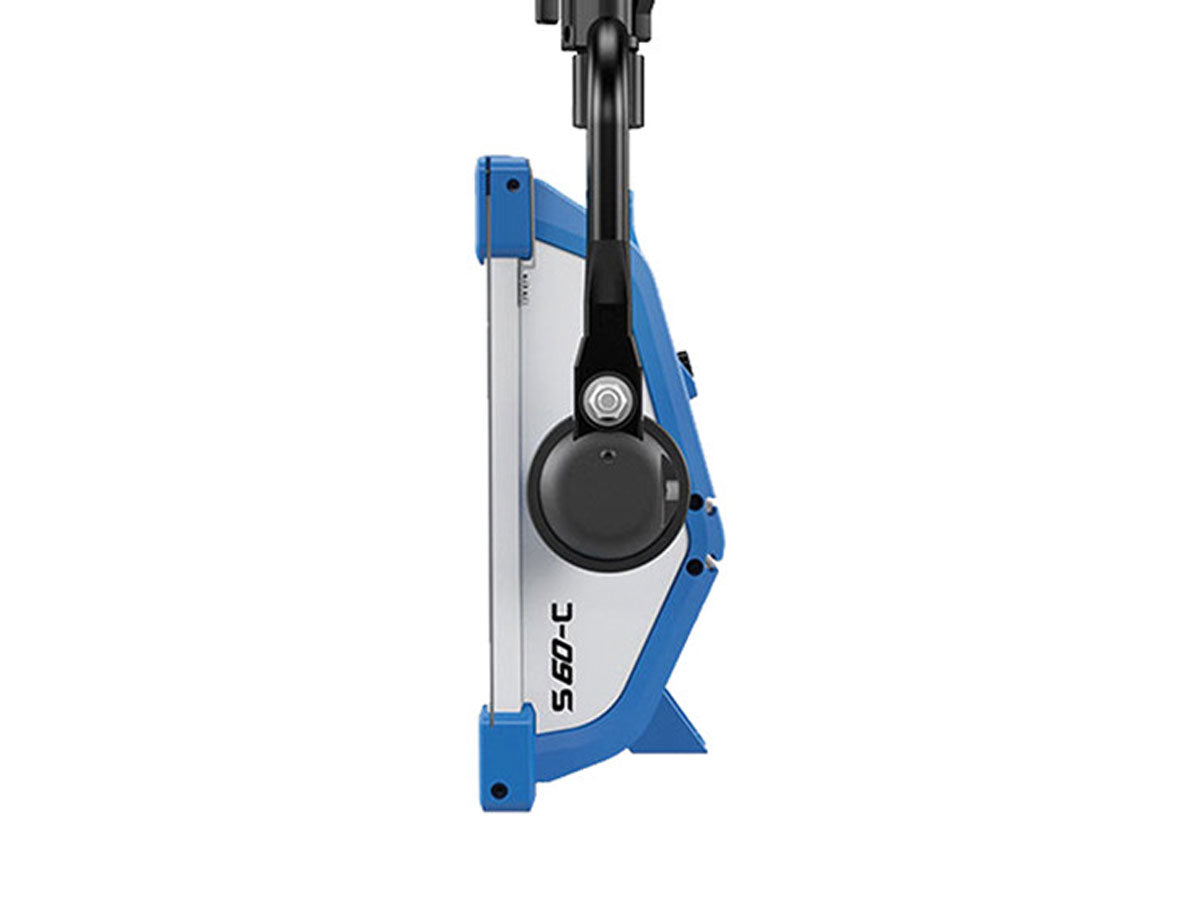

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, colour, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI.
SkyPanel will initially be available in two sizes: the S60 and S30. The S60 is a midrange model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile app ications. Both models are available in fully color tuneable and remote phosphor versions.
Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Colour) versions are fully tuneable; correlated colour temperature is adjustable between 2,800 K and 10,000 K, with excellent colour rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible.
Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and colour gives users an unprecedented amount of control.
Lamp-head | S60-C |
| Optical System: | Soft Diffusion Panel |
| Light Aperture: | 645 x 300 mm / 25.4 x 11.8″ |
| Beam Angle: | 115º (Half Peak Angle) |
| Weight: | Manual Version: approx. 13 kg / 29 lbs Pole Op Version: approx. 14 kg / 31 lbs |
| Packed Weight: | Manual Version: approx. 21 kg / 46 lbs Pole Op Version: approx. 22 kg / 49 lbs |
| Size w/ spigot (H x W x L): | 566 x 133 x 825 mm / 22.3 x 5.2 x 32.5″ |
| Size w/o spigot (H x W x L): | 433 x 133 x 825 mm / 17 x 5.2 x 32.5″ |
| Packed Size (H x W x L): | 460 x 300 x 856 mm / 18 x 11.8 x 33.7″ |
| Handling: | Aluminium Yoke, High Strength Tilt Lock Pole Operation Option (Pan & Tilt) |
| Mounting: | 28 mm Spigot (Junior Pin) |
| Tilt Angle: | +/- 90º |
| Lamp-head Voltage Input: | 48 V DC |
| Power Consumption: | 420 W Nominal, 450 W Maximum |
| Lamp-head Power Connection: | Male 3-Pin XLR – 15 Amp (Pin 1: Negative / Pin 2: Positive) |
| Battery Connector: | Male 4-Pin XLR – 10 Amp (Pin 1: Negative / Pin 4: Positive) |
| Battery DC Voltage Range: | 23 to 36 V DC |
| Battery Mode Light Output: | 50 % of total output |
| White Light: | 2,800 K to 10,000 K continuously variable correlated colour temperature |
| Coloured Light: | Full RBG+W colour Gamut with Hue and Saturation Control |
| Colour Temperature Tolerance: | +/-100 K (nominal), +/-1/8 Green-Magenta (nominal) |
| Colour Rendition: | CRI Average > 95 TLCI Average > 90 |
| Green-Magenta Adjustment: | Continuously adjustable (Full Minusgreen to Full Plusgreen) |
| Dimming: | 0 to 100 % continuous |
| Control: | On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net |
| Remote Device Management (RDM*): | DMX Setup, Hour Counter and Standard RDM Commands |
| Software Interface: | Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software upgrade via flash drive |
| Housing Color: | Blue/Silver, Black |
| Ambient Temperature Operation: | -20 to +45ºC / -4 to +113ºF |
| Protection Class / IP Rating: | III / IP20 |
| Estimated LED Lifetime (L70): | 50,000 hours |
| Estimated Colour Shift Over Lifetime | +/- 5 % |
| Certifications: | CE, CB, ENEC, cNRTLus, FCC, PSE |
| Power Supply Unit | S60 PSU |
| Power Supply Input Range: | 110 to 240 V ~, 50/60 Hz |
| Power Supply Output Range: | 48 V DC |
| Power Input Connection: | powerCON TRUE1 (Bare Ends / Schuko / Edison cables available) |
| Power Output Connection: | Female 3-Pin XLR – 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through) |
| Weight: | 15 kg / 33 lbs |
| Dimension: | 383 x 191 x 91 mm / 15 x 7.5 x 3.6″ |
| Control: | On-Board On/Off Switch |
| Mounting: | Skypanel PSU Super Clamp Adapter / Rail Mount Adapter |
| Certifications: | CE, CB, ENEC, cNRTLus, PSE |
| * RDM Available in Future Firmware | Note: All specifications are nominal / typical values. |
