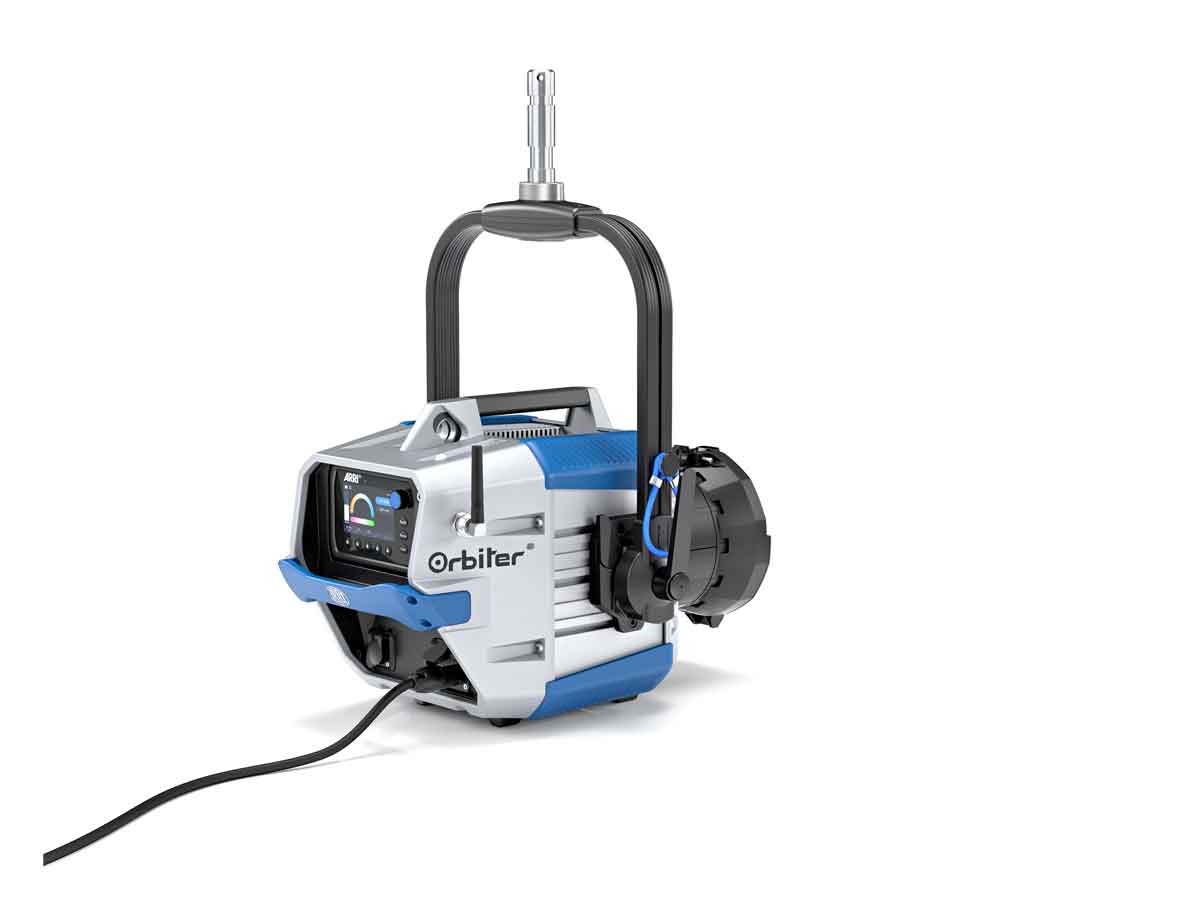

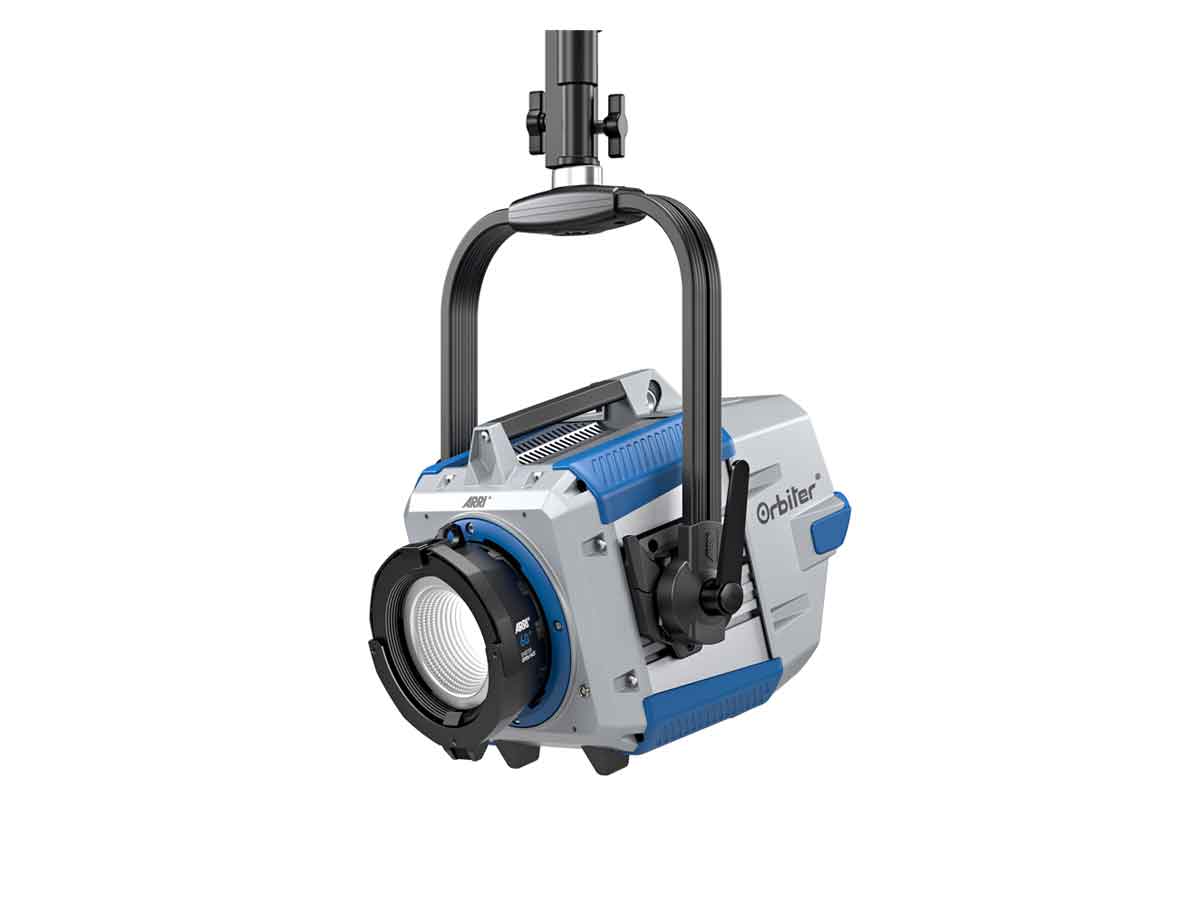

Orbiter is an ultra-bright, tunable and directional LED fixture from ARRI. All systems in Orbiter are completely new and designed with versatility in mind. Orbiter's new six-colour light engine delivers a wide-colour gamut and outstanding colour rendition across all colour temperatures along with industry-leading, smooth dimming 100% to 0%. With its changeable optics, Orbiter can transform into many different types of lampheads including projection (profile), open face, soft light, and other future possibilities. Orbiter's state-of-the-art technology and versatile design makes it an optimal lamphead for today and for the future endless possibilities for updates, configurations and enhancements.
A Wide Variety of Changeable Optics
Changeable optics is the core innovation in Orbiter. With a wide variety of optics to choose from, Orbiter transform into the perfect light for your application without sacrificing beam, outputm or colour quality. The Quick Lighting Mount (QLM) in Orbiter allows for optics with vastly different properties to be connected to the fixture.
Say Hello to ARRI Spectra: State-of-the-art, six-colour LED Light Engine
ARRI is known for creating high-quality lighting products. With the new ARRI Spectra light engine in Orbiter, this commitment is being taken to the next level. Including a red, green, blue, amber, cyan, and lime LED, the ARRI Spectra six-colour light engine translates into a wider colour gamut, more accurate colours, and most importantly, higher colour rendition across the entire CCT range. Skin tones look amazing and natural, hues are precisely reproduced and the gamut allows for 15% more colours to be created than previous ARRI light engines. Orbiter has a larger CCT range of 2,000 to 20,000 K with ultra-high colour rendition across all colour temperatures. This next generation in colour control will open up new possibilities and produce better colours than ever before.
| Optical System | Changeable optics |
| Light Aperture | 45mm / 1,78" |
| Beam Arrgle | 80° Half Peak Angle, without optics |
| Weight | Manual Version: approx. 15 kg / 33 lbs |
| Pole Op Version: approx. 16 kg / 37 h35 | |
| Handling | Aluminium yoke with quick release, high strength tilt lock, pole operation option (pan and tilt) |
| Mounting | 28mm Spigot (Junior Pin) |
| Tilt Angle | +/-90° |
| Voltage Input Range | 100- 260 V, 50 - 60 Hz |
| Power Consumption | 400W Nominal. 500W Maximum |
| Mains Power Consumption | powerCON TRUE1 TOP (Bare Ends / Schuko / Edison, Japanese, Chinese cables available) |
| Battery Connector | 3-Pin XLR Connector |
| Battery BC Voltage Range | 48 V. |
| White Light | 2000K to 20,000K continuously variable correlated colour temperature |
| Colour Modes | Wide colour gamut |
| Colour Modes: CCT, HSI, individual colour, gel selection, x/y coordinates, source matching, lighting effects, and colour sensor mode | |
| Colour Temperature Tolerance | 1200 to 5,600 K: +/- 100K (nominal), +/-1/8 Greer-Magente. (nominal) |
| Colour Rendition | CRI Average > 98 |
| TLCI Average > 95 | |
| TM-30 Average > 94 | |
| Creen-Magenta Adjustment | Continuously adjustable (Mull Minusgreen to Full Plusgreen) |
| Dimming | Smooth, 100-0%, continuously |
| Connectivity | Removable Control Panel via PoE, 5-Pin DMX in and through, Ethernet in and through, |
| 2 x USB-A. USB-C, SD Card, Sync Input, LumenRadio CRMX (DMX & RDM) | |
| Remote Device Management (RDM) | Full E1.20 RDM standard Implementation with custom & standard RDM commands. |
| Housing Colour | Blue/ Silver, black |
| Ambient Temperature Operation | -20 to +45°C (-4 to +113°F) |
| Protection Class/ IP Rating | I/weatherproof |
| Estimated LED Lifetime (L70) | 50,000 hours |
| Estimated Colour Shift Over Lifetime (CCT) | +/-5% |
