Aputure F10 Fresnel
Aputure F10 Fresnel
SKU:
APU-6971842181315
Regular price
£145.00 GBP ex VAT
£174.00 GBP inc VAT
£174.00 GBP inc VAT
Regular price
ex VAT
Sale price
£145.00 GBP ex VAT
£174.00 GBP inc VAT
Unit price
per
£174.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

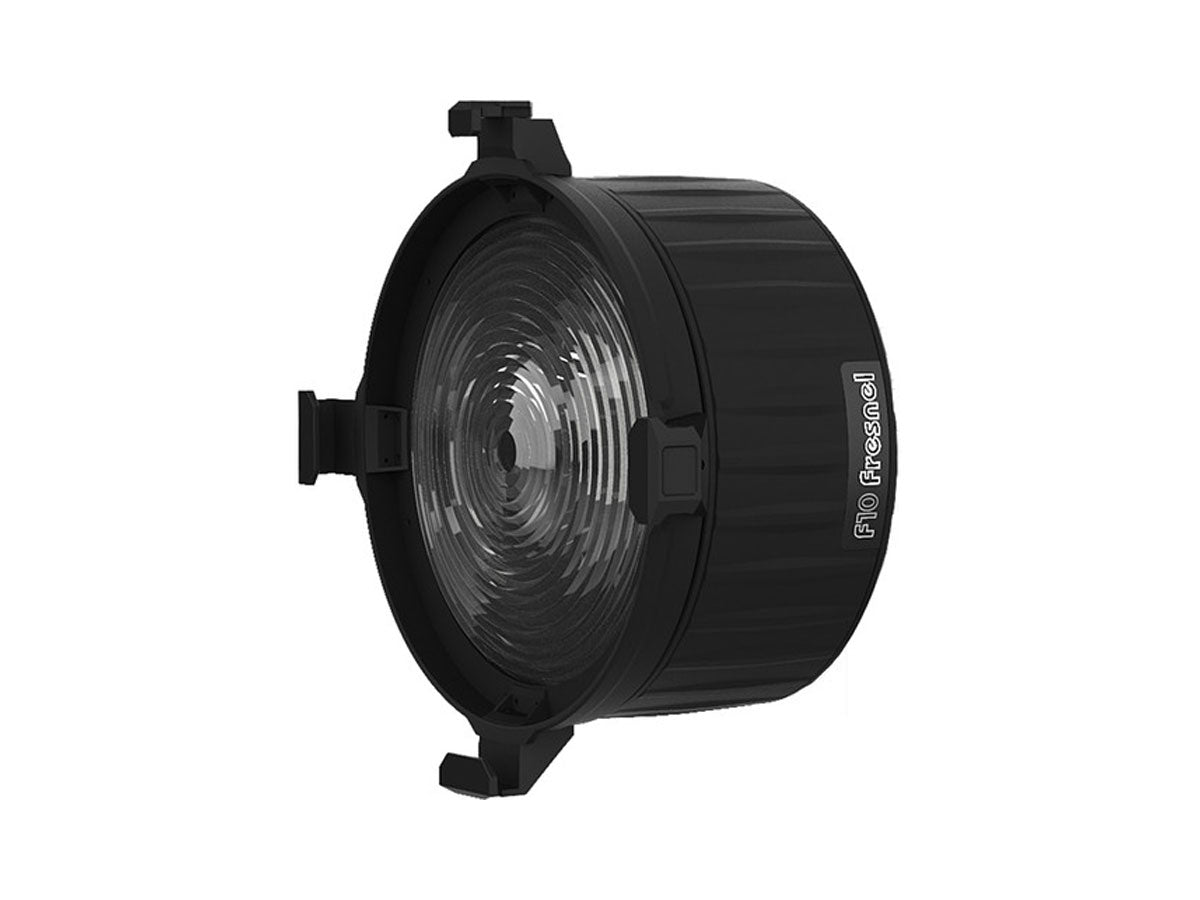

The Aputure F10 Fresnel is the first Bowens Mount Fresnel on the market made to match the size of traditional 10-inch Fresnel lights like a tungsten 5K, with a 250mm diameter lens made of real glass. The size of this Fresnel allows filmmakers to get punchy hard-light that maintains a subtle soft quality that is perfect for dramatic expression.

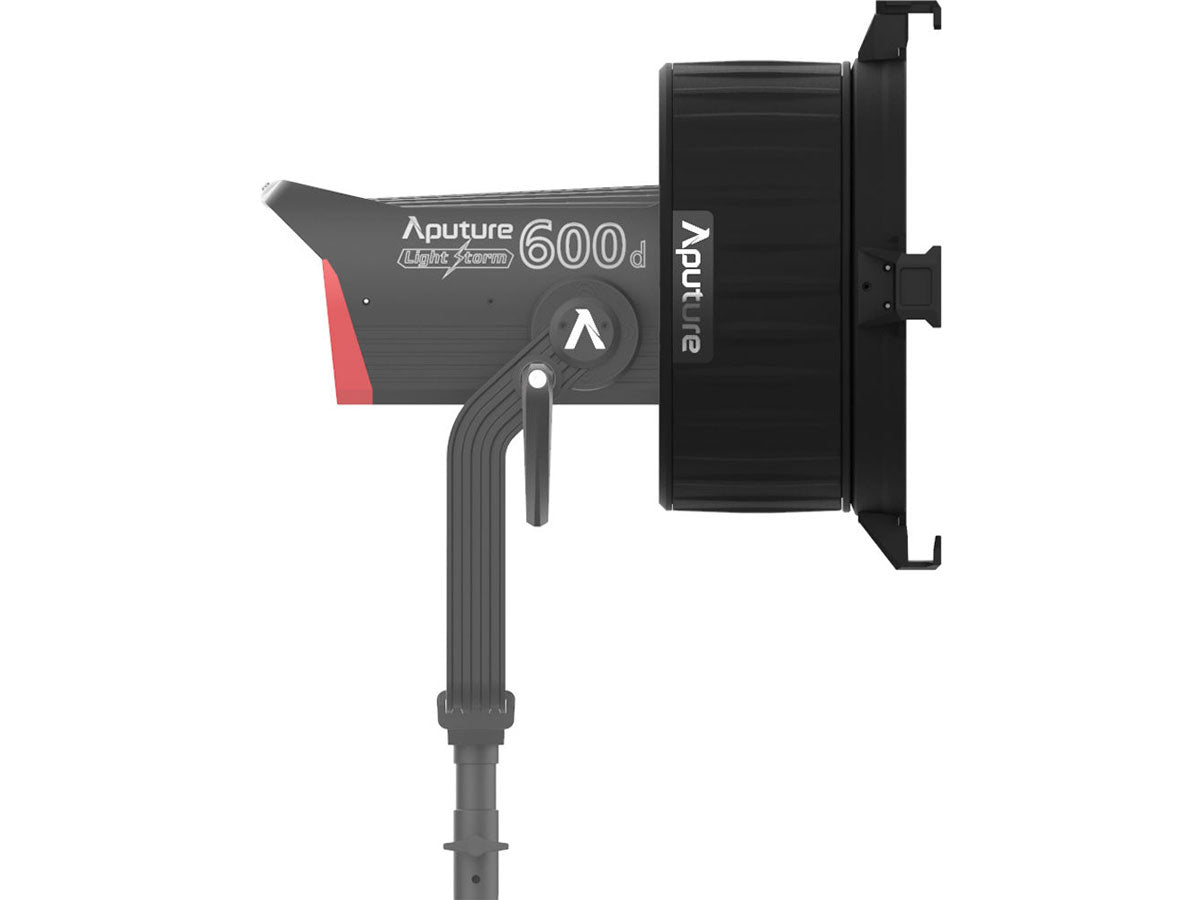

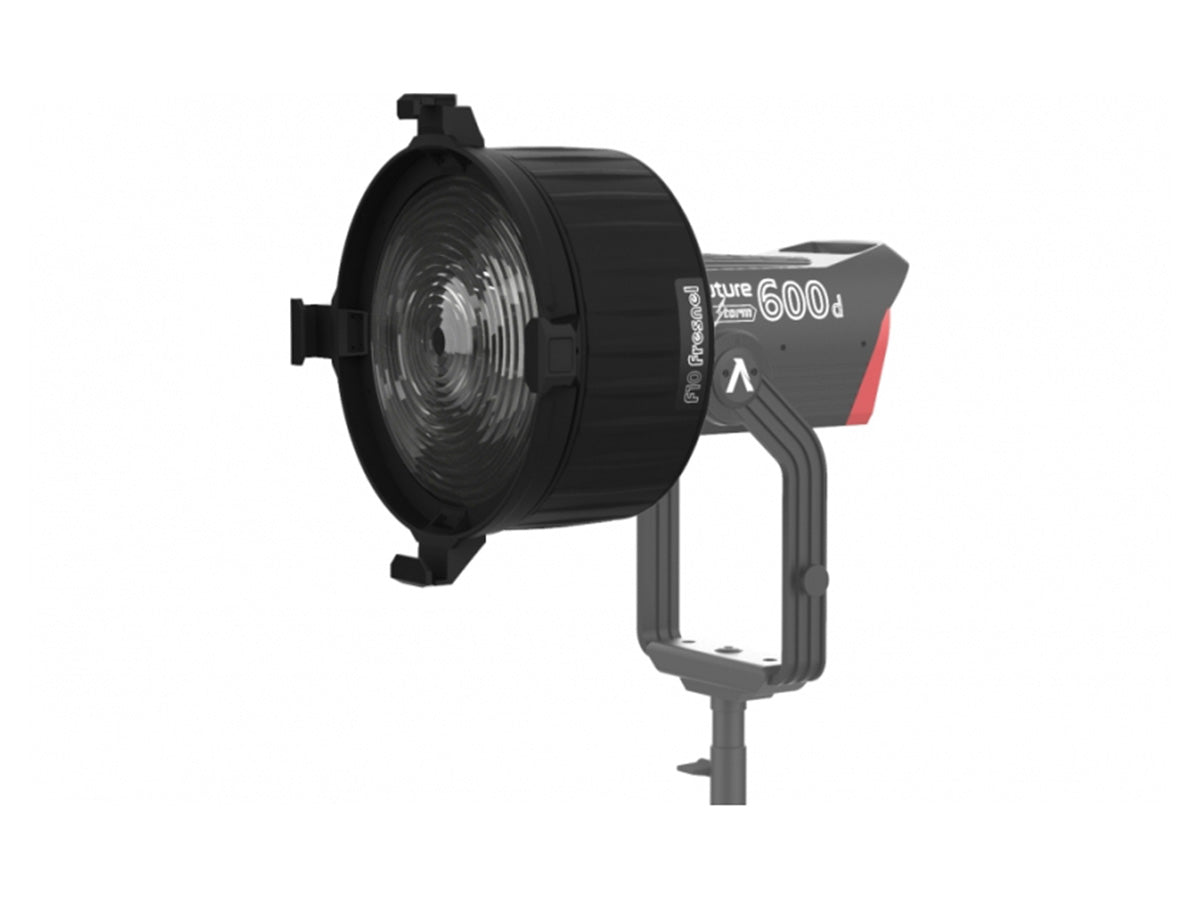

As an Aputure Fresnel, this modifier also uses dual-lens optical design, utilizing a condenser lens to refocus the light from a flat-chip COB LED to optimize it for the front Fresnel element, further enhancing the fixture’s illuminance. When combined with the Aputure LS 600d Pro, the fixture can output over 29,300 lux at 3 meters.
To ergonomically and precisely adjust its variable 15°-45° beam angle, the F10 Fresnel uses Aputure’s helicoid focus design from the Fresnel 2X. The F10 also incorporates a ventilation design that prevents the COB from overheating, while also minimizing any light leaks.
The drop-in accessory slot is compatible with Aputure’s F10 Barn Doors, which provide 8 leaves made to properly cut light from the large Fresnel.
- Up to 29,300+ lux @ 3 Meters with the Aputure LS 600d Pro (15° Spot Beam Angle)
- 15°-45° Spot-Flood Variable Beam Angle
- 10" (250mm) Glass Fresnel Lens: The surface area of the 10" front Fresnel element matches larger traditional Fresnel fixtures like tungsten 5Ks. The larger lens can even increase the output lux up to 10 times.
- Dual Lens Optical System for Maximum Light Output: A rear optical element optimizes the beam angle of a flat-chip point-source LEDs for the front Fresnel lens.
- Compatible with the Bowens Mount LED lights, such as the Aputure LS 600d Pro, 300d II, 300x, 120d II, etc.
- Compatible with F10 Barn Doors: Utilizing a die-cast metal front ring and drop-in accessory slot to makes it compatible with the F10 Barn Doors.
- Seamless, Ergonomic Focusing: The F10 Fresnel uses the same helicoid focusing mechanism found on the Fresnel 2X, for a smooth, precise spot/flood experience.
- Heat-resistant Design: Composed of durable, heat-resistant materials, the F10 Fresnel can withstand the high-wattage point-source lights like the LS 600d Pro.
- Durable Carrying Bag: The F10 Fresnel comes packaged inside an specially designed padded fabric carrying bag.
| Fresnel Lens Diameter: | 250mm / 9.843in | |
| Accessory Slot Diameter: | 332.88mm / 13.106in | |
| Accessory Mount: | Bowens Mount | |
| Dimensions: | Collapsed (Flood 45°): | 346 x 340.46 x 172.48mm 13.622 x 13.404 x 6.79in |
| Extended (Spot 15°): | 346 x 340.46 x 250.35mm 13.622 x 13.404 x 9.856in | |
| Carrying Bag: | φ390 x H190mm φ15.354 x H7.480in | |
| Weight: | F10 Fresnel: | 3850g / 8.488lbs |
| Carrying Bag: | 1800g / 3.968lbs | |
- 1 x F10 Fresnel
- 1 x F10 Fresnel Carrying Bag
