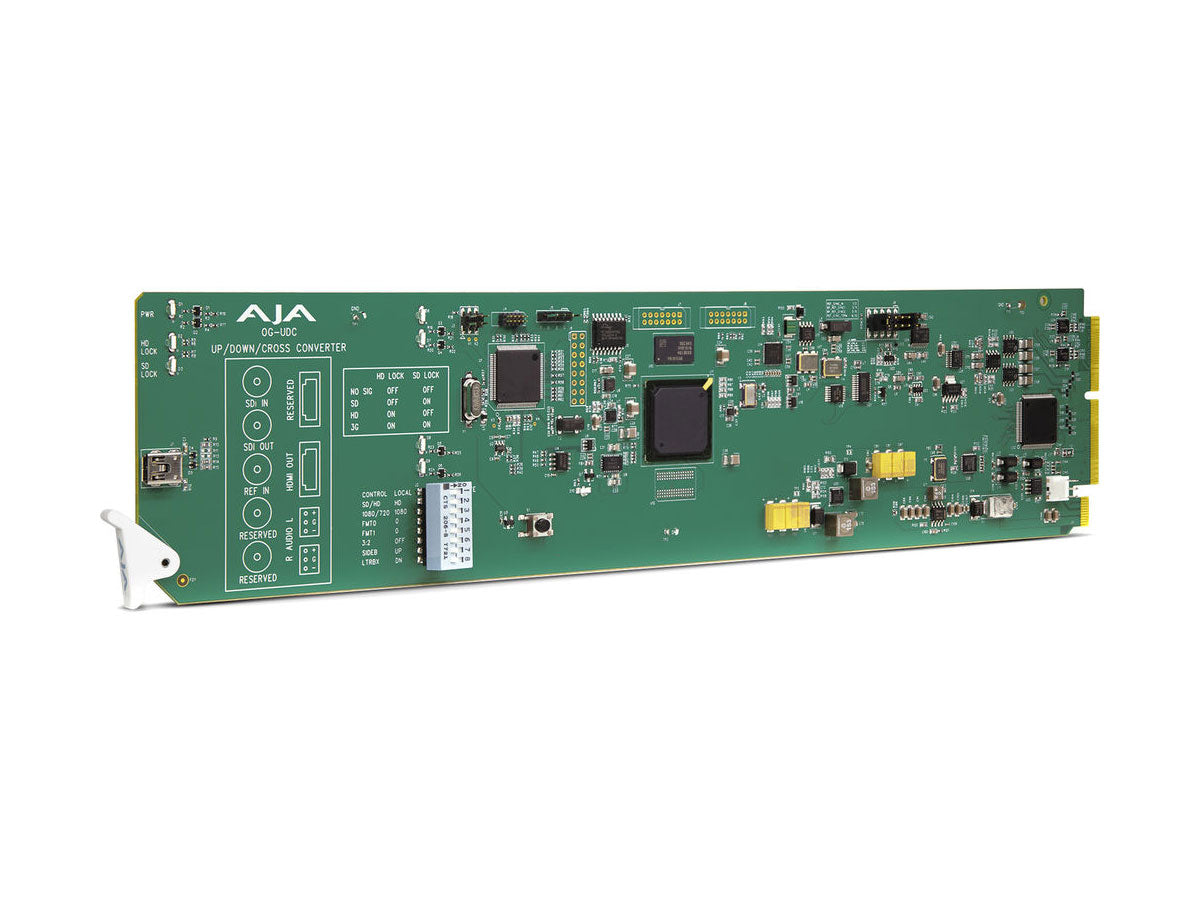

AJA OG-UDC (OGUDC) 3G-SDI Up, Down, Cross-Converter with Dashboard Support
AJA OG-UDC (OGUDC) 3G-SDI Up, Down, Cross-Converter with Dashboard Support
SKU:
AJA-OG-UDC
Regular price
£750.00 GBP ex VAT
£900.00 GBP inc VAT
£900.00 GBP inc VAT
Regular price
ex VAT
Sale price
£750.00 GBP ex VAT
£900.00 GBP inc VAT
Unit price
per
£900.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
AJA OG-UDC (OGUDC) 3G-SDI Up, Down, Cross-Converter with Dashboard Support. OG-UDC is an openGear 10-bit broadcast quality up, down, cross-converter that bridges HD and SD video resolutions. The OG-UDC provides 3G-SDI input and output, HDMI output and two 3-pin terminal block connectors for analog audio Outputs.
Designed for use in high density openGear 2RU frames including AJA’s OG-3-FR 2RU frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
- openGear compatible card
- Converts between SD, HD, and 3G HD formats
- Supports 1080p50/60
- Controlled by DashBoard network control software and external DIP switch
- 2x 3-Pin Terminal Block connectors (included)
- 16-channel embedded SDI audio input and output
- Reference Input
- Use with openGear 2RU frames including AJA’s OG-3-FR frame
- Five year warranty
| Video Formats | (2K) 2048 x 1080p |
| (2K) 2048 x 1080PsF | |
| (HD) 1920 x 1080p | |
| (HD) 1920 x 1080PsF | |
| (HD) 1920 x 1080i | |
| (HD) 1280 x 720p | |
| (SD) 720 x 625i | |
| (SD) 720 x 576i | |
| (SD) 720 x 480i | |
| Video Input Digital | 1x 3G-SDI BNC, SMPTE-259/292/372/424 |
| (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | |
| (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 | |
| (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | |
| (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 | |
| (HD) 1920 x 1080i 50, 59.94, 60 | |
| (HD) 1280 x 720p 50, 59.94, 60 | |
| (SD) 720x576i 50, 59.94, 60 | |
| Video Output Digital | 1x 3G-SDI BNC, SMPTE-259/292/372/424 |
| (HD) 1080p 23.98 (for 23.98 video inputs) | |
| (HD) 1080p 24 (for 24 video inputs) | |
| (HD) 1080p 25 (for 50 video inputs) | |
| (HD) 1080p 29.97 (for 59.94 video inputs) | |
| (HD) 1080p 30 (for 60 video inputs) | |
| (HD) 1080p 50 (for 50 video inputs) | |
| (HD) 1080p 59.94 (for 23.98, 59.94 video inputs) | |
| (HD) 1080p 60 (for 24, 30 or 60 video inputs) | |
| (HD) 1080PsF 23.98 (for 23.98 video inputs) | |
| (HD) 1080PsF 24 (for 24 video inputs) | |
| (HD) 1080PsF 25 (for 50 video inputs) | |
| (HD) 1080PsF 29.97 (for 59.94 video inputs) | |
| (HD) 1080Psf 30 (for 30 or 60 video inputs) | |
| (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs) | |
| (HD) 1080i 60 (for 24, 30, or 60 video inputs) | |
| (HD) 1080i 50 (for 25 or 50 video inputs) | |
| (HD) 720p 50 (for 50 video inputs) | |
| (HD) 720p 59.94 (for 23.98, 59.94 video inputs) | |
| (HD) 720p 60 (for 24, 30, or 60 video inputs) | |
| (SD) 625i 50 (for 25 or 50 fps video inputs). | |
| (SD) 525i 59.94 (for 23.98 or 59.94 video inputs) | |
| Reference Input | Supported reference video inputs include: |
| 1080i tri-level sync | |
| 1080p tri-level sync | |
| 720p tri-level sync | |
| 625i Colour Black | |
| 525i Colour Black | |
| 75 ohm terminating | |
| HDMI Output | 10-bit HDMI v1.4a |
| Audio I/O | 16-Channel embedded SDI audio input |
| 16-Channel embedded SDI audio output | |
| 8-Channel HDMI audio output | |
| Balanced analog audio outputs, 2x 3-Pin terminal blocks connectors | |
| Environment | |
| Safe Operating Temperature | 0 to 40 C (32 to 104 F) |
| Safe Storage Temperature (Power OFF) | -40 to 60 C (-40 to 140 F) |
| Operating Relative Humidity | 10-90% noncondensing |
| Operating Altitude | <3,000 meters (<10,000 feet) |
- 1x 3G-SDI Up, Down, Cross-Converter with Dashboard Support
