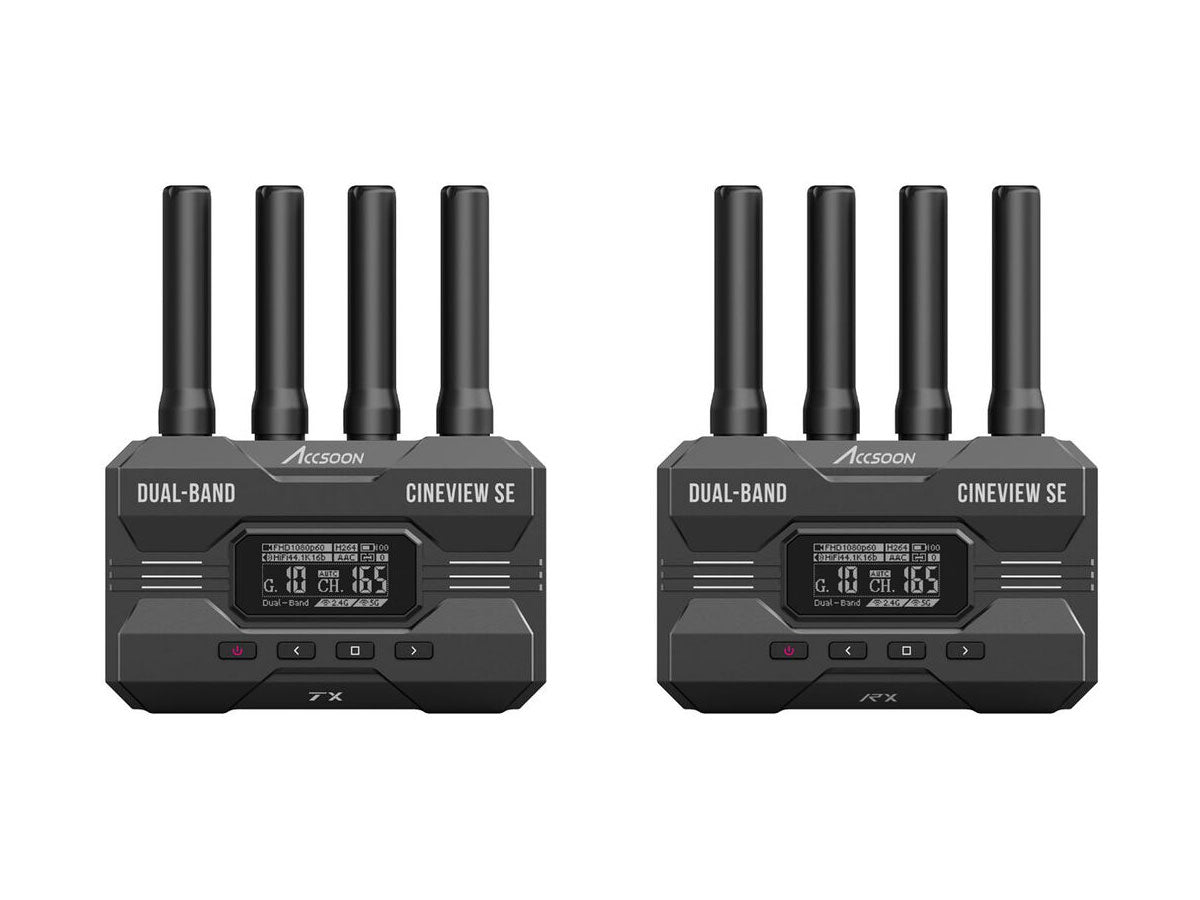

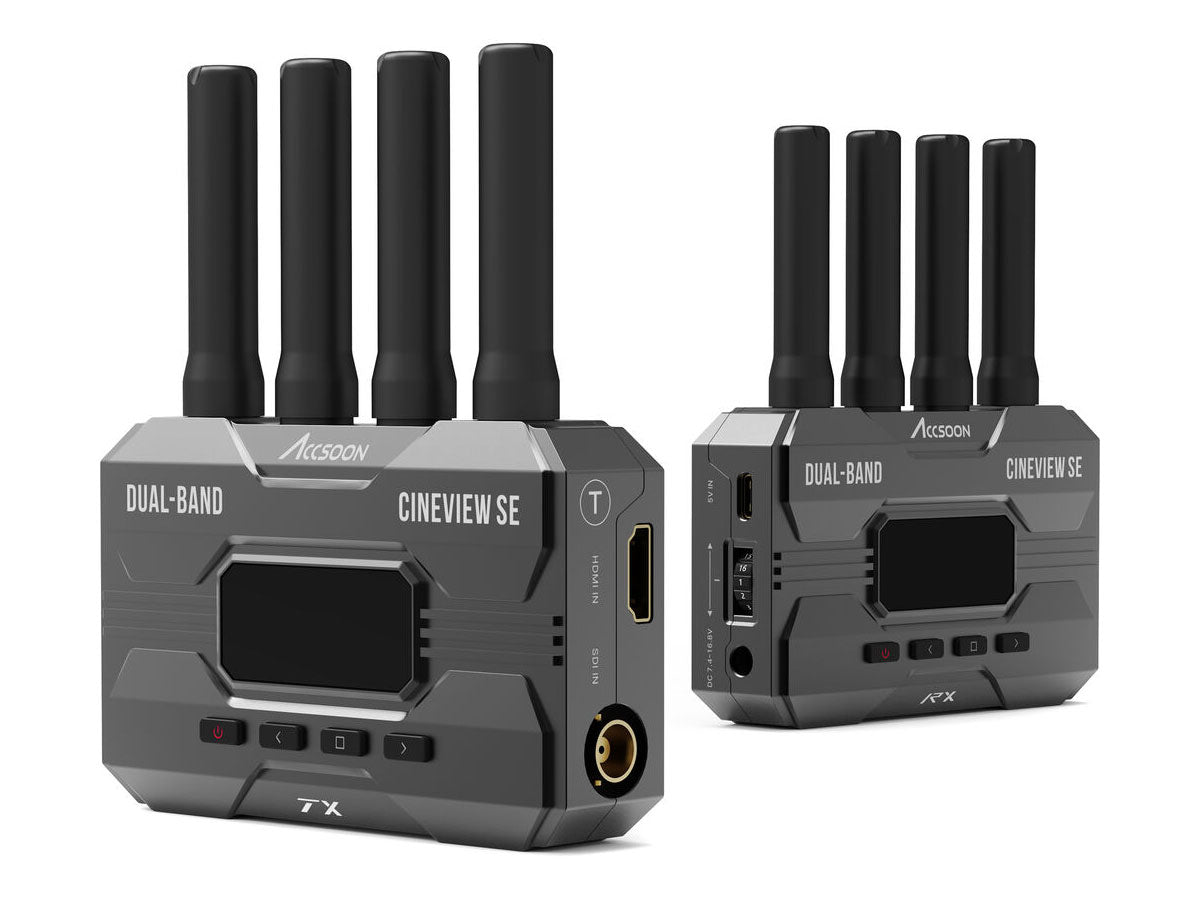

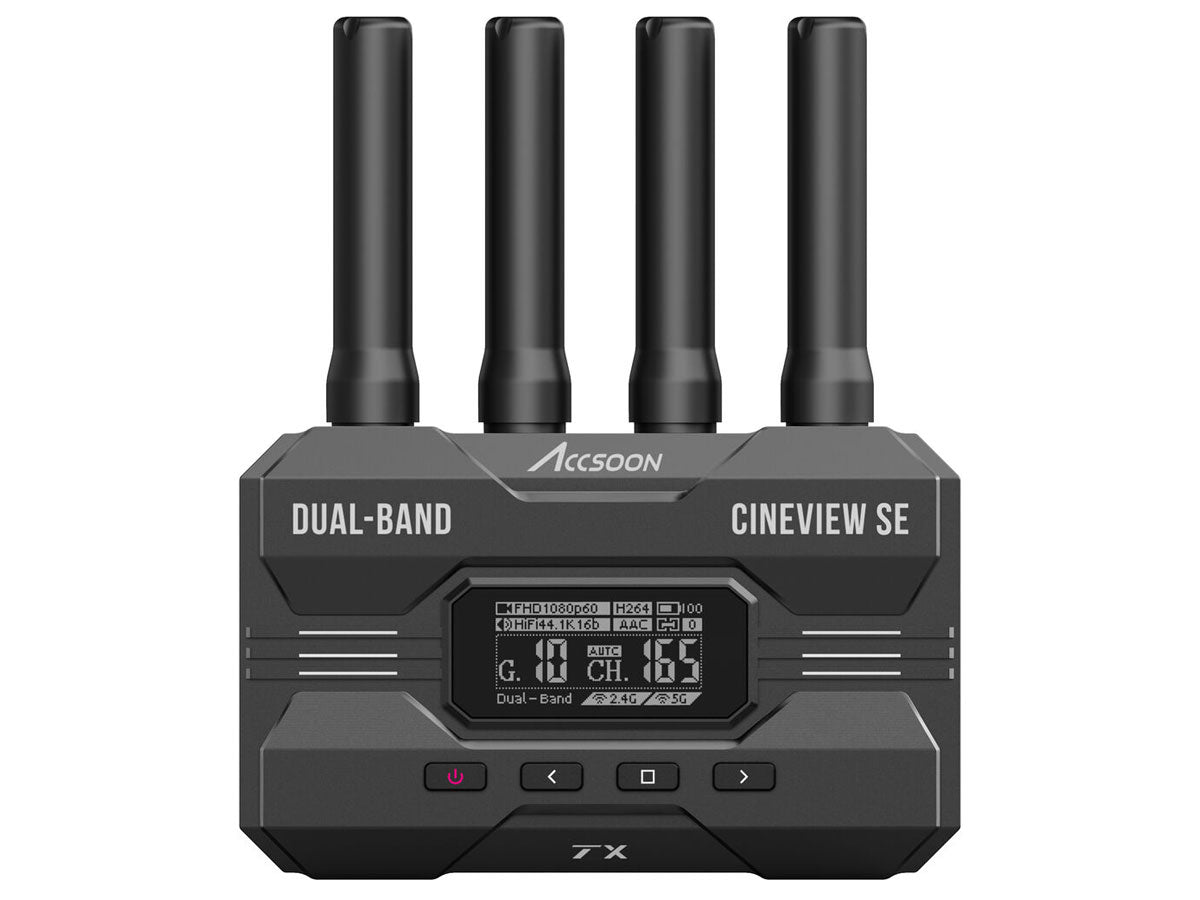

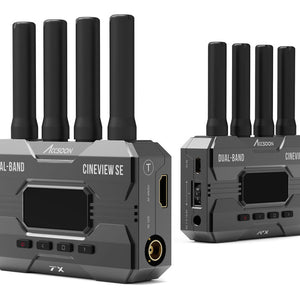

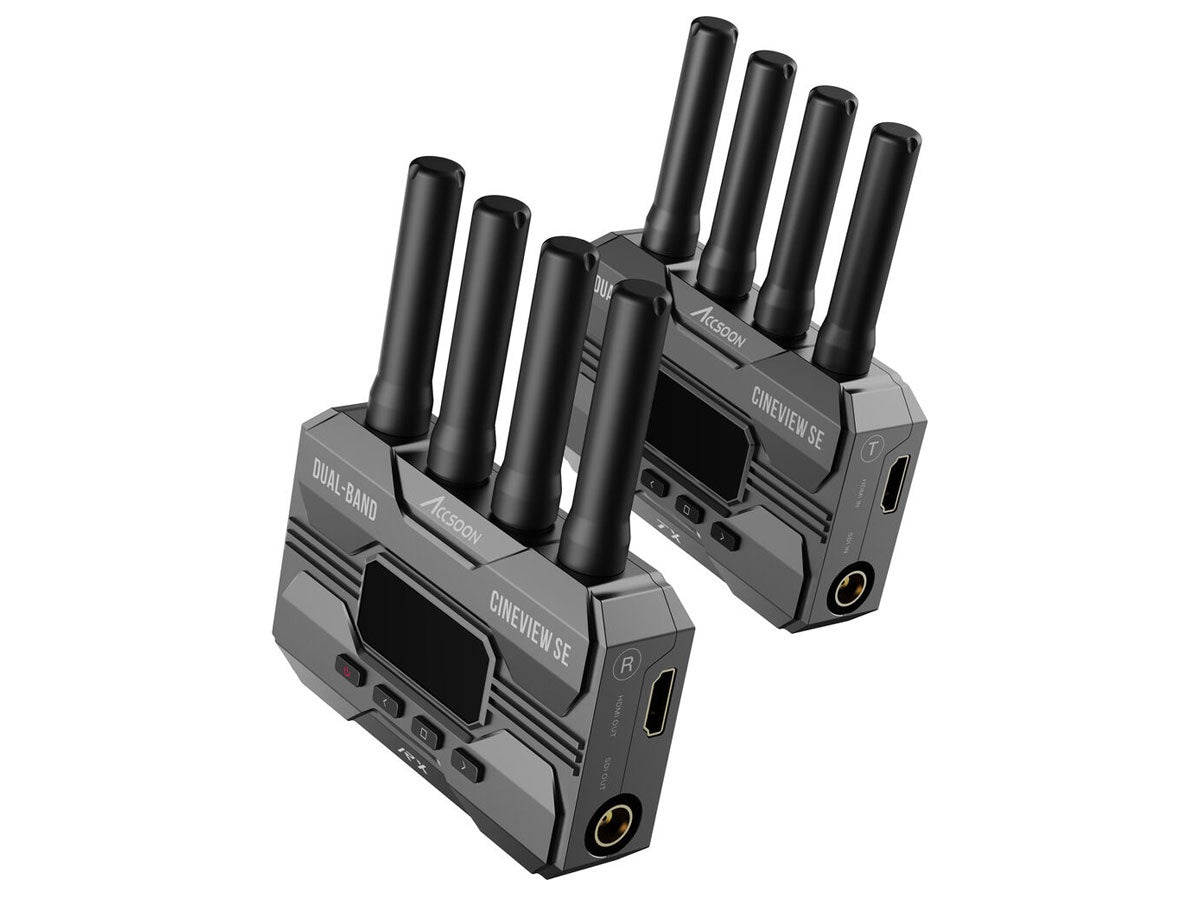

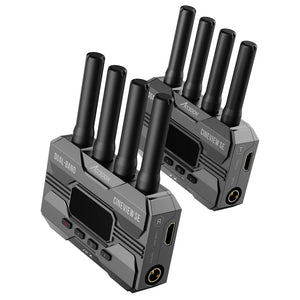

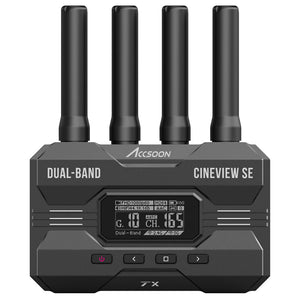

Accsoon CineView SE

Accsoon CineView SE

SKU: ACC-WIT04-SE
£349.00 GBP ex VAT
£418.80 GBP inc VAT
ex VAT £349.00 GBP ex VAT
£418.80 GBP inc VAT
Sale Sold out
In stock.
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
This latest addition to the CineView line is the company’s most powerful, most advanced SDI TX/RX system to date. It is solidly built from aerospace-grade aluminium alloy and has a modern fanless design for silent running.

Accsoon Dual-Band reliability with four antennas
The CineView SE RX and TX units each have four removable antenna and a range of 1200ft using Accsoon’s unique Dual-Band wireless technology. This transmits the same image on both 2.4GHz and 5GHz frequencies at the same time. The receiver then intelligently identifies interference as it combines the two signals together as needed into a complete single stream. This is inherently more stable than lower performing wireless systems that simply hop between frequencies. The result is a super robust, near real time transmission of HD video and audio that can reach the length of a football field and is not plagued with drop-outs and black screens. Screen lag in almost imperceptible with new best in class latency at under 50ms.

SDI and HDMI
The transmitter has both SDI and HDMI inputs, while the receiver has SDI and HDMI outputs, both capable of frame rates up to 1080p 60fps. It even accepts SDI level A and B signals to cater for older professional cameras. This makes the CineView SE the perfect companion for every DP, director or camera operator thanks to its compatibility wide a range of cinema, professional and mirrorless cameras.

Smaller than ever
CineView SE is even smaller and lighter than ever, with both transmitter and receiver weighing in at just 210g each. Both RX and TX units are around the size of a pack of cards, measuring 105mm x 66mm x 32mm, excluding antennas. This makes it much more compact than previous CineEye 2S Pro model, while at the same time enhancing performance.

View on multiple monitors or iOS devices
Like other CineView models the CineView SE TX can be used with up to four other CineView RX units. It can also transmit up to four iOS or Android devices running the Accsoon Go app, or any combination of RX units and smart devices totalling four.

Newly improved Accsoon Go app
Monitor, record and stream from the CineView SE using the Accsoon Go app on iOS and Android devices. The free app offers a huge range of monitoring and recording features and has been freshly updated with some exciting new tools. As with the previous version of Accsoon Go it can record HD video transmitted from the CineView SE to your smart device for instant review and social media sharing, plus stream it using RTMP to popular video sharing sites.
The new tools offer Onion skinning for precise manual focus, Smart sharpening of the displayed image and LUT loading and recording. These add to the existing high-end features like Focus Peaking, Histogram, False Colour and viewing with 3D LUTs. There is also a new ability to Multitask with the Go App on Split View when using a suitable iPad.
For users wishing to use the CineView SE solely with iOS and Android devices the TX will also be available to purchase stand alone without the RX. Accsoon offers complete flexibility to wirelessly monitor the way the user needs.

The new CineView platform - faster, smaller, cooler
The CineView SE uses the latest improved version of the computing platform first seen on the acclaimed CineEye series. After years of painstaking development by Accsoon the result is a system that is even faster, smaller, more efficient and cooler running than before.

Run for hours on a single battery
The CineView SE has incredibly low power consumption and a single NP-F970 battery can last up to 12 hours. Additionally it can be powered via the DC input port (7.4V~16.8V) as well as a USB-C power source (5V). The unit can remain powered on while switching between these sources allowing for continuous operation on long shoots.
  • High Reliability 2.4GHz+5GHz Dual-Band Transmission Technology
  • Extreme Low Latency of Less Than 50ms
  • Long-Range Transmission Up to 1200ft/350m
  • Both SDI & HDMI Input/Output
  • Monitoring on Up to 4 Devices, Mix and Match
  • Silent Fanless Design
  • Power with any NP-F battery, DC Input & USB-C
  • Monitoring Made Simple with Advanced Monitoring App
  • Automatic Channel Selection
  • Easy TX/RX Group Pairing
  • FHD Video and High-Quality Audio Transmission
  • High Grade Aircraft Quality Aluminium Alloy
  • 1.3 inch OLED Display
  • Firmware Update with Ease
  • Quick Setup & Easy to Carry
Video Input TX: SDI/HDMI
RX: N/A
Video Output TX: N/A
RX: SDI/HDMI
SDI Input Format TX: 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
RX: N/A
SDI Output Format TX: N/A
RX: 1080p 24/25/30/50/60fps Level A
HDMI Input Format TX: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
RX: N/A
HDMI Output Format TX: N/A
RX: 1080p 24/25/30/50/60fps
DC Port 5.5mmx2.1mm, center positive
DC Voltage 7.4~16.8V
Audio TX: 44.1KHz/48KHz 16bit/24bit PCM
RX: N/A
Latency TX: ＜0.05s (Camera latency not included)
RX: N/A
OLED Display 1.3 inch
Transmission Power TX: 17~20dBm
RX: N/A
Transmission Range TX: 1200ft (No obstacles, no interference)
RX: N/A
Power Consumption TX: 4.5 Watt （Typical）
RX: 3.5 Watt (Typical)
Operating Environment Temperature -10~40℃
Dimensions (Antennas Not Included) 105mmx66mmx32mm
Weight (Antennas Not Included) 210g
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x Cold Shoe Mount Adapter
  • 9 x Antenna
  • 1 x User Manual
