Accsoon Cineview Nano

Accsoon Cineview Nano

SKU: ACC-ACSWIT04M
Regular price £79.00 GBP ex VAT
£94.80 GBP inc VAT
Regular price ex VAT Sale price £79.00 GBP ex VAT
£94.80 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications

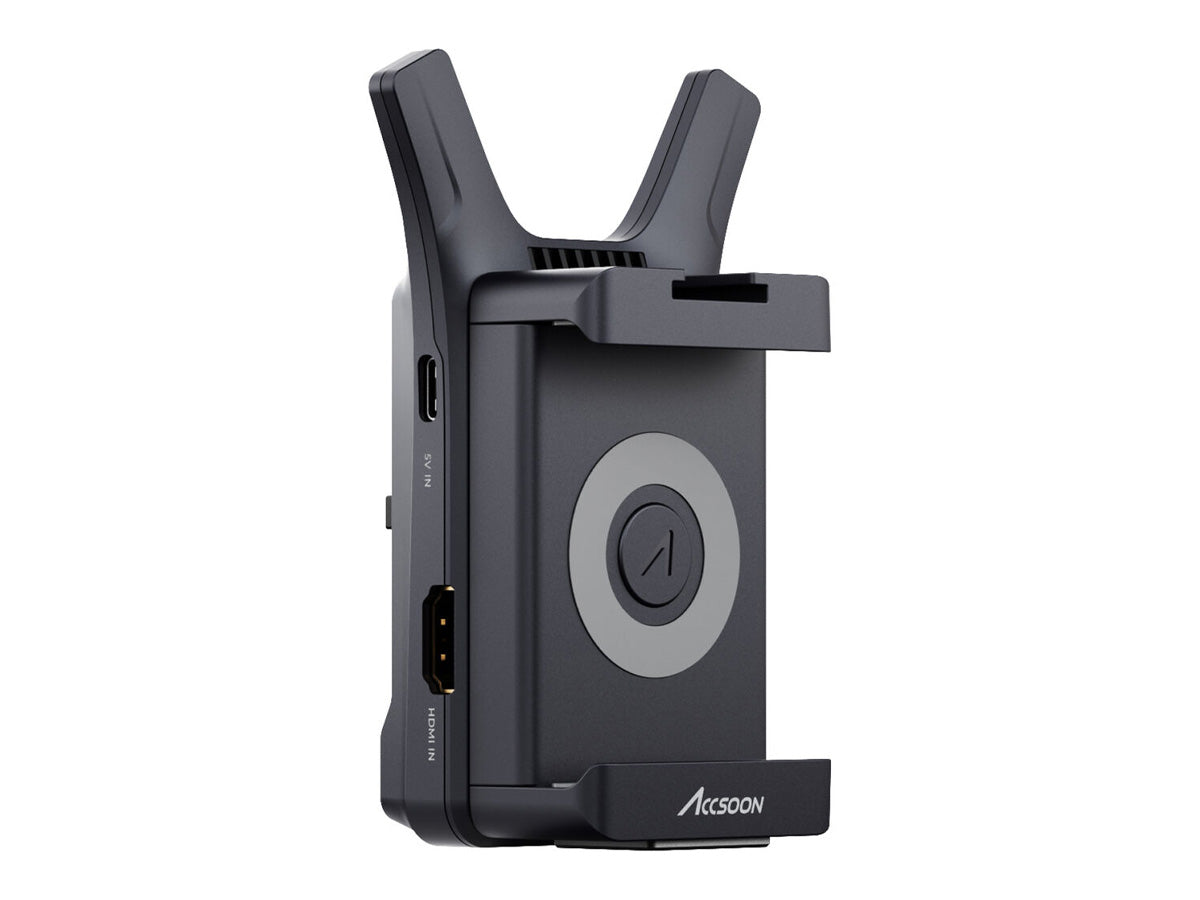

Accsoon CineView Nano is a smaller, lighter version of the CineView wireless system. The CineView Nano accepts up to a full HD 1080p60 HDMI signal via a HDMI port, and it wirelessly transmits the signal to up to four separate iOS/Android mobile devices at the same time. The signal is sent over 5GHz up to 500ft line of sight with a low latency of approximately 60ms.
Ultra-Compact, Pocket-Sized Design

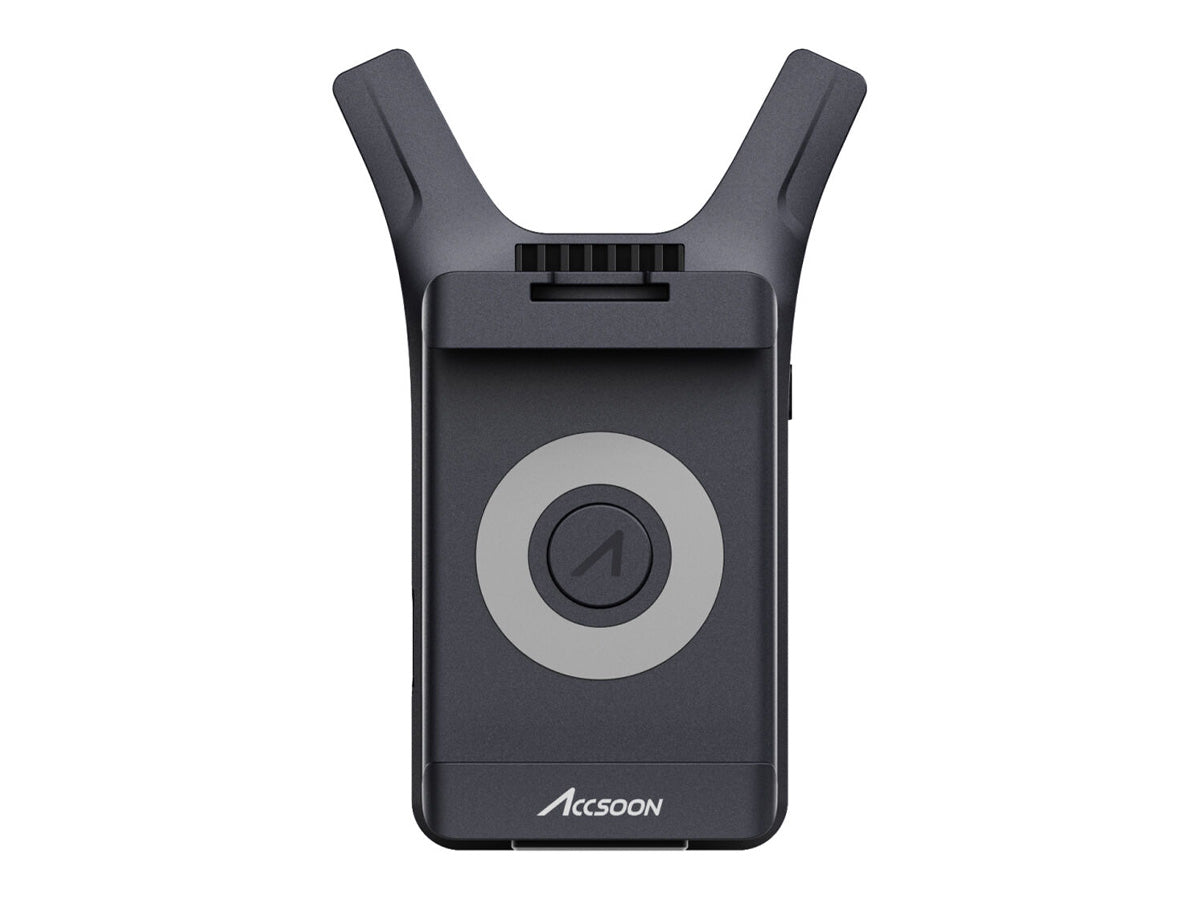

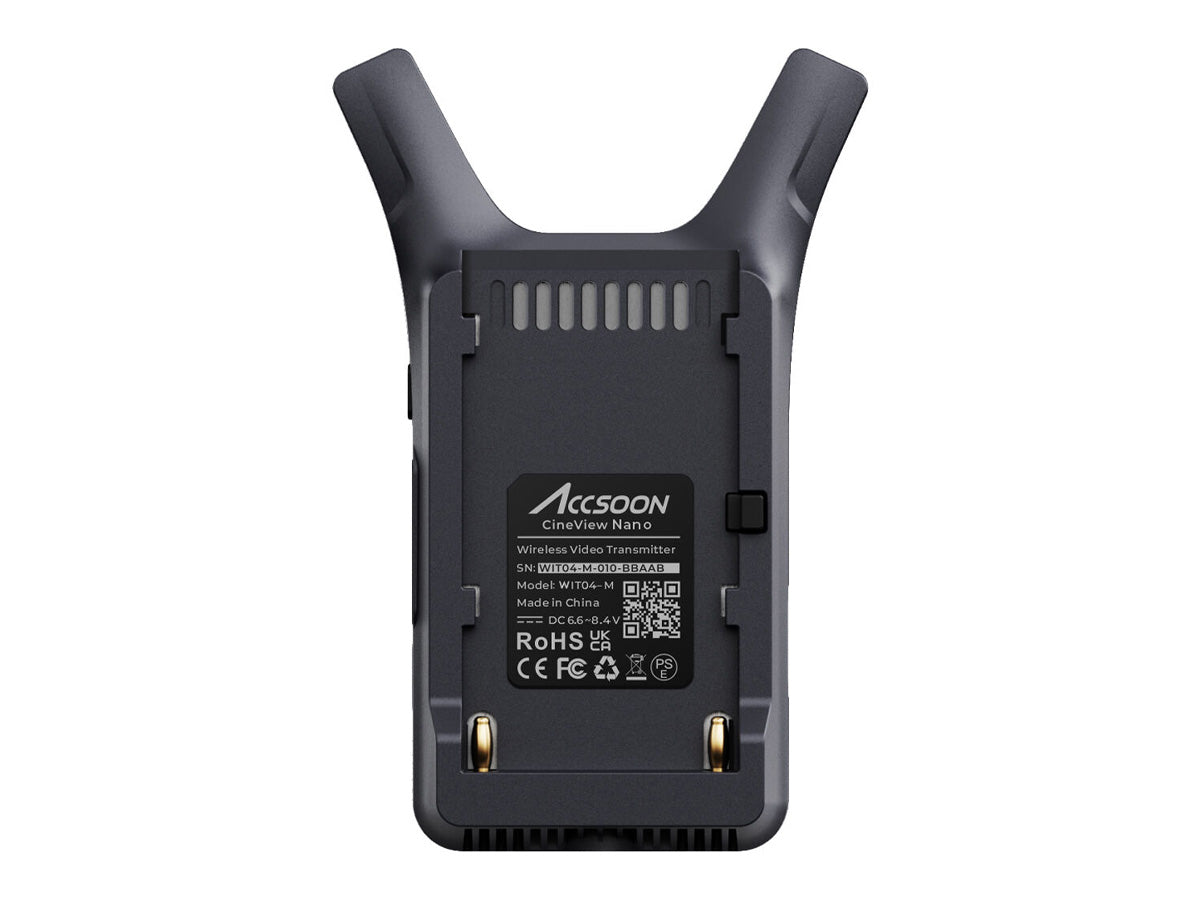

About 76mm x 113mm in size, CineView Nano weighs only 72.3g and is less than half the weight of the CineView HE/SE transmitter. It also has an aluminum housing for durability. Two integrated antennas built in to maintain the small size.
HDMI Monitoring Made Easier

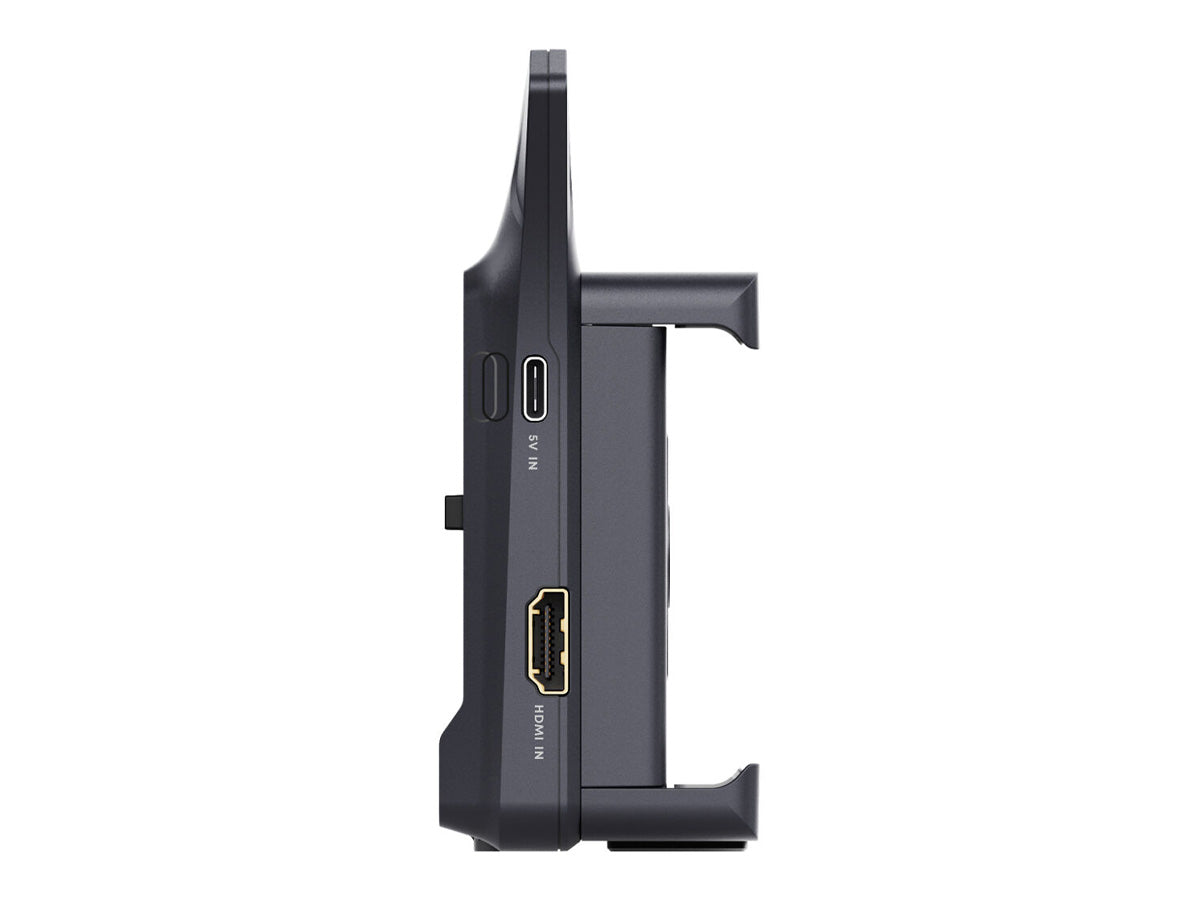

CineView Nano features one HDMI-in port and uses 5G WiFi signal to send video wirelessly to up to 4 tablets or phones with both Android or iOS system.
Low Latency, Long Range
With an average latency of around 60ms, Nano has nearly undetectable lag that transmits to a maximum distance of 500ft.
Mounting & Powering

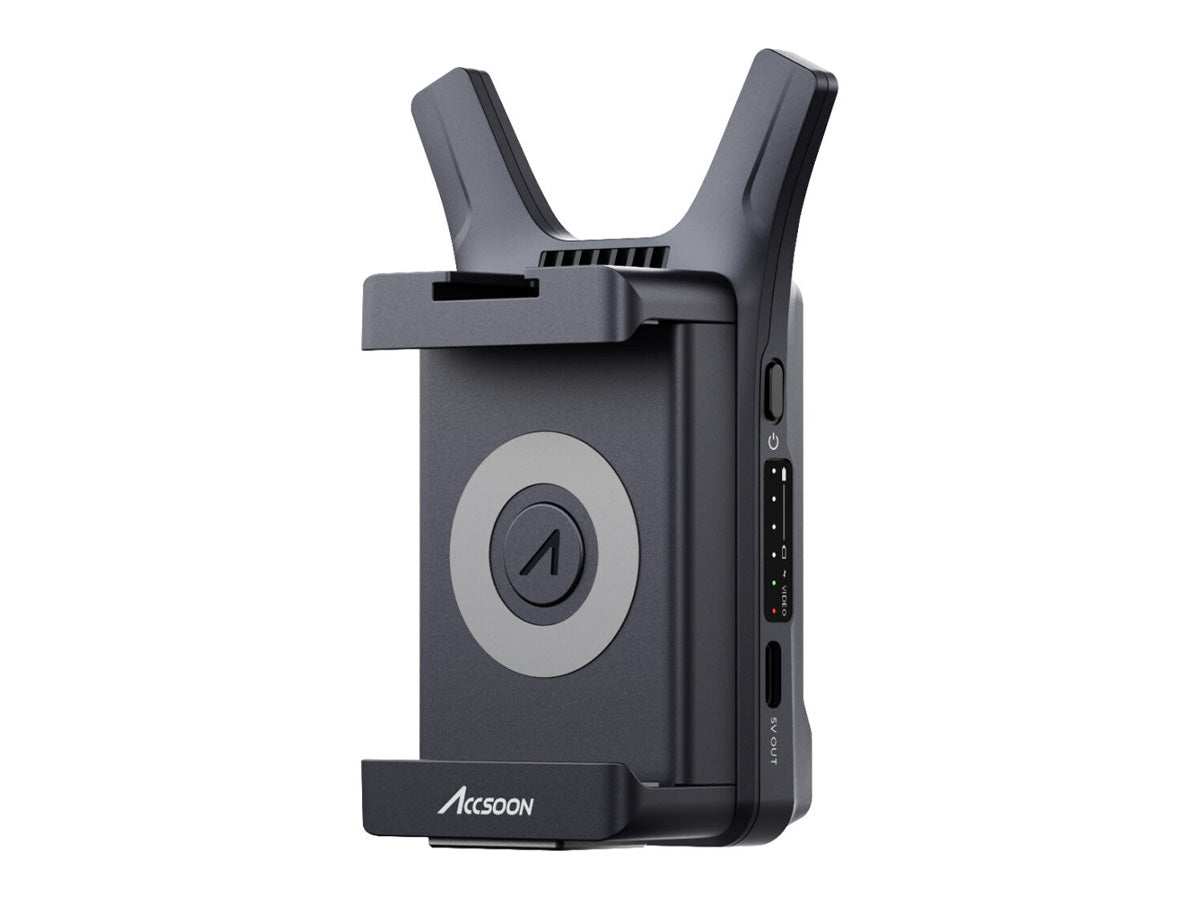

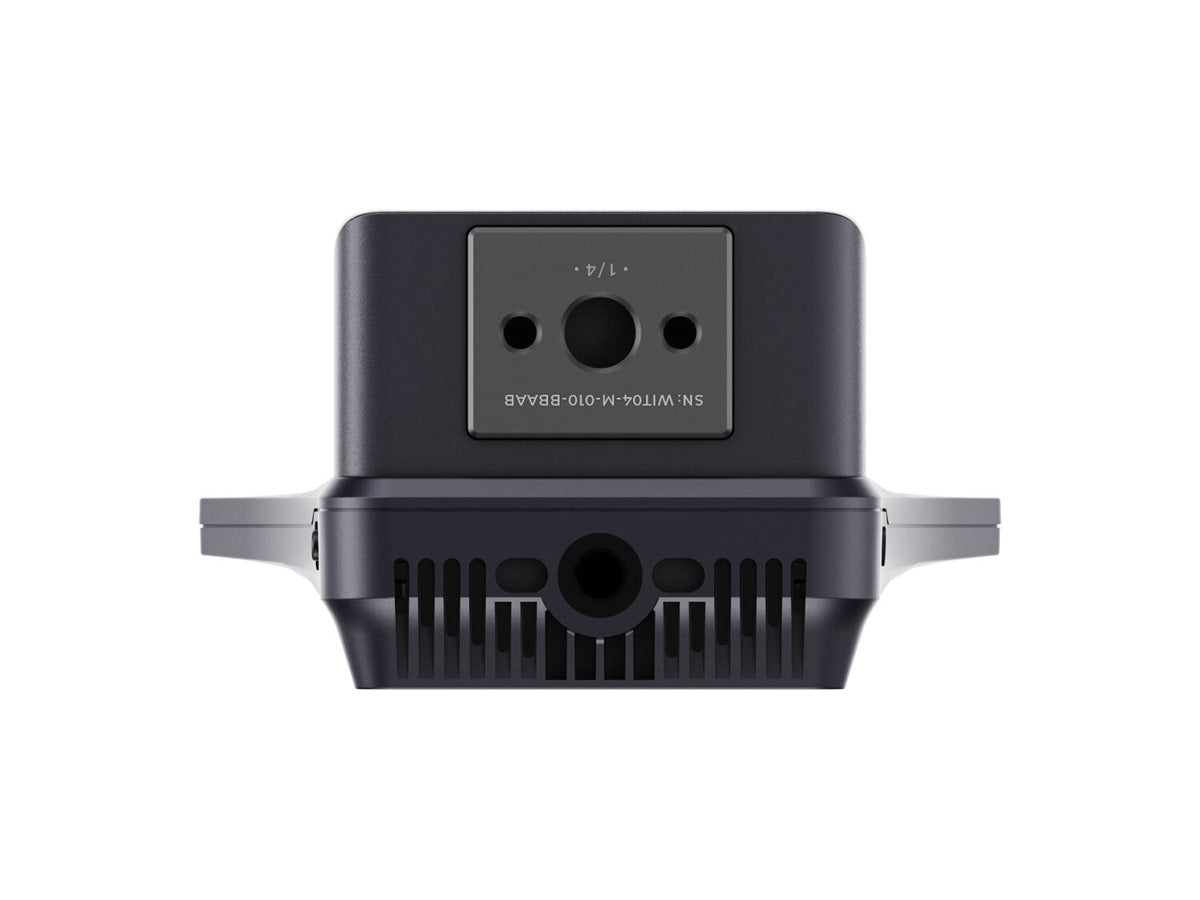

CineView Nano offers a 1/4″-20 mounting point on the bottom and can easily be mounted on your camera. It also features a well-designed phone holder to secure your phone while monitoring.

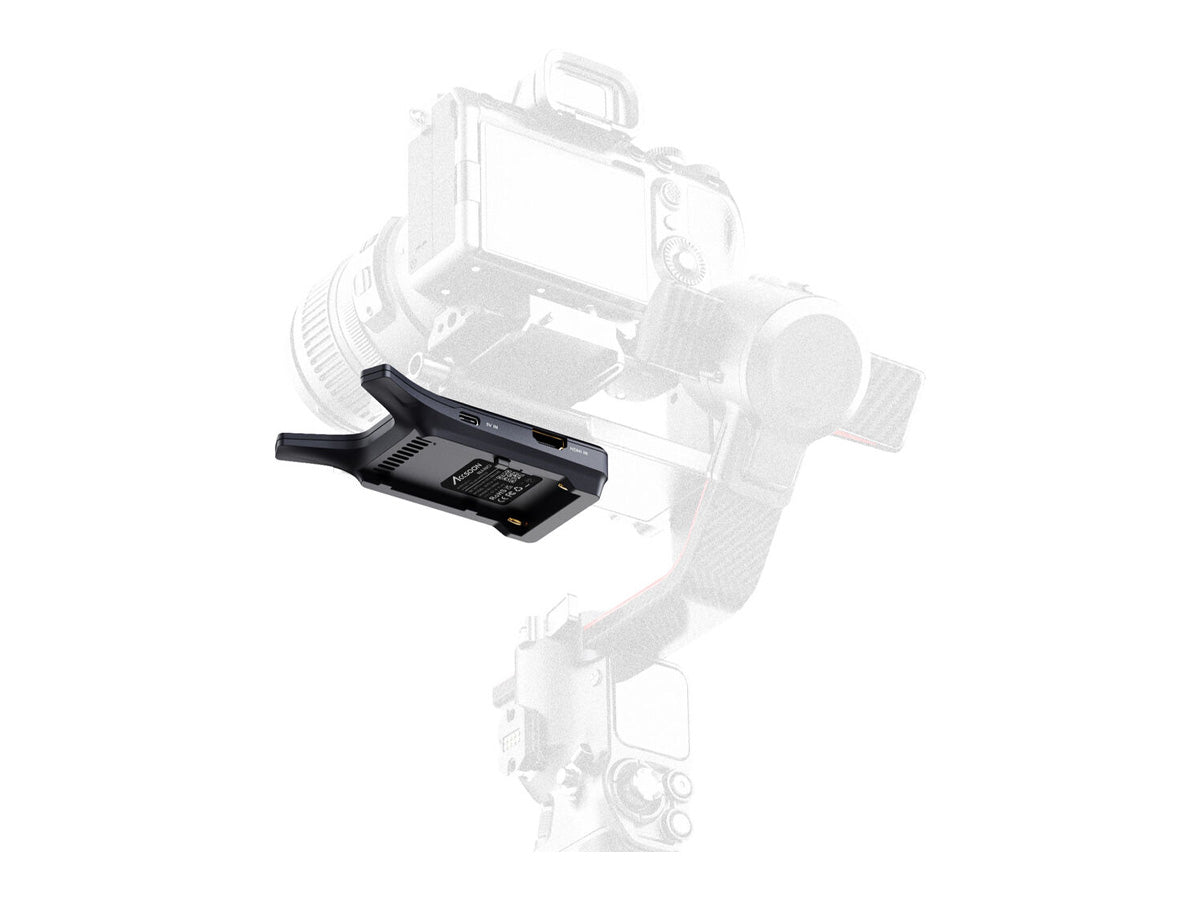

On Your Gimbal Too

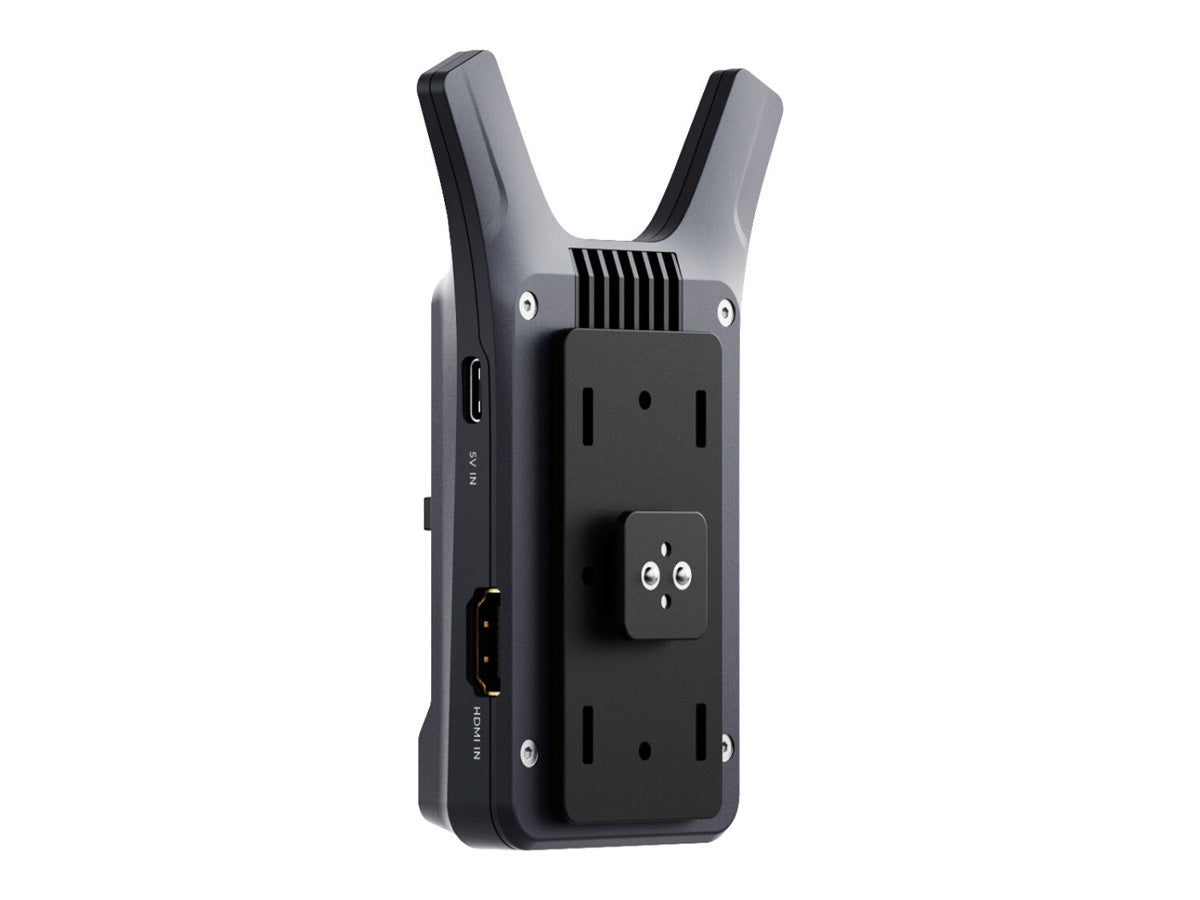

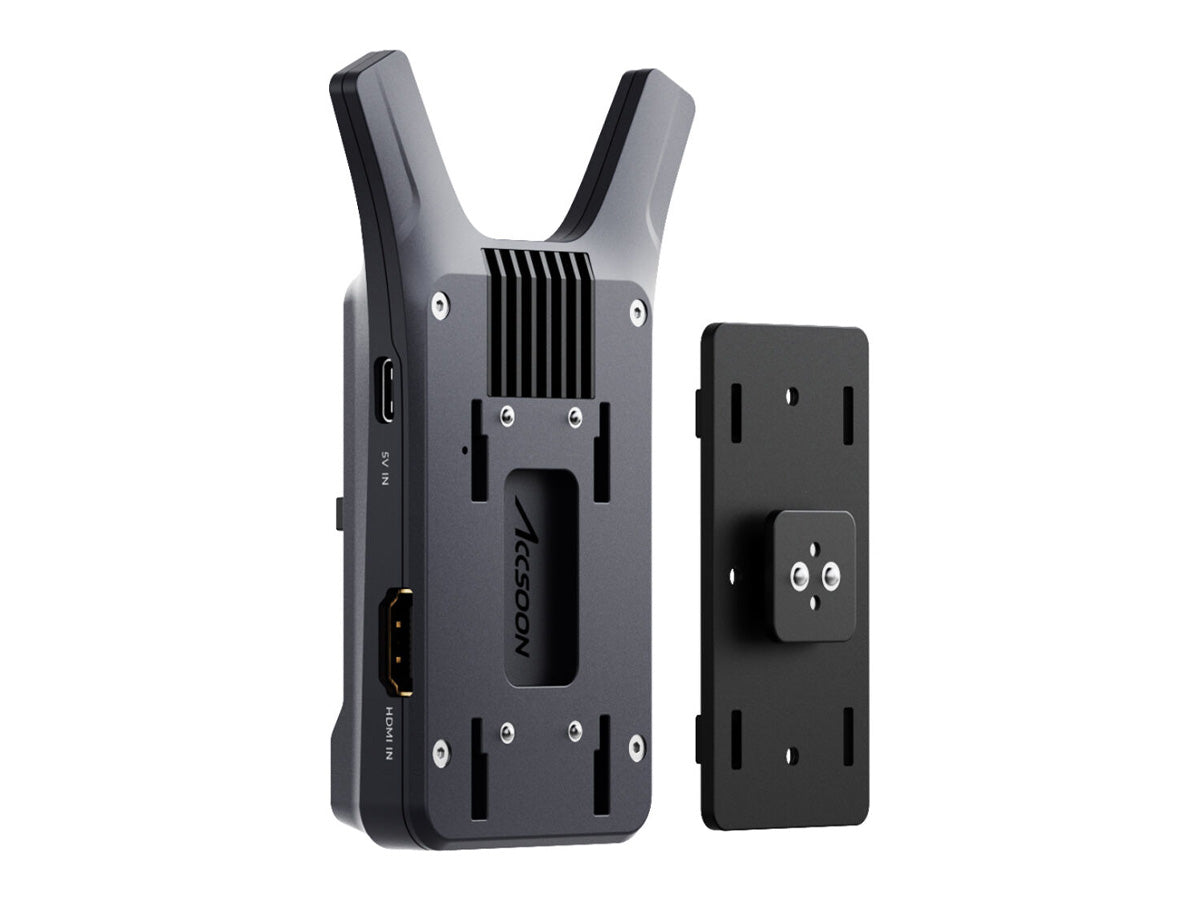

Alternatively, the phone clamp can be detached and replaced with a gimbal attachment plate compatible with DJI RS2/RS3 gimbals. This conveniently situates the CineView Nano underneath the camera mounting plate for optimal balance and ease of access.
Video Input: HDMI
Video Output: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
Audio: 44.1KHz/48KHz 16bit/24bit PCM via HDMI
Latency: <0.06s (Camera latency not included)
Transmission Power: 17~20dBm
Transmission Range: 500ft (No obstacles, no interference)
Power Consumption: 2.5 Watt (Without charging other devices)
Operating Environment Temperature: -10~40°C
Dimensions: 76mm × 113mm × 20mm
Weight: 72.3g
