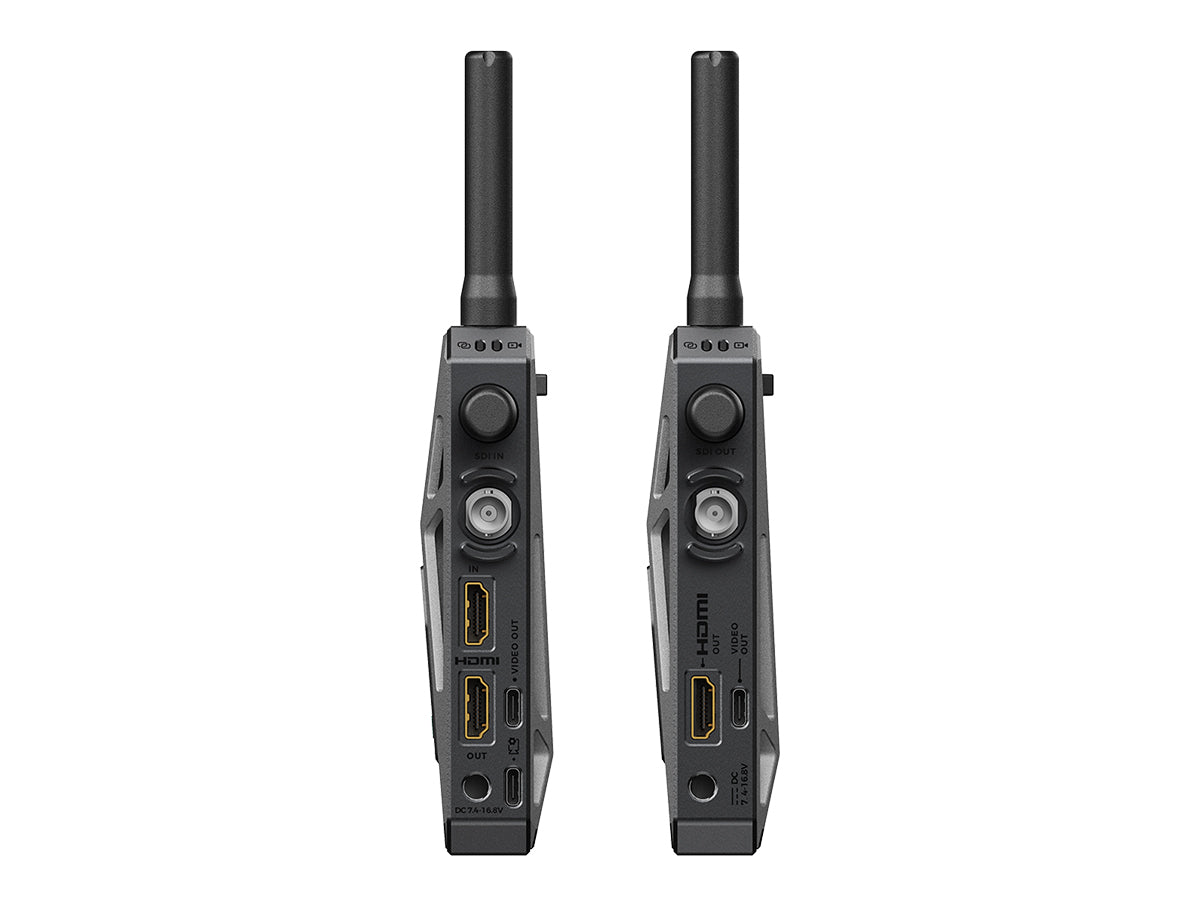

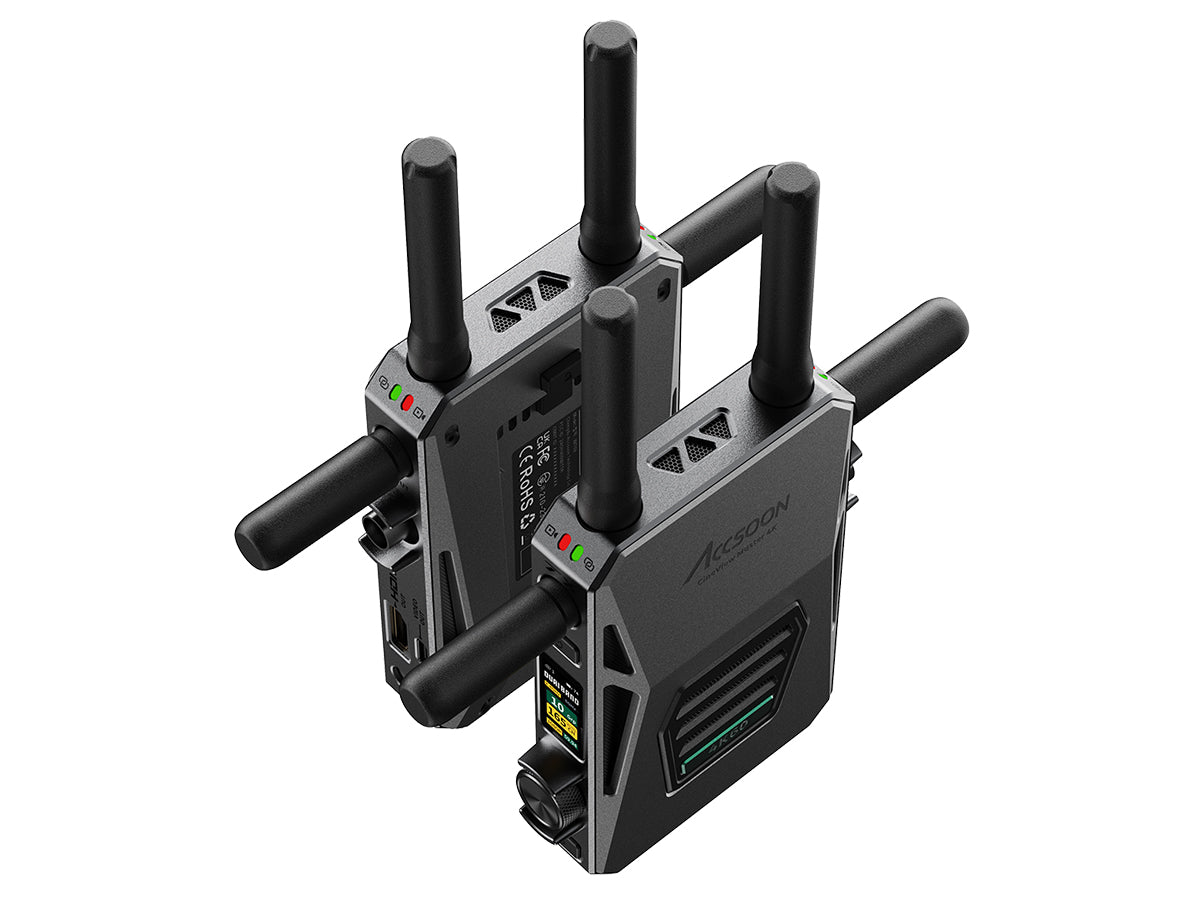

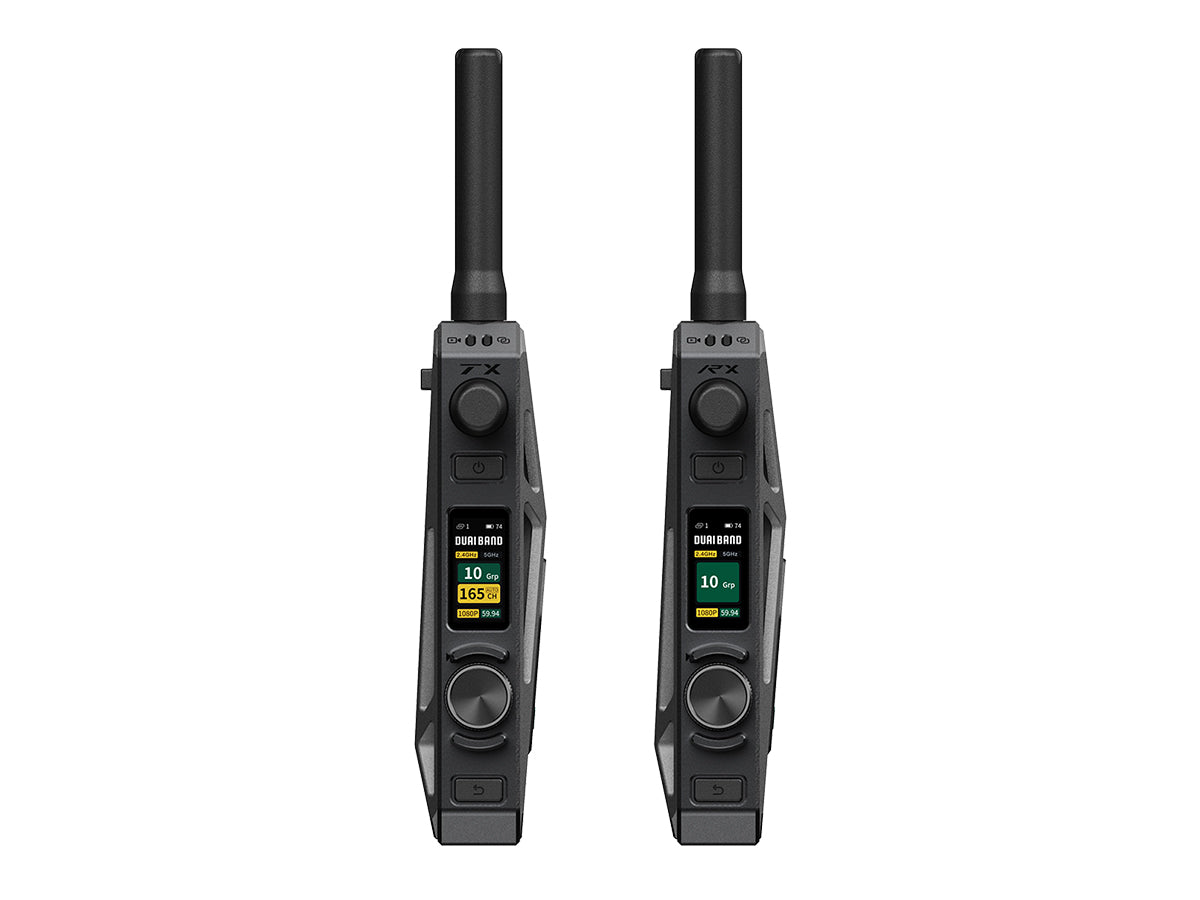

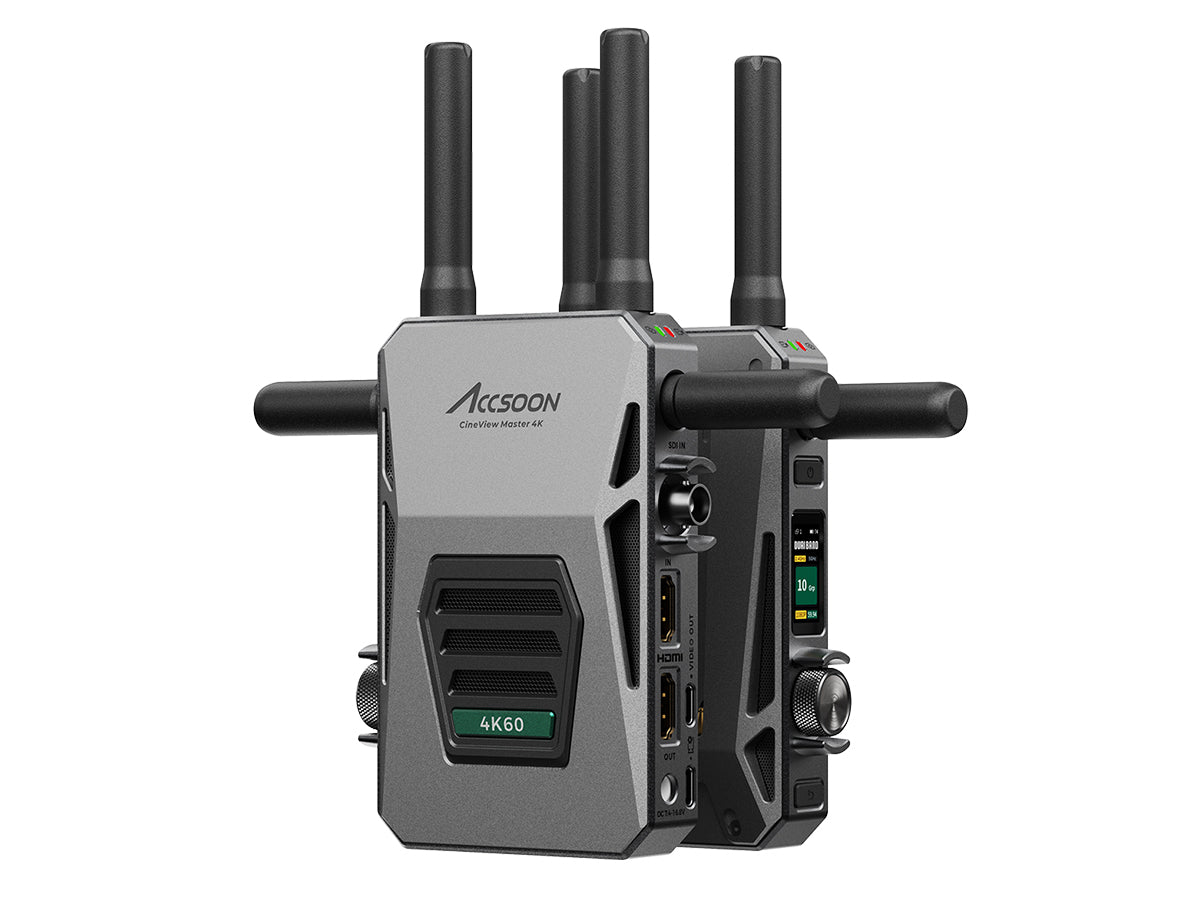

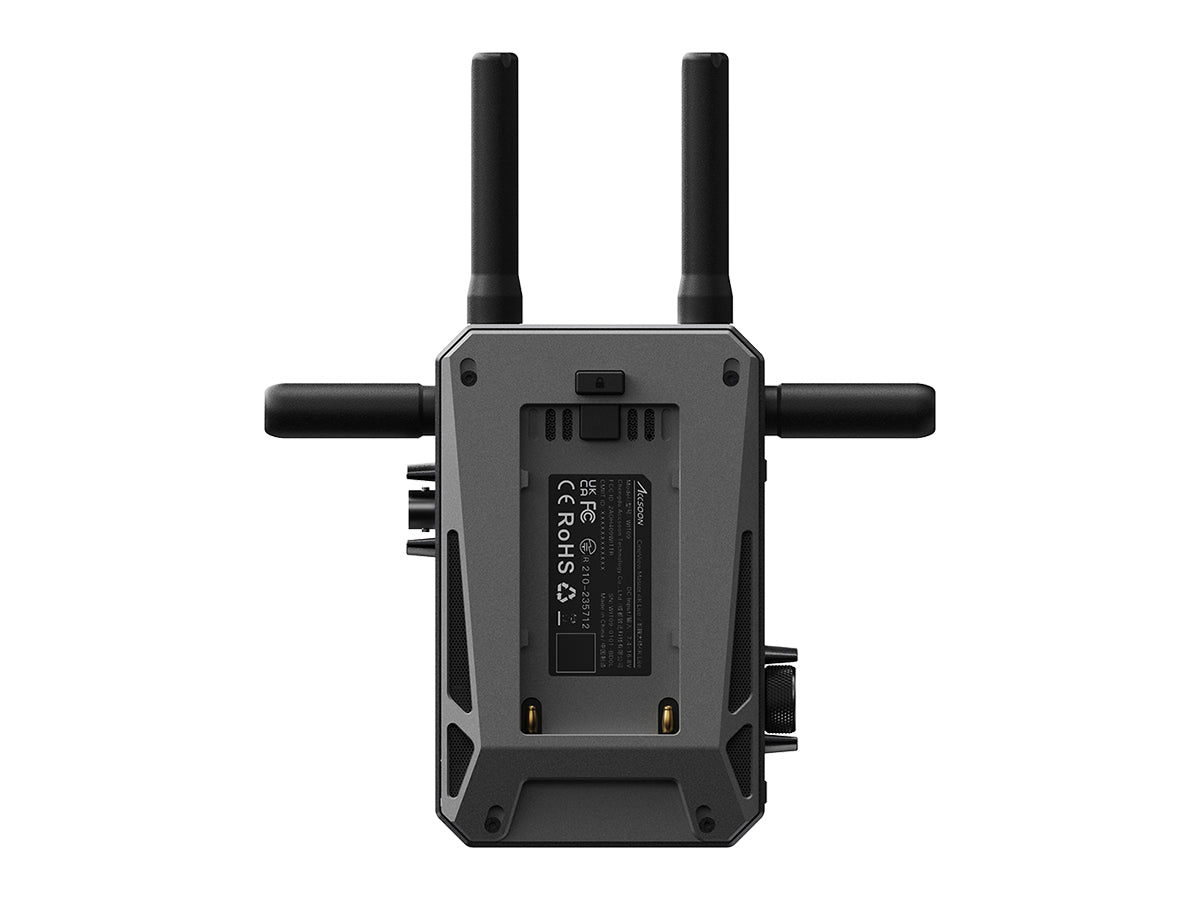

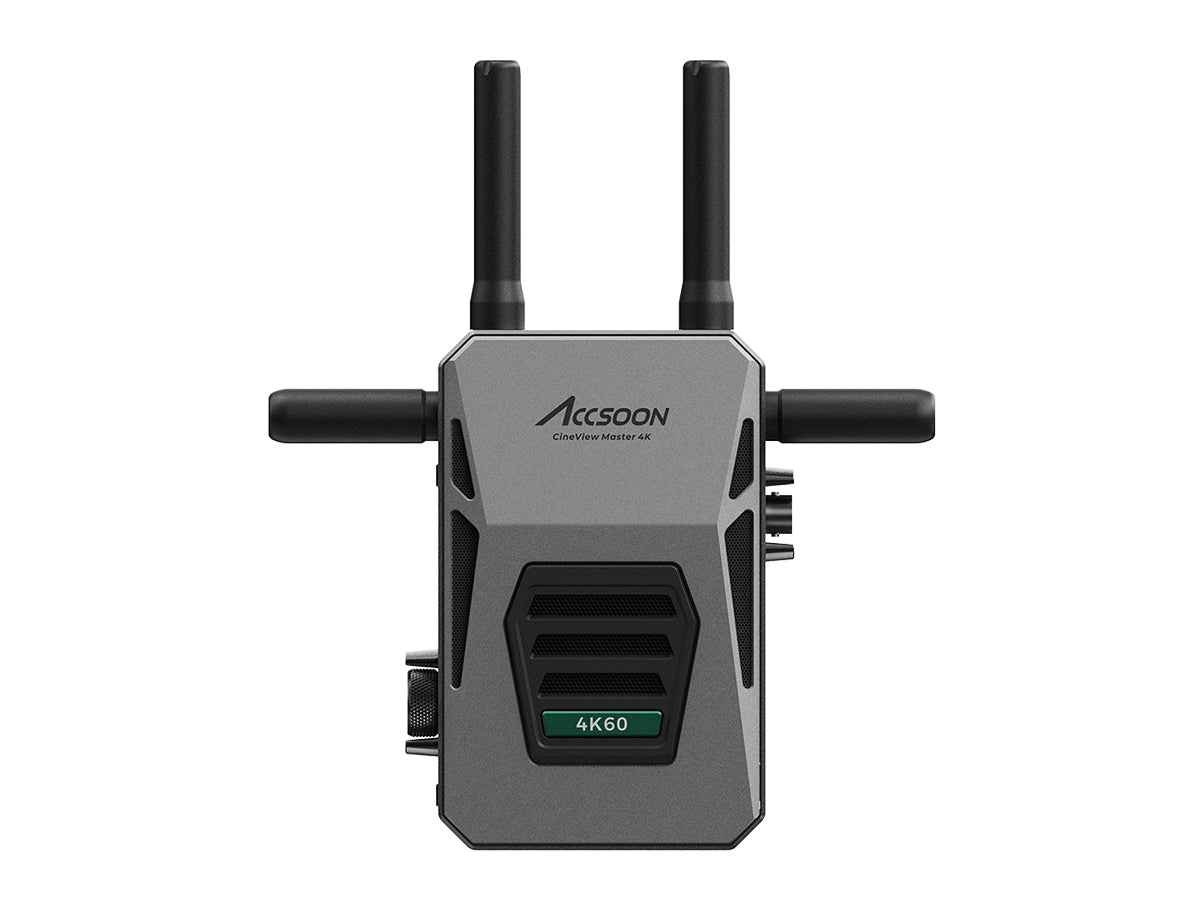

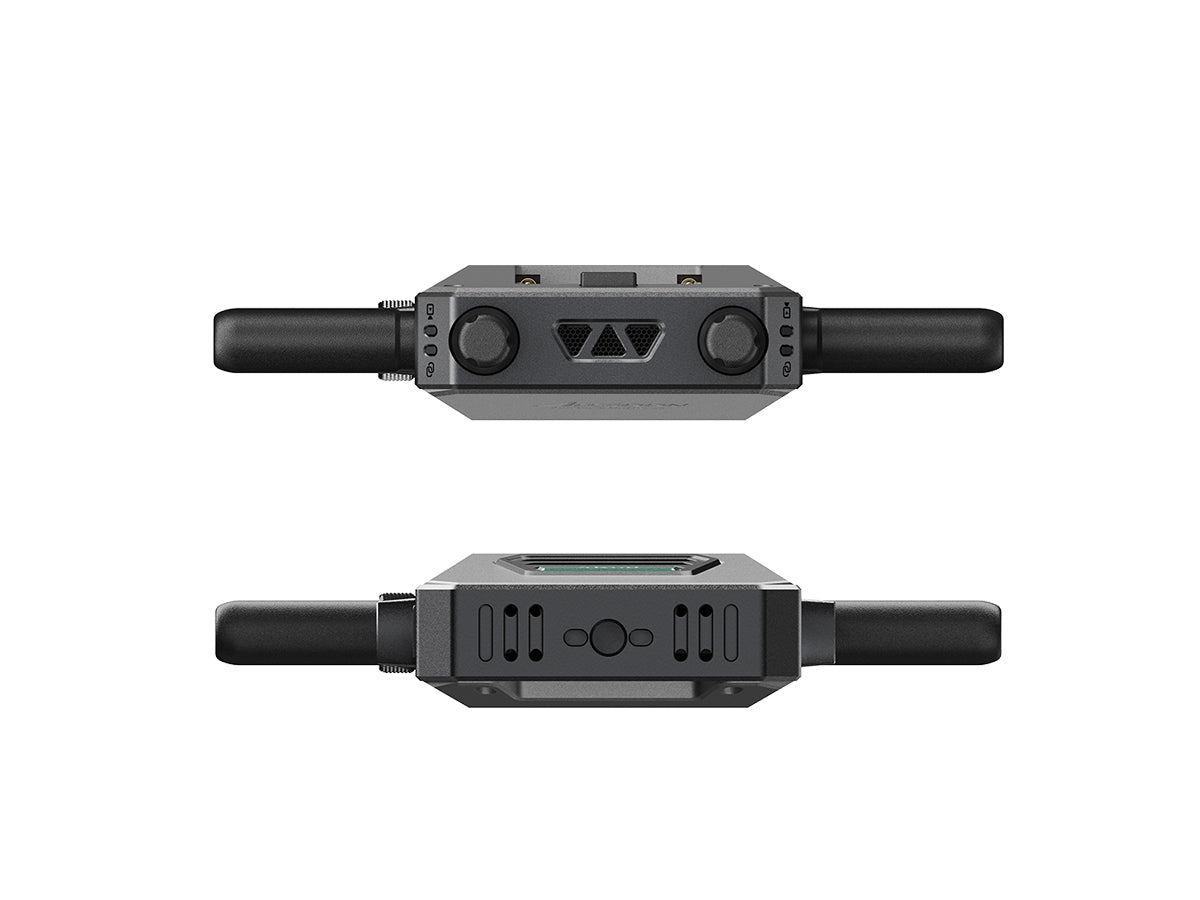

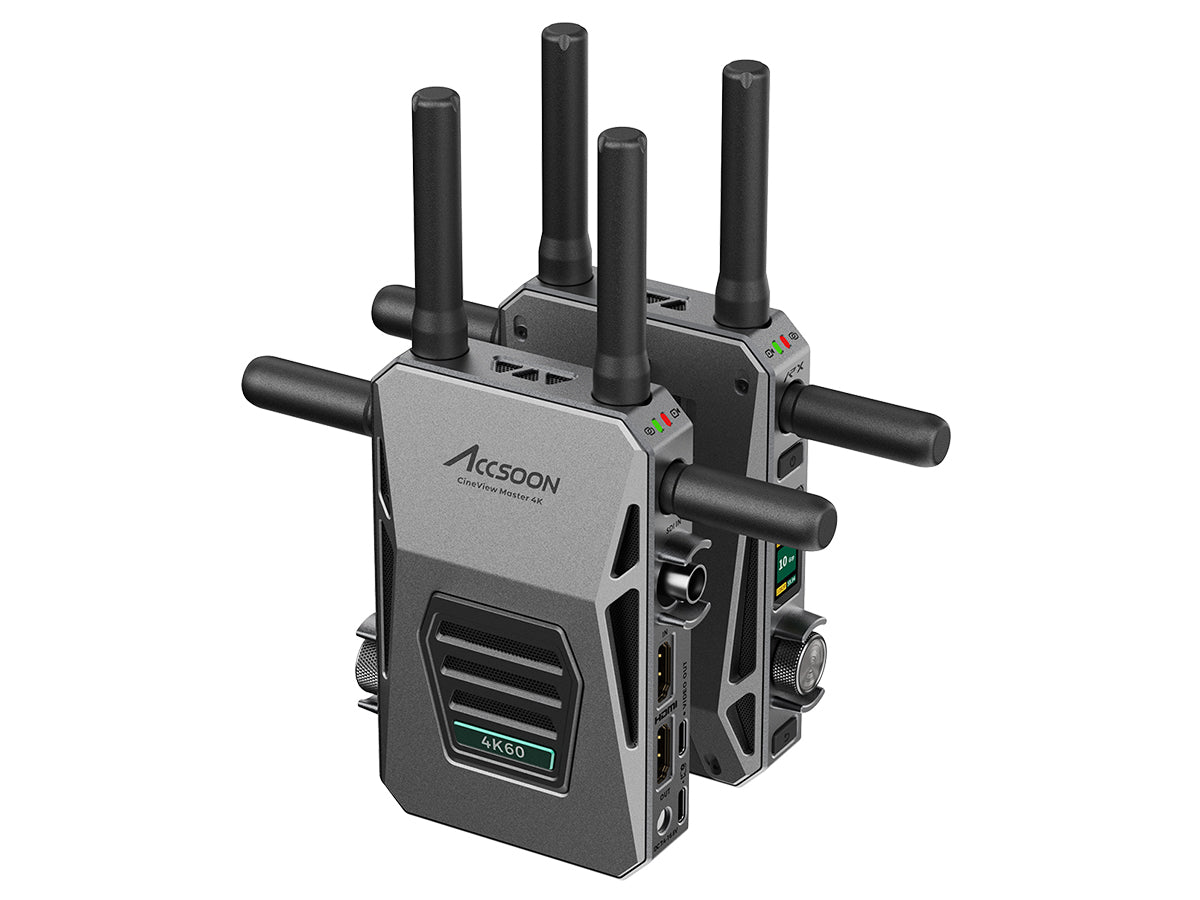

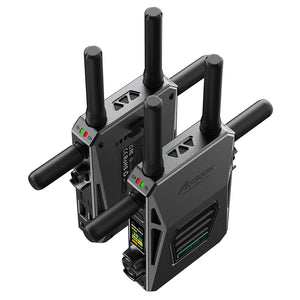

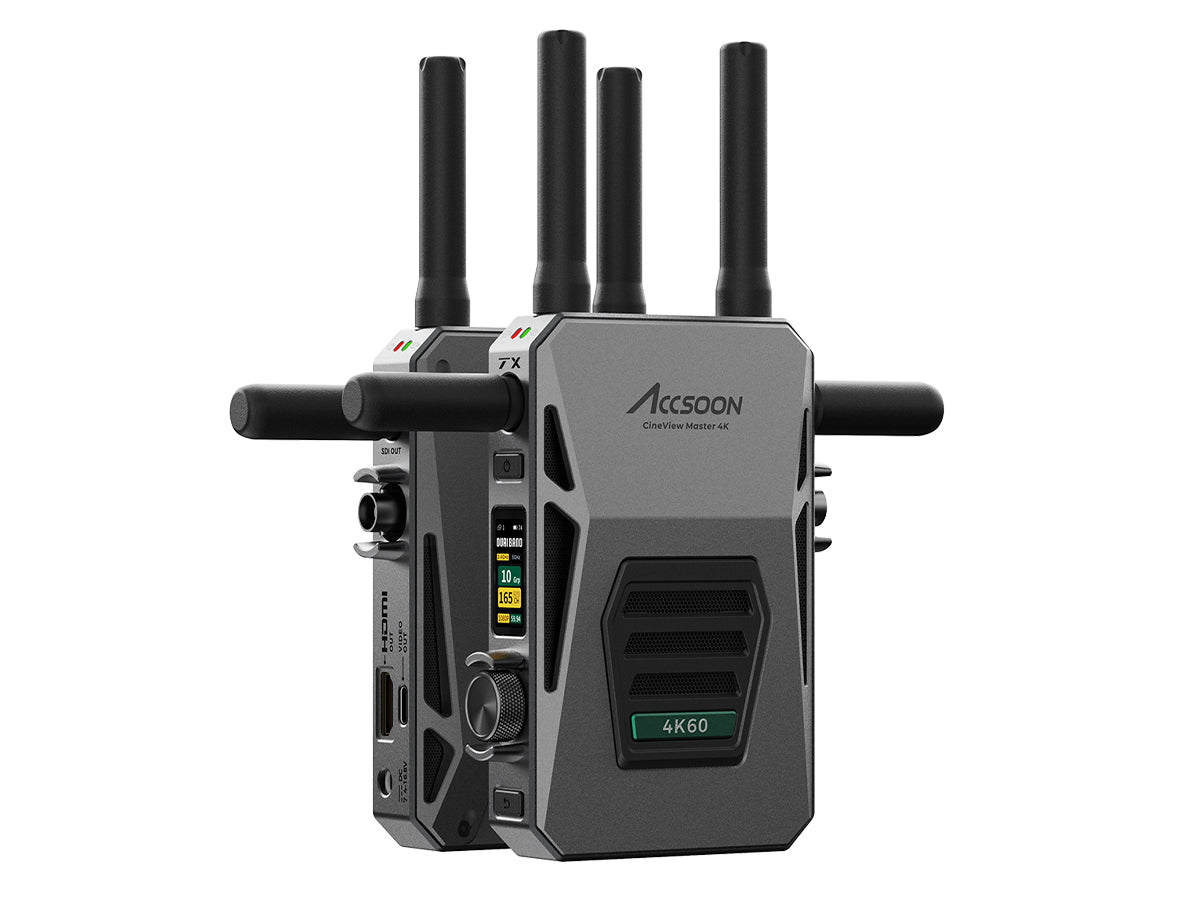

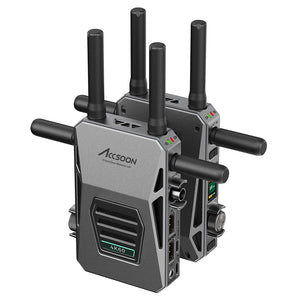

Accsoon CineView Master 4K Lite Kit

Accsoon CineView Master 4K Lite Kit

SKU: ACC-WIT09
£540.00 GBP ex VAT
£648.00 GBP inc VAT
ex VAT £540.00 GBP ex VAT
£648.00 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Meets Monitoring Needs Across Productions Big and Small
Enjoy high quality monitoring experience with CineView Master 4K Lite. From feature film production to short video and solo projects, CineView Master 4K Lite offers end-to-end wireless monitoring solution up to DCI4K 60FPS, accommodating a wide range of camera output formats across productions of all sizes.From feature film production to short video and solo projects, CineView Master 4K Lite supports up to DCI 4K at 60fps, accommodating a wide range of camera output formats across productions of all sizes.

Consistent Clarity, Next-Gen Video Engine , Market-Tested Reliability and Image Quality
Powered by Accsoon’s production-proven, next-generation video engine, CineView Master 4K Lite delivers stable, high-fidelity monitoring across a wide range of camera signals. CineView Master 4K Lite also supports H.265 codec, higher efficiency codec providing better image quality at the same bandwidth.

Market Proved Wireless Stability
Accsoon's patented Dual-Band transmission is a quantum leap forward from the traditional video transmission technology. The latest Dual-Band Transmission on CineView Master 4K Lite is based on the new and proprietary RTMS 4.0 protocol developed by Accsoon, it integrates both 2.4GHz and 5GHz, enabling intelligent dynamic adjustment of audio and video data across bands, promising greater robustness, faster connection times, lower latency, and the ability to gracefully manage multiple connections.

Anti-Interference, Low Latency
Accsoon’s patented Dual-Band transmission technology ensures a stable, interference-free, and low-latency transmission experience

No Black Screen, No Drop-out
Maintaining reliable video reception even in multi-device environments
  • USB-C Video Output on Both Transmitter and Receiver
  • Superb Image Quality Resolution Up to 4K60; Bitrate Up to 32Mbps.
  • Wired Connection Without Latency Create smoothly and seamlessly, with every detail in real time.
  • USB-C & Lightning Charge Your Mobile Device Charge the connected mobile device at the same time over Lightning or USB-C.
  • Camera to Cloud Easily share your creations to Frame.io through the C2C integration, enabling real-time automatic uploads from almost any camera to the cloud.
Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
VIDEO INTERFACES
Video Input: HDMI, 3G-SDI
Video Output: HDMI Loop-Out, USB Video Out (TX)
HDMI, 3G-SDI, USB Video Out (RX)
Camera Control: USB-C
SDI INPUT FORMAT (TRANSMITTER)
1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A / B)
1080i: 50 / 59.94 / 60 (TX displays 1080p)
1080PsF: 23.98 / 24 / 25 / 29.97 / 30
720p: 50 / 59.94 / 60
HDMI INPUT FORMAT (TRANSMITTER)
DCI 4K: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
UHD: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
1080i: 50 / 59.94 / 60 (TX displays 1080p)
720p: 50 / 59.94 / 60
OUTPUT FORMATS
SDI Output Format: 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A)
HDMI OUTPUT FORMAT
DCI 4K: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
UHD: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
HDMI Loop-Out: Identical to HDMI Video Input
POWER
DC Port: 6.5 mm × 2.1 mm (center positive)
DC Voltage: 7.4 – 16.8 V
Battery Compatibility: NP-F550, NP-F750, NP-F970
Power Consumption: 4.6 W average (TX)
4.6 W average (RX)
AUDIO
Audio Support: HDMI embedded, SDI embedded
PERFORMANCE
Latency: TX → RX: 1080p 60 ≈ 35 ms / 114K 60 ≈ 65 ms (camera latency not included)
TX → iOS: 1080p 60 ≈ 35 ms / 114K 60 ≈ 65 ms
Transmission Range: ≥ 350 m (line-of-sight, no obstacles or interference)
ENVIRONMENTAL
Operating Temperature: −10°C to 40°C
PHYSICAL
Dimensions: 130 × 96 × 32 mm
WEIGHT
Transmitter: 322 g
Receiver: 320 g
  • 1x CineView Master 4K Lite Transmitter
  • 1x CineView Master 4K Lite Receiver
  • 2x Cold Shoe Mount Adapter
  • 4x 2.4GHz Antenna
  • 4x 5Ghz Antenna
  • 1x Allen Key
  • 1x User Manual
