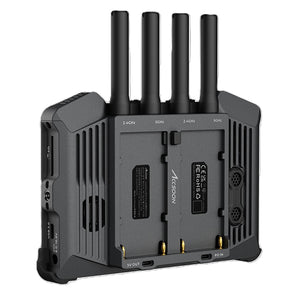

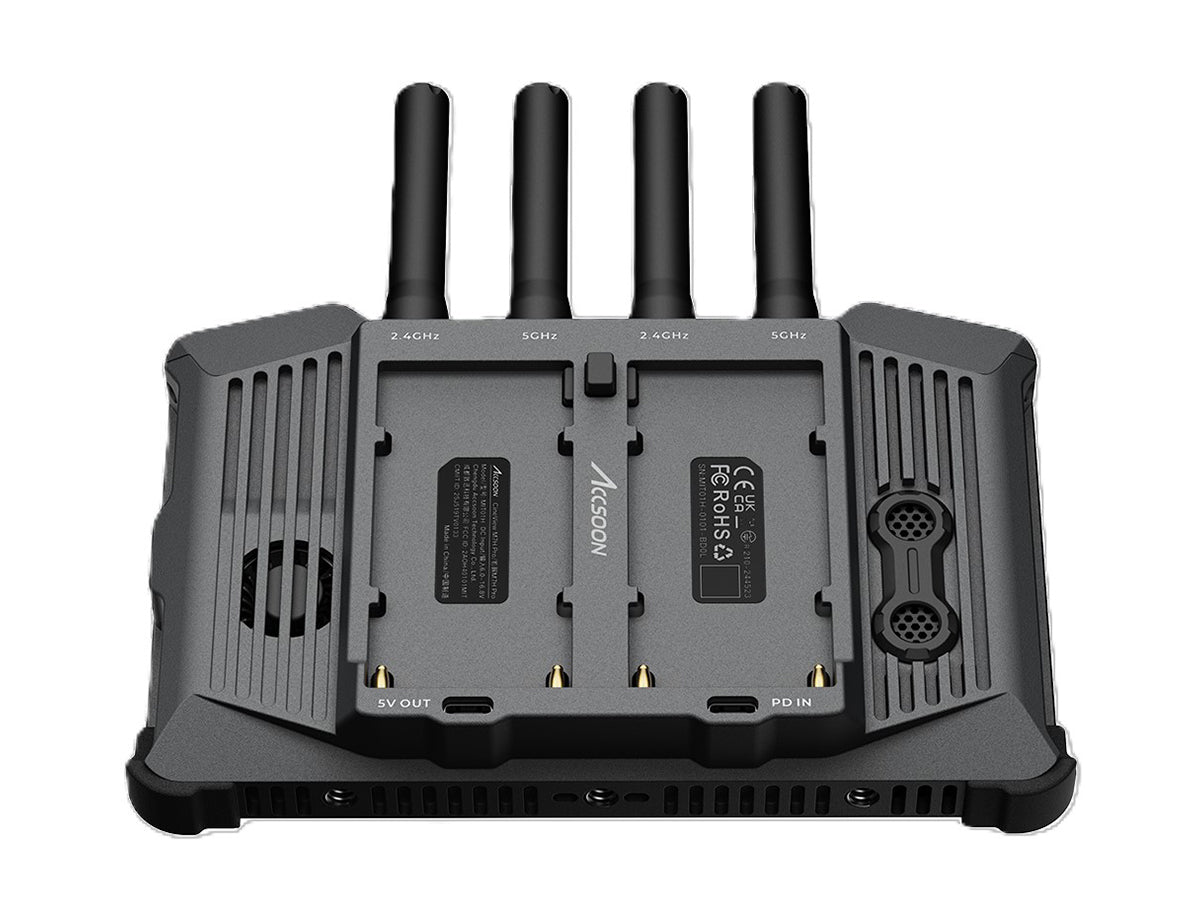

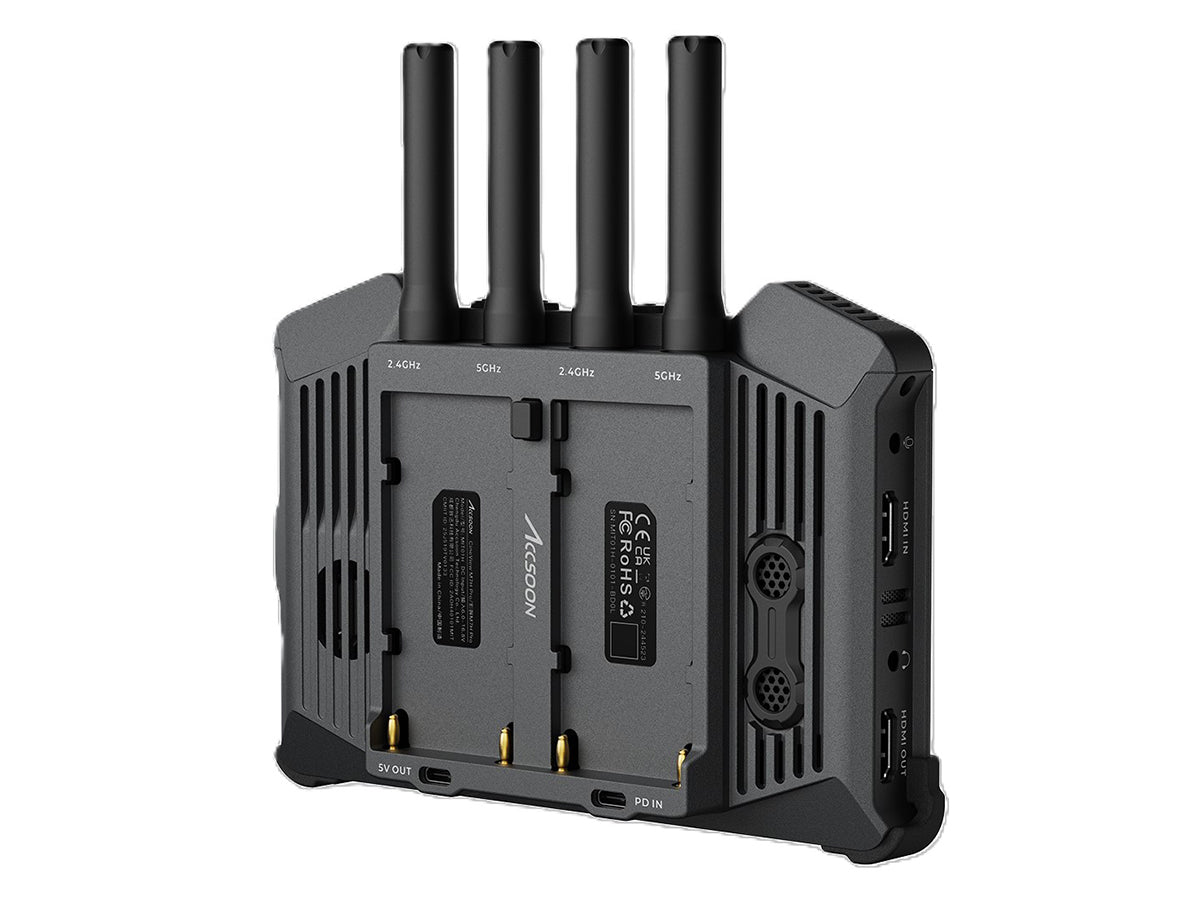

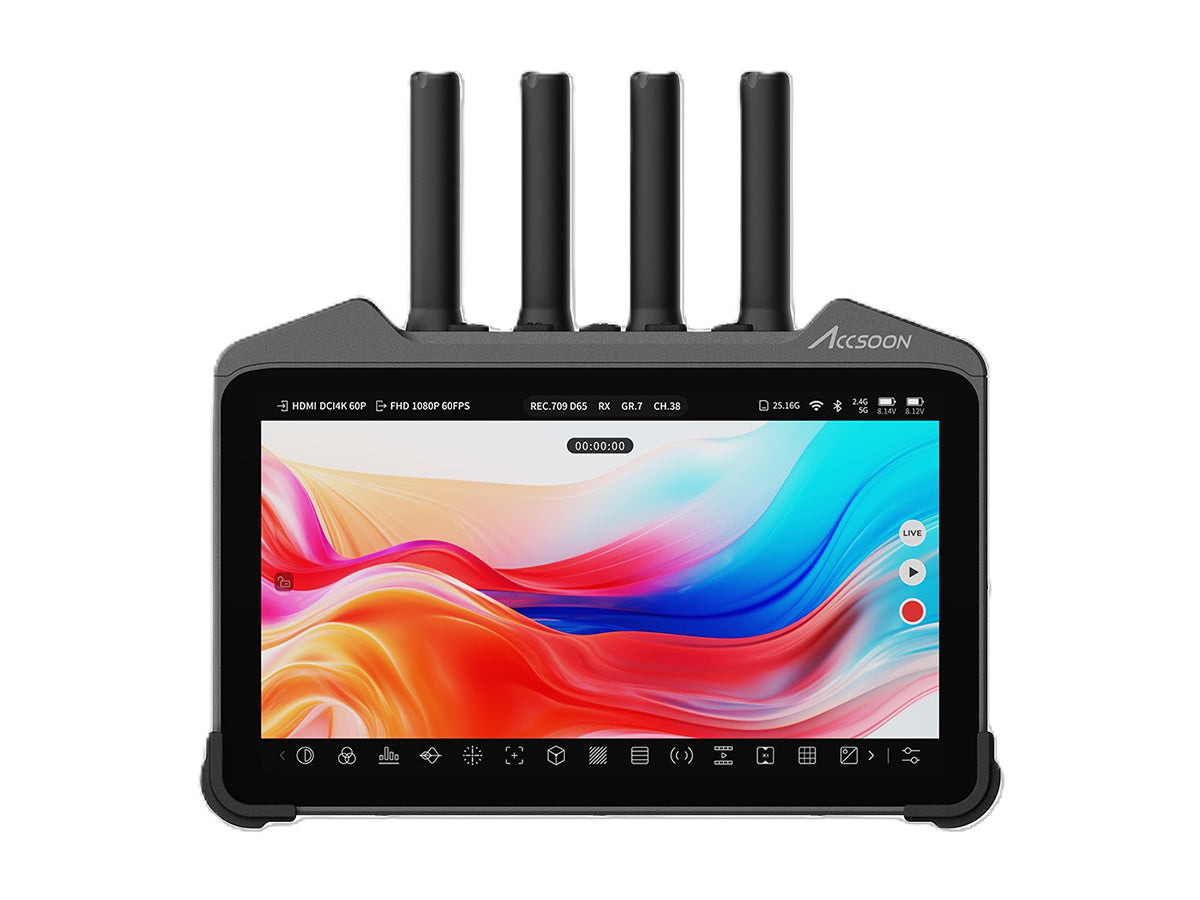

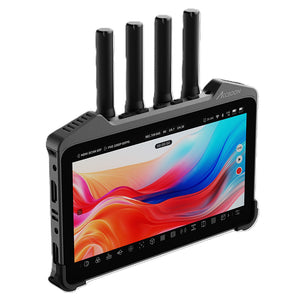

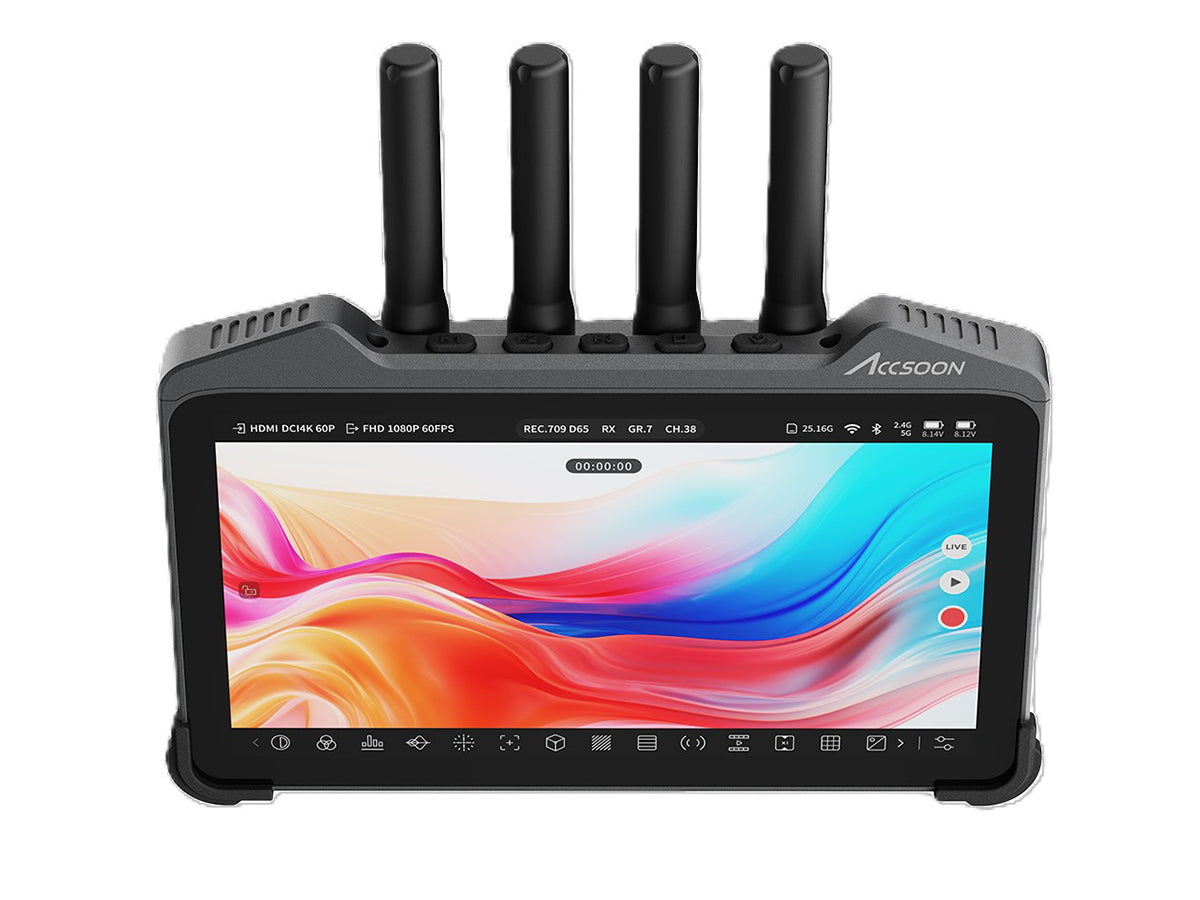

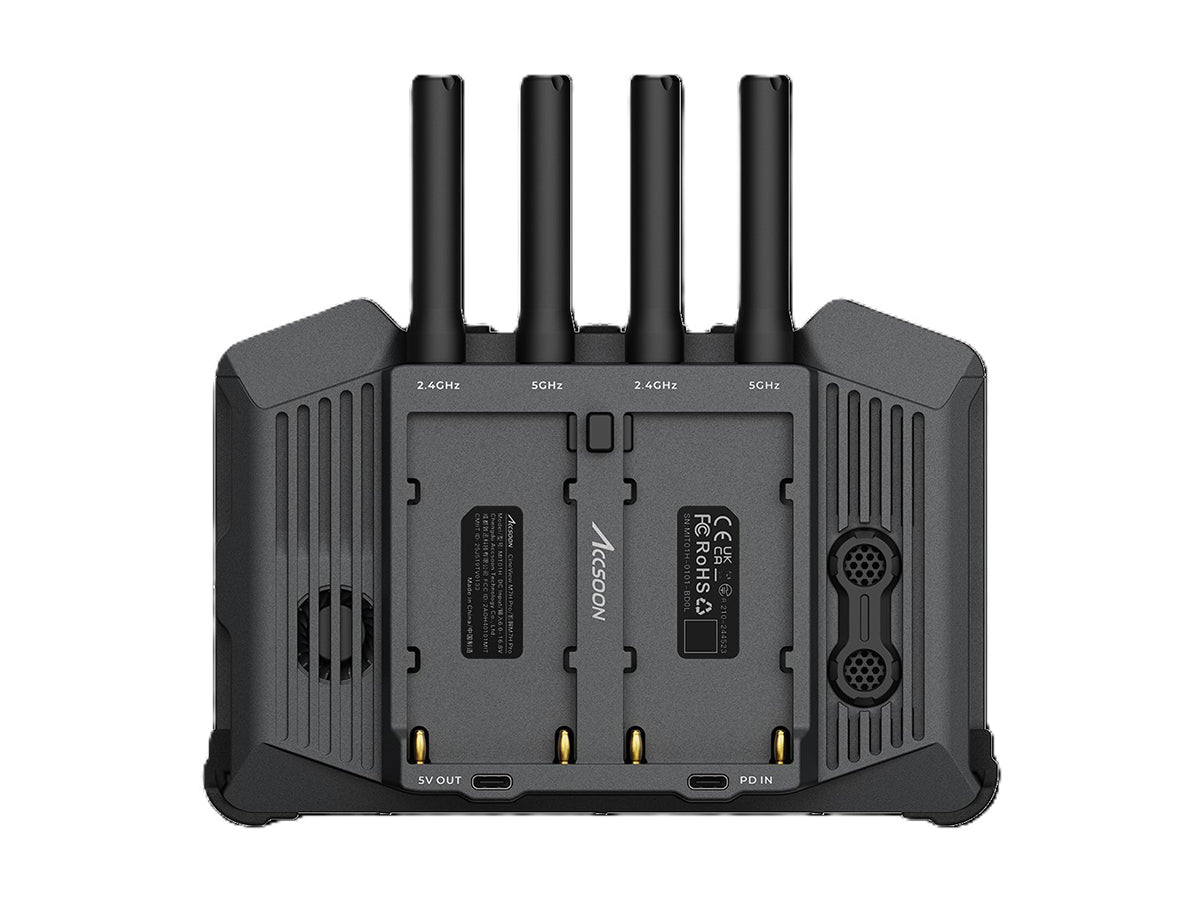

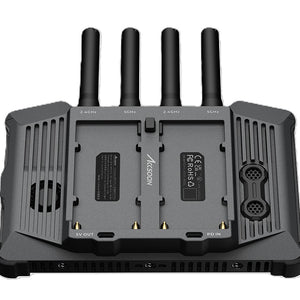

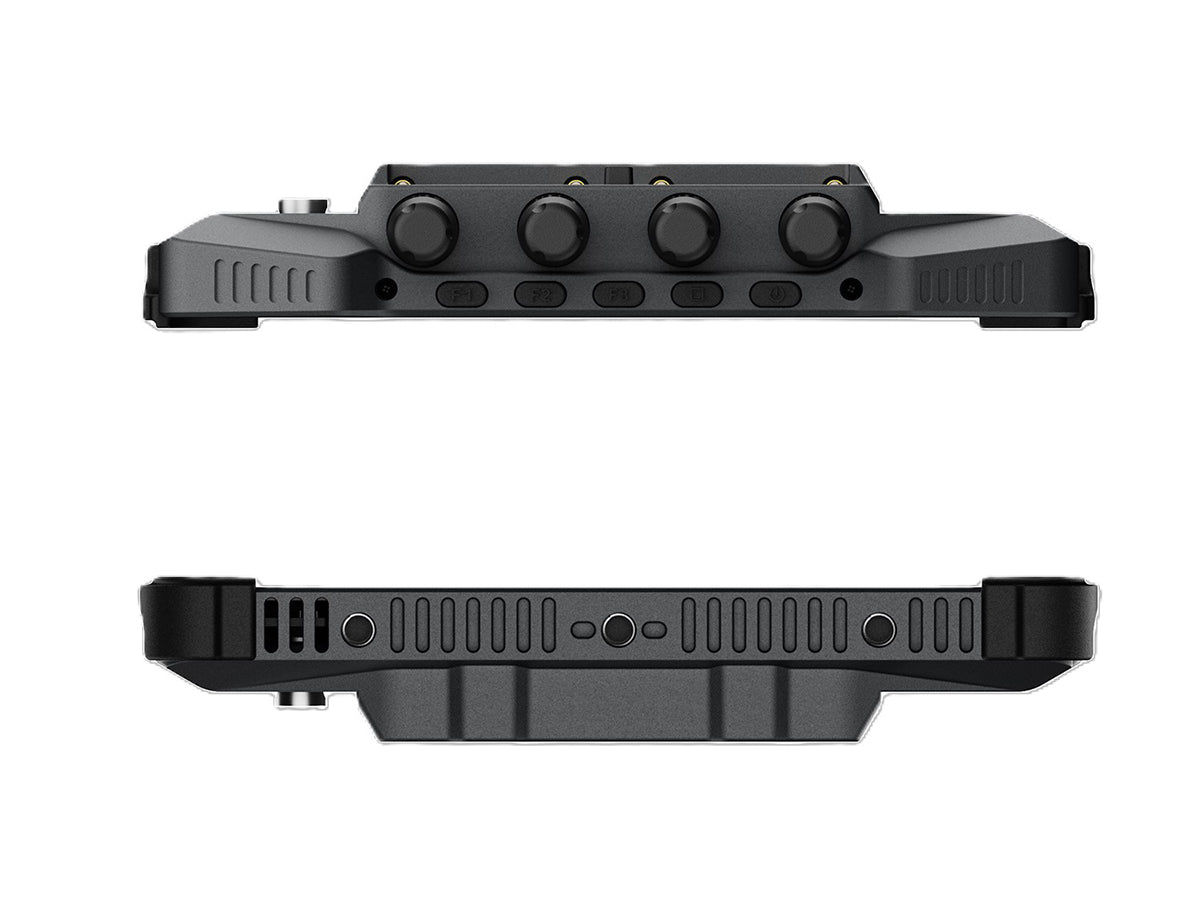

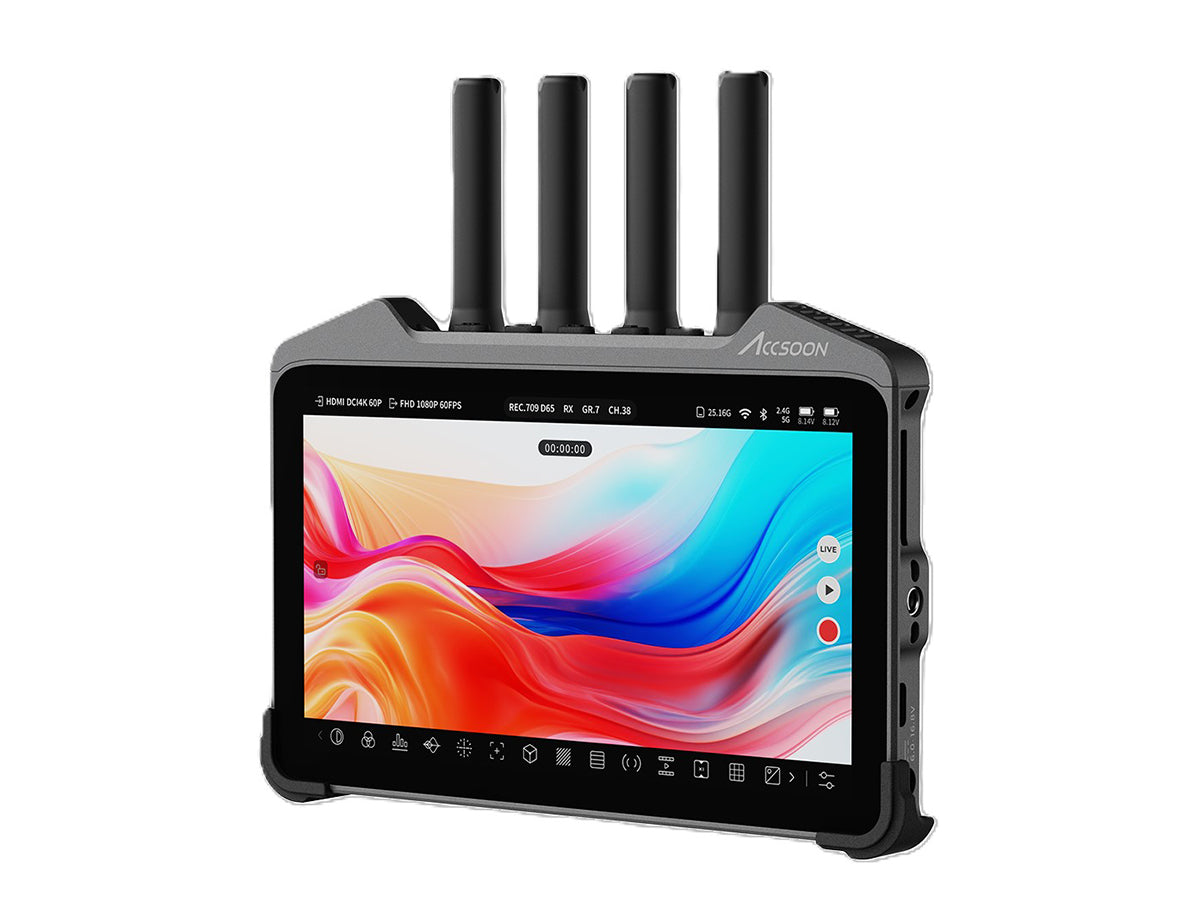

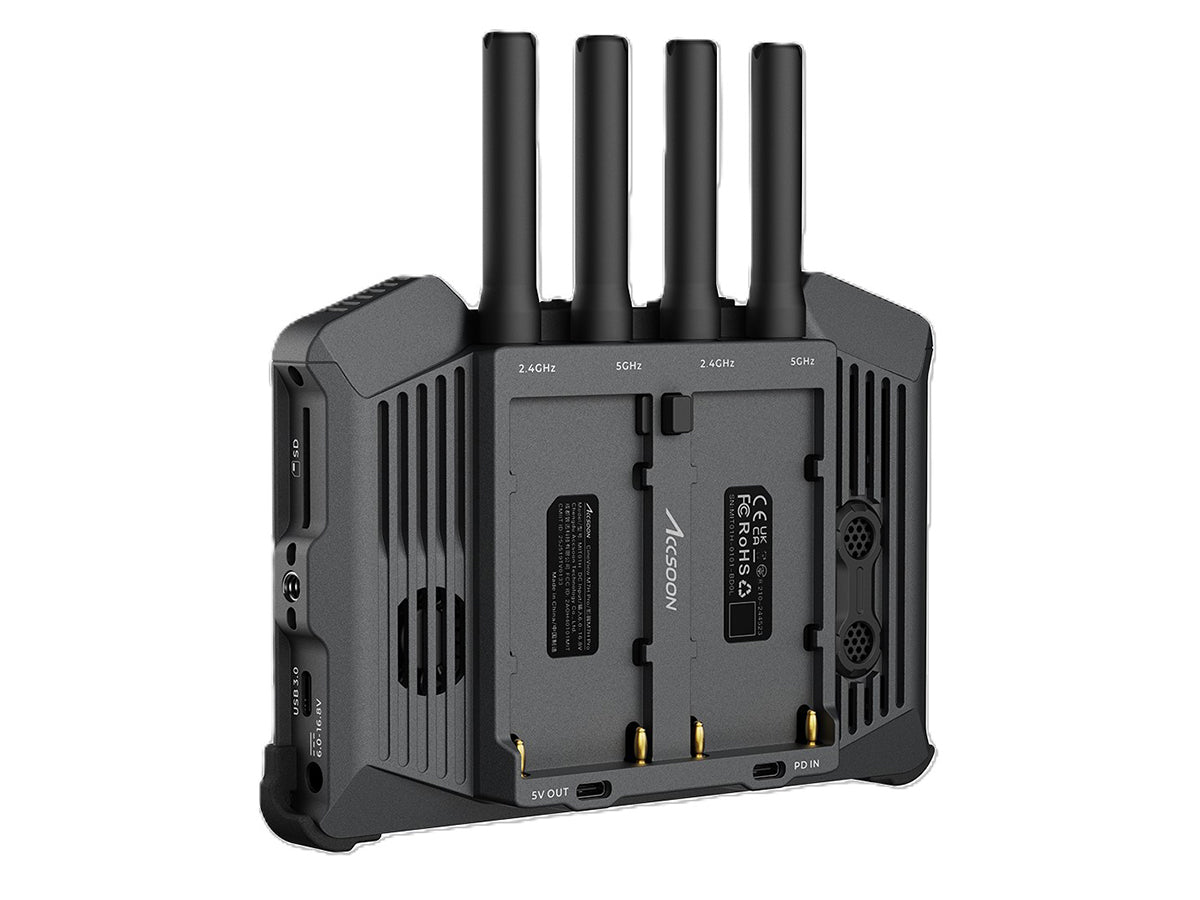

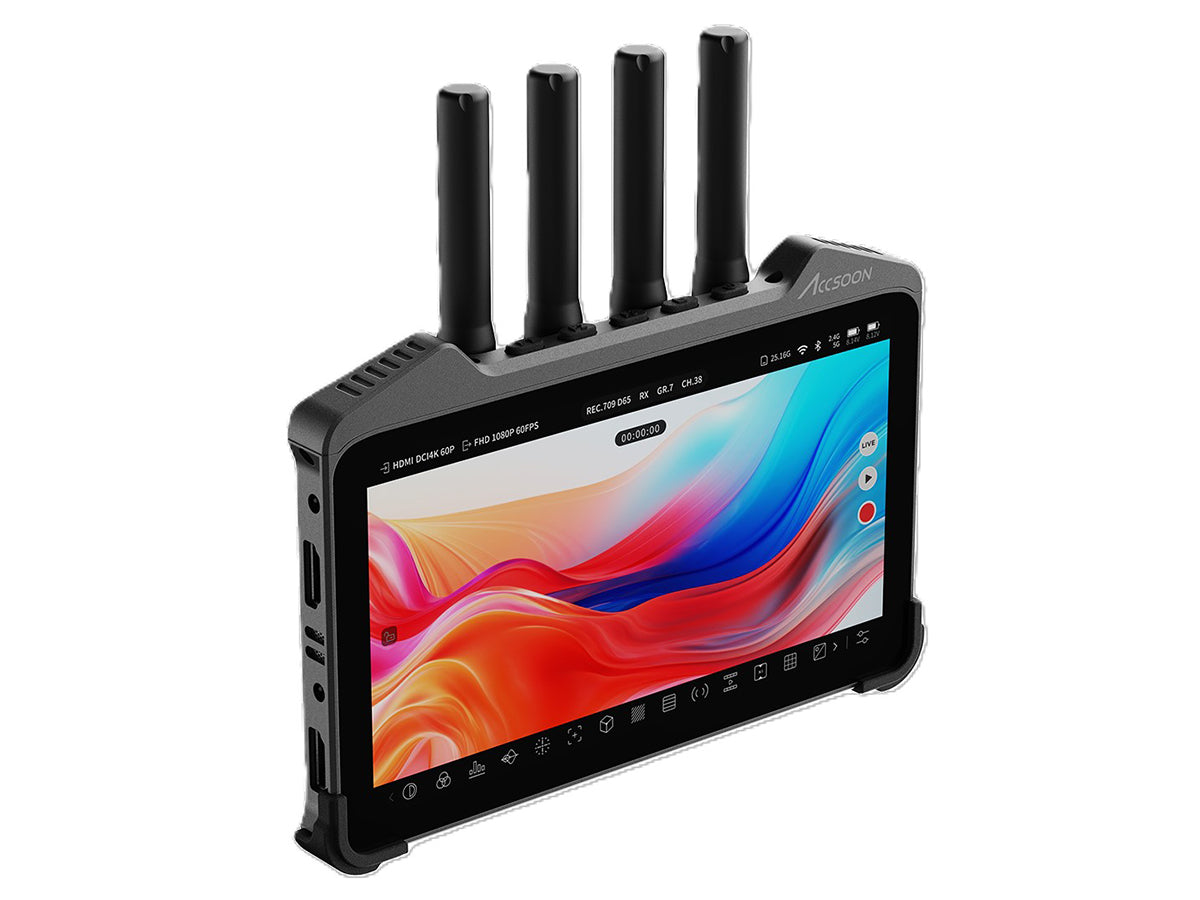

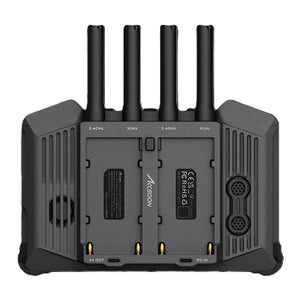

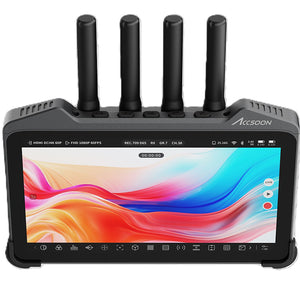

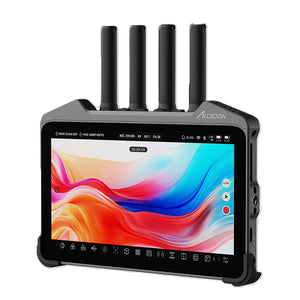

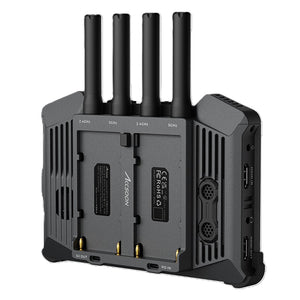

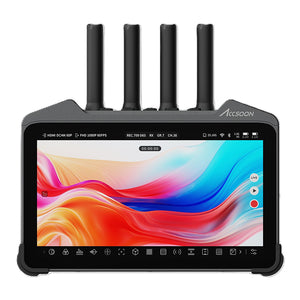

Accsoon CineView M7H Pro
Accsoon CineView M7H Pro
SKU:
ACC-MIT02
Regular price
£540.00 GBP ex VAT
£648.00 GBP inc VAT
£648.00 GBP inc VAT
Regular price
ex VAT
Sale price
£540.00 GBP ex VAT
£648.00 GBP inc VAT
Unit price
per
£648.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Master Colour Accuracy
Stunning, colour-accurate professional 7-inch monitors crafted for professional uses.
Edge-Lit Backlight System, for Precise Bright & Dark Control
Achieving high brightness is easy, but maintaining accurate colours is challenging. CineView M7 series features a 1000:1 ultra-high contrast ratio combined with a fully laminated high-transmittance display, effortlessly handling both dark and bright scenes. Built with Edge-Lit backlight system with intelligent brightness control enables pixel-level precision, delivering true-to-life colour reproduction without distortion.
High Bright Fully Laminated Display - True Colours Under Direct Sunlight
CineView M7 series is equipped with high transparency screen, enhanced by exclusive DXC coating, increasing light transmittance to99%while significantly reducing reflectivity. Even in bright outdoor environments, the screen maintains exceptional clarity and colour accuracy.
All in One Wireless Workstation
CineView M7 Series features integrated long-range wireless video transmitter and receiver capabilities, seamlessly connecting to any Accsoon CineView transmitter. It leverages Accsoon’s patented Dual-Band transmission technology for ultra-low latency wireless monitoring. Nail every shot with cinematic grade tools like LUT box, false colour and waveforms-all controlled through customizable buttons.
Compatibility with CineView TX/RX system*up to Dcl 4K60 wireless monitoring
In RX mode: can receive from CineView M7 Pro (TX) /M7H Pro (TX) or Master 4K / HE / SE / 2SDl.In TX mode: can transmit to CineView M7 Pro (RX) /M7H Pro (Rx) / Master 4K, mobile devices.
One Step Ahead Redefining Smart Monitoring
CineView M7 Series powered by 8K high-performance processors and a smart operating system, is designed to adapt to the evolving needs of modern production.
On-set Monitoring, Reimagined
CineView M7 Series delivers cinematic standard calibrated colour with 127-point 3D LUT precision. Its LUT Box function enables multi-screen colour consistency via SDI/HDMI outputs, revolutionizing on-set colour workflow.
Format Conversion Flexibility
Engineered with groundbreaking architecture, CineView M7 Series delivers high processing ability to handle 961+ video format combinations effortlessly - from 4K60 to 1080P, even different frame rate outputs.
- Cinema Grade Colour Accuracy
- High Bright Fully Laminated Low Reflection Screen
- DCI 4k60 Input & Out
- Built in Wifi for Live Streaming, Camera to Cloud
- Support external microphone and headphone with extra media access: SD Cards, USB 3.0 flash drive and SSD
| Display Screen: | 7" LCD |
| Touchscreen: | Ultra high resolution capacitive touchscreen |
| Resolution: | 1920 × 1080 pixels |
| PPI: | 323 |
| Aspect Ratio: | 16:9 |
| Brightness: | 1000 nits |
| Contrast Ratio: | 1000:1 |
| Viewing Angle: | 176°/176° |
| Backlight Type: | Edge-Lit Ultra-transparent LED Backlight |
| Screen Colour Calibration: | Supported |
| LUT: | 1D and 3D Cube LUTs Supported 1D: up to 4096 points 3D: up to 127 points |
| Video Input Port: | HDMI® 2.0 |
| Video Output Port: | HDMI® 2.0 |
| HDMI Video Input Format: | 4K DCI (4096×2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD (3840×2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 |
| HDMI Video Output Format: | 4K DCI (4096×2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD (3840×2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 |
| DC Port: | 6.0~16.8V 5.5mm×2.1mm Center Positive |
| Compatible Battery: | Compatible with NP-F550, NP-F750, NP-F970 Batteries |
| USB-C Power Input Port: | PD3.0 9V/3A, 12V/3A, 15V/3A |
| USB-C Power Output Port: | Maximum: 5V/2A |
| Microphone Jack: | 3.5mm TRS |
| Headphone Jack: | 3.5mm CTIA |
| Microphone Input Audio Sampling: | 16bit, 48KHz |
| Power Consumption: | 12W–28W (Varies according to actual usage) |
| Housing: | Aircraft-grade Aluminium Alloy |
| Heat Dissipation: | Active + Passive Cooling |
| Wireless Transmission Latency: | 60ms |
| Wireless Transmission Distance: | Dual-Band Connection: 350 meters |
| Work Environment Temperature: | –10°C – 40°C |
| Dimensions: | 494.3g |
| Weight: | 182.2×120.7×31.5mm |
- 1x Accsoon CineView M7H Pro
- 4x 2.4Ghz/5Ghz Antenna
- 1x User Manual
