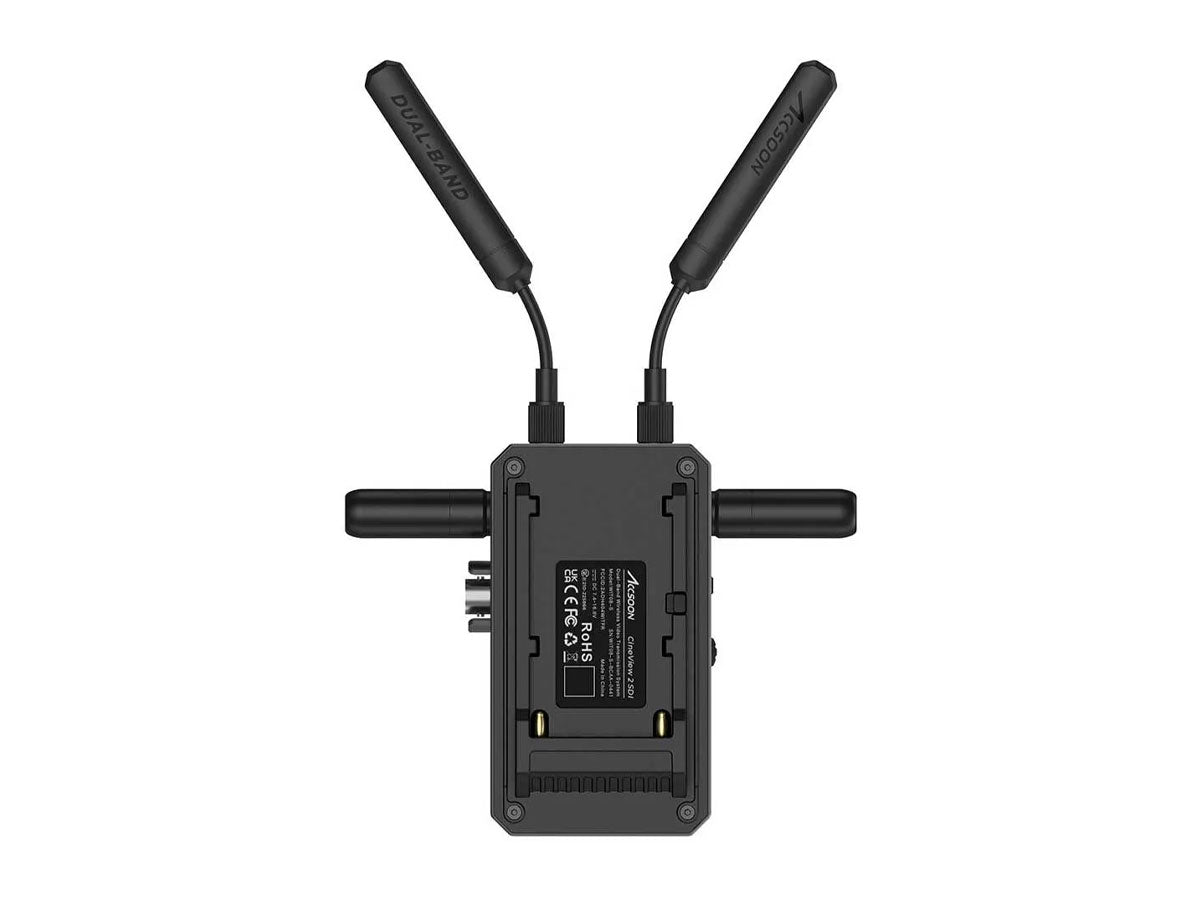

Accsoon CineView 2 SDI - RX
Accsoon CineView 2 SDI - RX
£238.80 GBP inc VAT
£238.80 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications

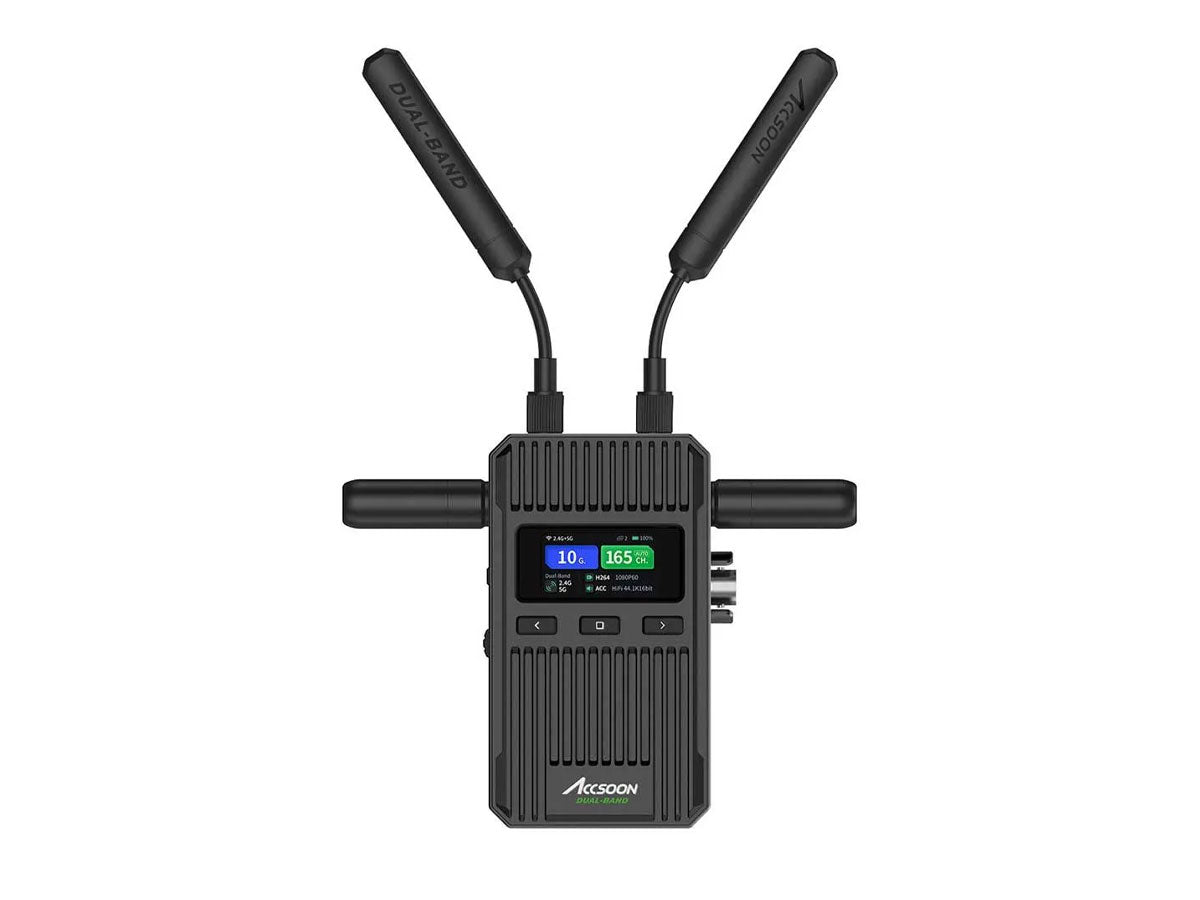

Accsoon CineView 2 SDI TX/RX
1500ft range 1080P wireless video transmission system
Stability with a Longer Range
The CineView 2 is the latest addition to Accsoon esteemed CineView product family. Expanding on Accsoon US patented 2.4GHz+5GHz Dual-Band technology and featuring an all-new antenna design, the CineView 2 can seamlessly transmit 1080P 60fps video and audio signals across a 1500ft (450m) line of sight range, all while maintaining an impressively low latency of under 50ms.
Dual-Band Stable Connection With A Longer Range - Market Proved Wireless Stability
Leveraging our Dual-Band transmission technology and the all-new antenna design, CineView 2 ensures a stable connection even over longer distances.
New Antenna Design, Stronger Signal
Accsoon continues to push the limits of stable wireless transmission. With the benefits from the newly designed antennas, the CineView 2 surpasses the performance of the CineView SE/HE by extending the transmission range even further, now reaching an impressive 1500 feet.
Compact Design, Smaller Than Ever
Easier to carry, faster to rig.
Monitor On Up To Four Devices
Each CineView 2 transmitter can wirelessly send the video to any combination of dedicated CineView receiver units and smart devices ( both iOS and Android ) totaling up to four.
No Fan Noise, Quiet Shooting
Classic CineView design, ensuring efficient heat dissipation, quiet shooting with no fan noise.
Cross-Compatibility with Other CineView Models
CineView 2 are backwards compatible with the current CineView SE, HE and Quad models, allowing users to mix and match these as required.
- Dual-band (2.4G + 5G) WiFi simultaneoustransmission, stronger anti-interference
- Transmission range up to 1500ft/450m
- Latency less than 50ms
- RX: SDI/HDMI output and UVC out
- 1 TX to 4RX / Apps, mixed and match
- New full-color display
- Video input & output support up to 1080p60fps
- Cross-Compatibility with CineView SE/HE/Quad
- Professional monitoring App Accsoon SEE for iOS andAndroid
- Power by DC source and NP-F battery and USB-C
- Automatic channel selection for optimal transmission
- Group pairing knob on TX & RX
| RECEIVER | |
| Video Output: | HDMI, 3G SDI, UVC |
| SDI Output Format: | 1080p: 24/25/30/50/60p Level A 1080i: 50/60i 720p: 50/60p |
| HDMI Output Format: | 1080p: 24/25/30/50/60p 1080i: 50/60i 720p: 50/60p |
| DC Port: | 5.5mm x 2.1mm, center positive |
| DC Voltage: | 7.4~16.8V |
| Battery: | Compatible with NP-F550, NP-F750, NP-F970 |
| USB-C Power Input: | USB-C 5V/3A |
| Audio: | 44.1KHz/48KHz 16/20/24bit |
| Latency: | <50ms (Camera latency not included) |
| Display: | 1.47 inch Full-Color LCD Screen |
| Transmission Power: | 2.4GHz: 20dBm 5GHz: 20dBm |
| Transmission Range: | 1500ft/450m (No obstacles, no interference) |
| Power Consumption: | <5W |
| Operating Environment Temperature: | -10~40℃ |
| Dimensions: | 60mm x 27.5 mm x 106.5mm |
| Weight: | 210g |
